Tractor · 1972Unverified

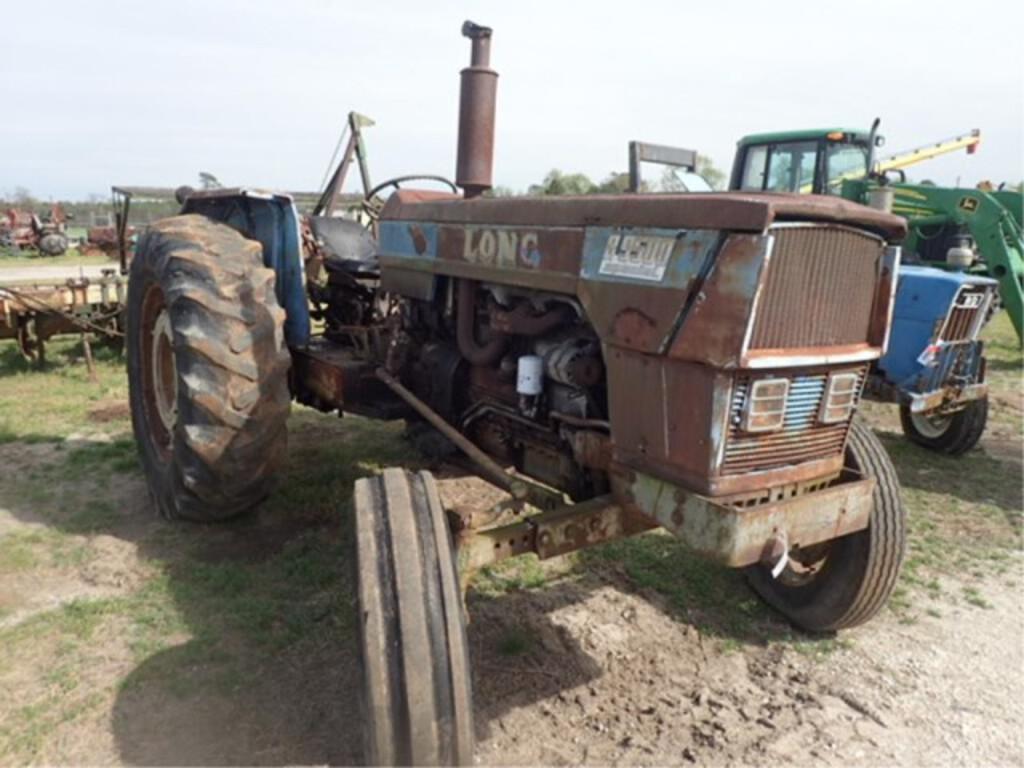

Long R9500
Long R9500 — Row-Crop tractor · 98 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
98 hp
Max power
59.4 kW
Weight
3705 kg
Hover a source tag to verify
Overview
DistributorLongReference
ManufacturerLandiniReference
Row-Crop tractorReference
Built in Reggio Emilia, ItalyReference
Steeringpower assistReference
Independent disc brakesReference
Open operator station. Cab optional.Reference
Engine
Perkins 5.8L 6-cyl dieselReference
Drawbar (claimed)59.4 kWReference
Drawbar (tested)59.4 kWReference
PerkinsReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Compression16:1Reference
Rated RPM2250Reference
Starter volts12Reference
Power at rated engine speed72.9 kWReference
Max power59.4 kWReference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)72.9 kWReference
PTO (tested)72.9 kWReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type1000 (optional)Reference
Engine RPM540@1800Reference
Engine RPM1000@1890Reference
Power at rated PTO speed65.7 kWReference
Dimensions
Wheelbase239 cmReference
Weight3705 kgReference
Front tire9.50-20Reference
Rear tire16.9-34Reference
Ag front9.50-20Reference
Ag rear16.9-34Reference
Ag rear18.4-34Reference
Length381 cmReference
Height (hood)158 cmReference
Operating weight3705 kgReference
Ballasted weight6214 kgReference
Front tread143 to 189 cmReference
Rear tread144 to 205 cmReference
Test results
Diesel 12-speed 2WDSeptember 13 - 19, 1972Link: Nebraska Tractor Test 1107 fileReference
PTO performanceReference
Fuel use23.8 l/hourReference
Fuel use20.4 l/hourReference
Drawbar performanceReference
Fuel use23.1 l/hourReference
Gear 8 used for power test.Reference
Max pull4633 kgReference
Gear 4 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
