Tractor · 2009Unverified

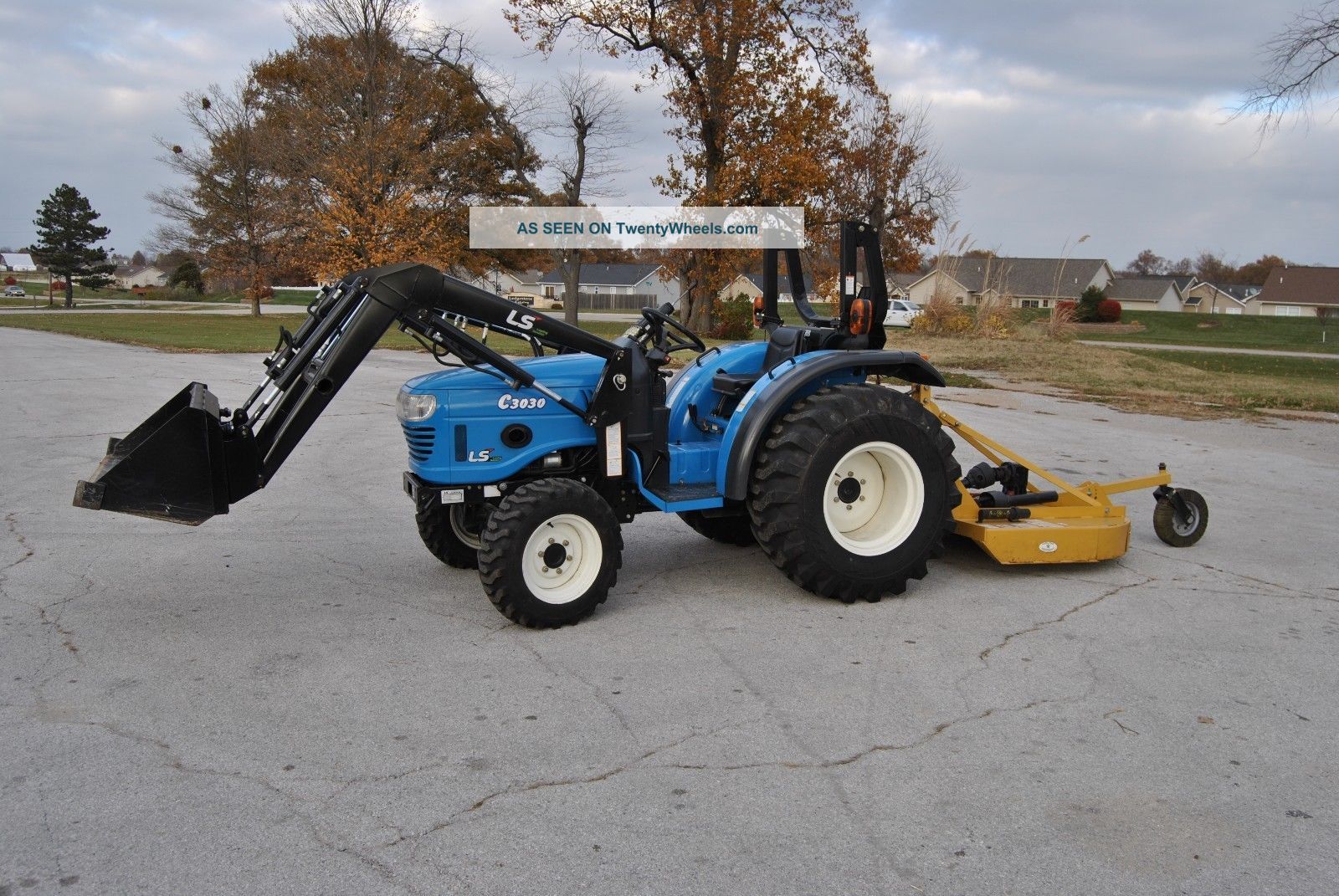

LS C3030
LS C3030 — Compact Utility tractor · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Weight
1359 kg
Hover a source tag to verify
Overview
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Mitsubishi 1.8L 4-cyl dieselReference
Fuel tank37.9 LReference
Engine (gross)21.3 kWReference
Mitsubishi S4L2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke78 x 92 mmReference
Power (gross)21.3 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchro shuttleReference
Typesynchro shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)17.9 kWReference
Valves2Reference
Pump flow32.6 lpmReference
Total flow51.5 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift978 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase160 cmReference
Weight1359 kgReference
Front tire8-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 8-16. Rear: 12.4-24Reference
Lawn/turf front27x8.5-15Reference
Lawn/turf rear41x14x20Reference
Industrial front28x8.5-15Reference
Industrial rear43x16-20.4Reference
Length332 cmReference
Height (ROPS)208 cmReference
LS C3030 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
LS LB2500 Backhoe
Backhoe typeLS LB2500 BackhoeReference
Digging depth203 cmReference
Reach from pivot279 cmReference
Loading height162 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force929 kgReference
Dipperstick force542 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
