Tractor · 2011Unverified

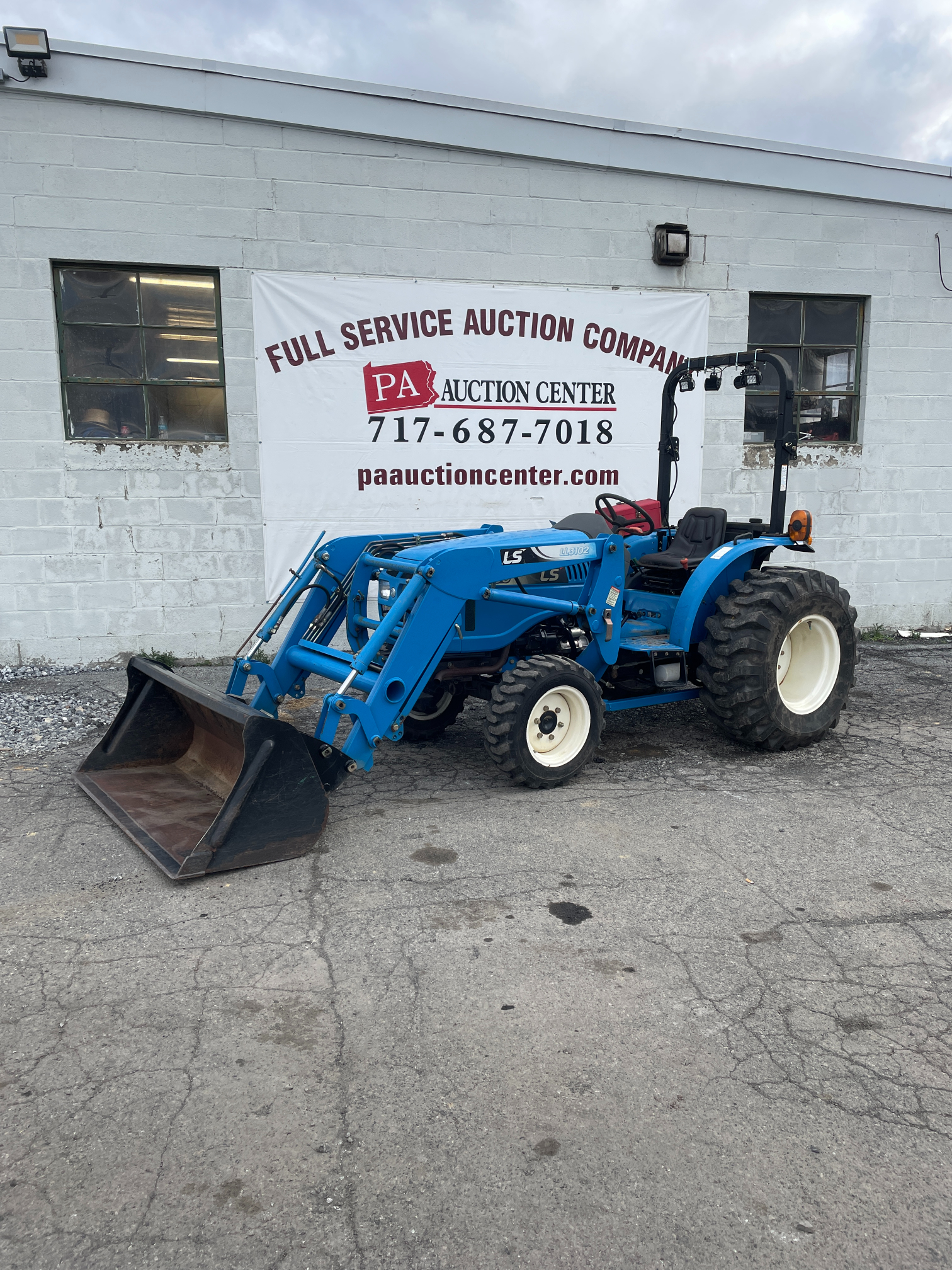

LS G3033
LS G3033 — G Series · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
1220 kg
Hover a source tag to verify
Overview
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
LS 1.9L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine (gross)24.6 kWReference
LS L3BLReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke88 x 105 mmReference
Power (gross)24.6 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchro shuttleReference
Typesynchro shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)20.1 kWReference
Pump flow28.0 lpmReference
Total flow45.0 lpmReference
Steering flow17.0 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift820 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase167 cmReference
Weight1220 kgReference
Front tire7-14Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference
Lawn/turf front25x8.5-14Reference
Lawn/turf rear41x14-20Reference
Industrial front25x8.5-14Reference
Industrial rear43x16-20Reference
Length298 cmReference
Width108 cmReference
Height (ROPS)229 cmReference
LS G3033 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
LS LB1102 Backhoe
Backhoe typeLS LB1102 BackhoeReference
Digging depth193 cmReference
Reach from pivot287 cmReference
Loading height161 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1277 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
