Tractor · 2011Unverified

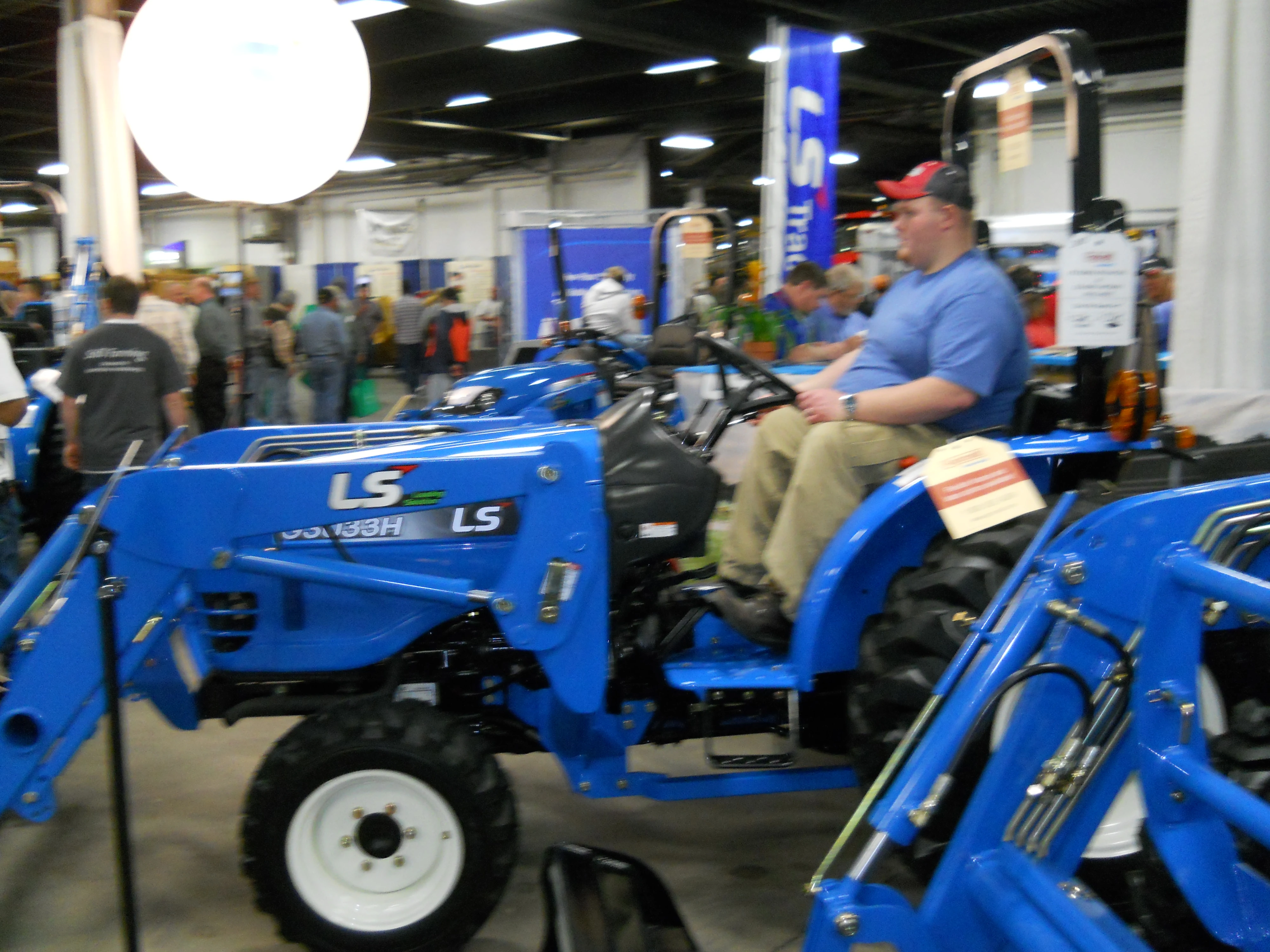

LS G3033H
LS G3033H — G Series · 33 hp. Reference specifications; pending source verification.
The LS G3033H is a tractor with a rated power output of 33 hp, positioning it at the lighter end of its class. Manufactured in 2011, the G3033H features a 3-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. The operating weight of the tractor is 1229 kg, and it is suitable for operations on up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
1229 kg
Catalogue coverage
Variants represented
2
Richest spec table
58 rows
Recorded power
33 hp
Recorded weight
1229 kg
Transmissions
hydrostatic
Production years
2011-2011
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
LS 1.9L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine (gross)24.6 kWReference
LS L3BLReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke88 x 105 mmReference
Power (gross)24.6 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)19.4 kWReference
Pump flow28.0 lpmReference
Total flow45.0 lpmReference
Steering flow17.0 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift820 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase167 cmReference
Weight1229 kgReference
Front tire7-14Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference
Lawn/turf front25x8.5-14Reference
Lawn/turf rear41x14-20Reference
Industrial front25x8.5-14Reference
Industrial rear43x16-20Reference
Length298 cmReference
Width108 cmReference
Height (ROPS)229 cmReference
LS G3033H attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
LS LB1102 Backhoe
Backhoe typeLS LB1102 BackhoeReference
Digging depth193 cmReference
Reach from pivot287 cmReference
Loading height161 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1277 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
