Tractor · 2011Unverified

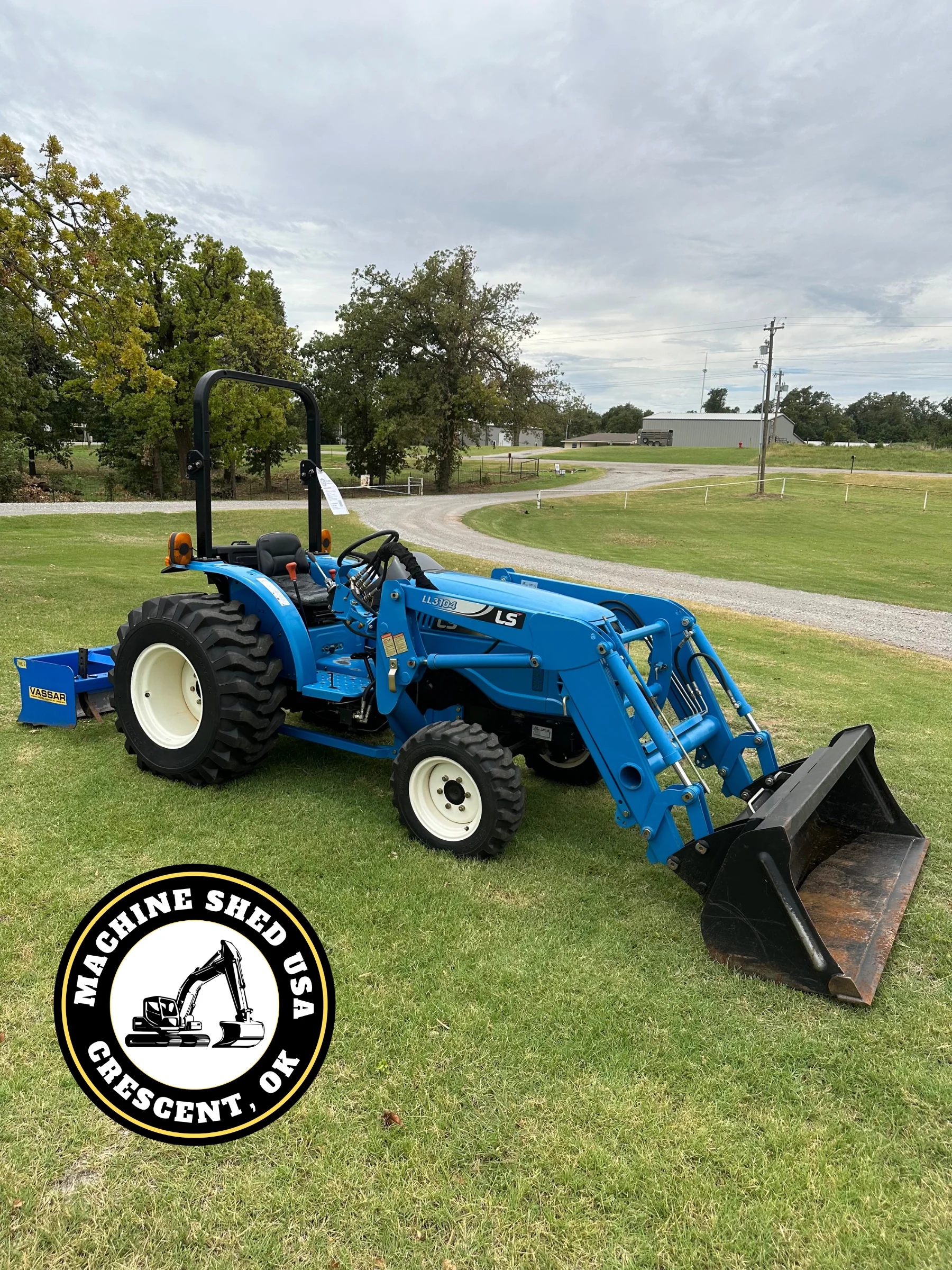

LS G3038
LS G3038 — G Series · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
2610 to 2690 pounds
Hover a source tag to verify
Overview
ManufacturerLSReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
LS 2.0L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine (gross)28.3 kWReference
LS L3ALReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.0 LReference
Bore/Stroke90 x 105 mmReference
Power (gross)28.3 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchro shuttleReference
Typesynchro shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)23.9 kWReference
Pump flow28.0 lpmReference
Total flow45.0 lpmReference
Steering flow17.0 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift820 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
2WD Wheelbase166 cmReference
4WD Wheelbase167 cmReference
Weight2610 to 2690 poundsReference
Front tire6-16Reference
Rear tire12.4-24 (2WD)Reference
Standard tires (ag)Front: 6-16. Rear: 12.4-24 (2WD)Reference
Standard tires (ag)Front: 7-14. Rear: 11.2-24 (4WD)Reference
Lawn/turf front25x8.5-14Reference
Lawn/turf rear41x14-20Reference
Industrial front25x8.5-14Reference
Industrial rear43x16-20Reference
Length298 cmReference
Width108 cmReference
2WD Height (ROPS)231 cmReference
4WD Height (ROPS)229 cmReference
2WD Weight1183 kgReference
4WD Weight1220 kgReference
LS G3038 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
LS LB1102 Backhoe
Backhoe typeLS LB1102 BackhoeReference
Digging depth193 cmReference
Reach from pivot287 cmReference
Loading height161 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1277 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
