Tractor · 2009Unverified

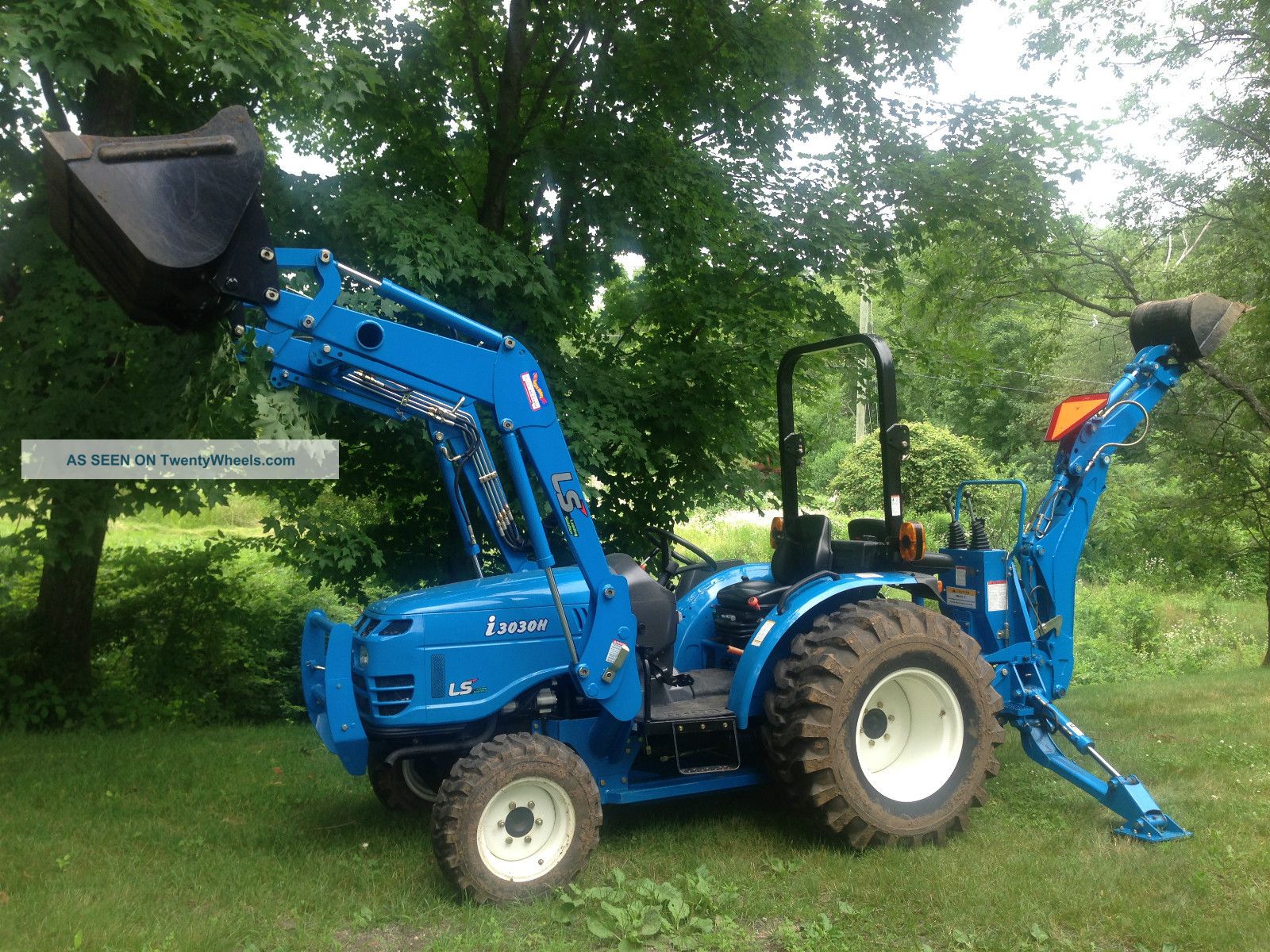

LS i3030
LS i3030 — i Series · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Weight
1261 kg
Hover a source tag to verify
Overview
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post ROPS.Reference
Variants
i3030shuttleReference
i3030HhydrostaticReference
Engine
Mitsubishi 1.5L 4-cyl dieselReference
Fuel tank31.8 LReference
Engine (gross)21.3 kWReference
Mitsubishi S4LReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke78 x 78 mmReference
Power (gross)21.3 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchro shuttleReference
Typesynchro shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)17.2 kWReference
Valves0 to 2Reference
Pump flow31.0 lpmReference
Total flow46.6 lpmReference
Steering flow15.5 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift820 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase166 cmReference
Weight1261 kgReference
Front tire7-14Reference
Rear tire11.2-24Reference
Weight244 kgReference
Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference
Lawn/turf front25x8.5-14Reference
Lawn/turf rear43x14-20Reference
Industrial front25x8.5-14Reference
Industrial rear43x16-20.4Reference
Length298 cmReference
Width136 cmReference
Height (ROPS)231 cmReference
LS i3030 attachments
66" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Attachment overview
66" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
66" Mower deck
Typemid-mount LM3500Reference
Type3-bladeReference
Cutting width167 cmReference
Overall width205 cmReference
Cut height2 to 10 cmReference
LS LB2100 Backhoe
Backhoe typeLS LB2100 BackhoeReference
Digging depth227 cmReference
Reach from pivot317 cmReference
Loading height183 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1277 kgReference
Dipperstick force954 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
