Tractor · 2009Unverified
LS i3040
LS i3040 — i Series · 39 hp. Reference specifications; pending source verification.

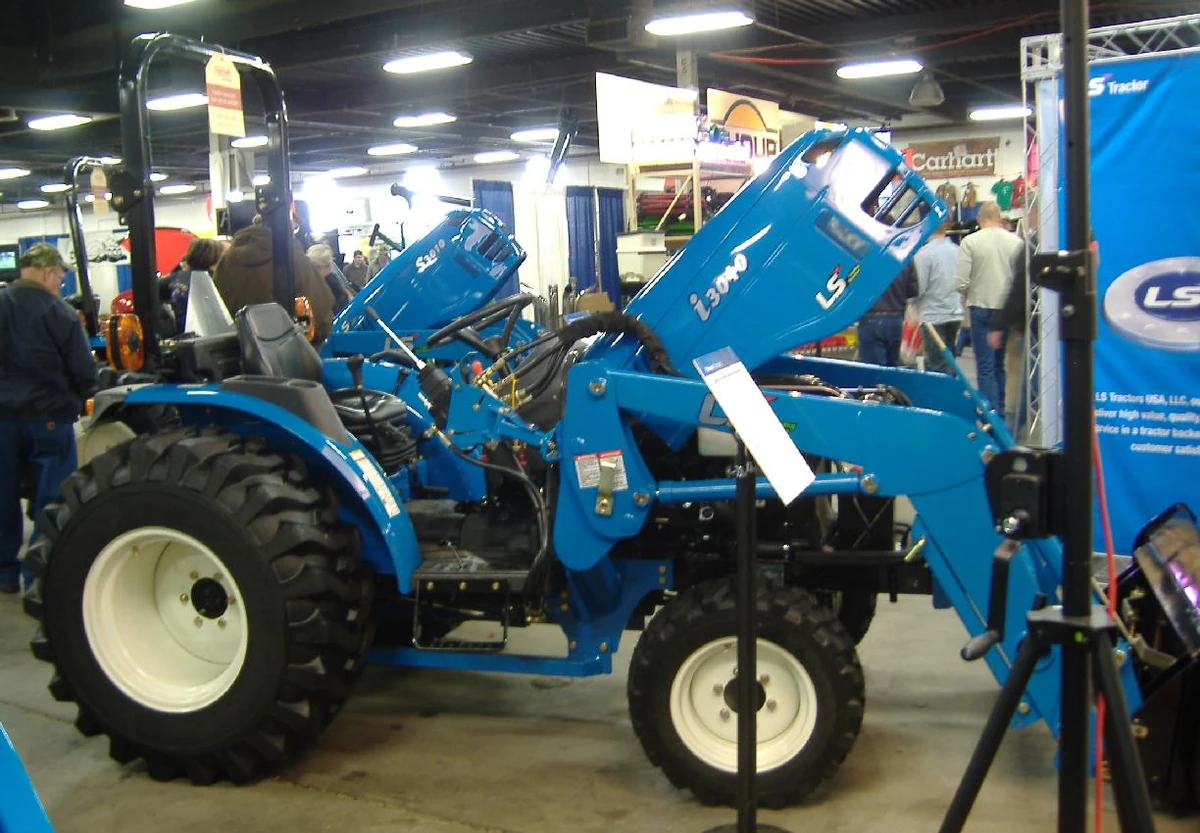

The LS i3040 is a compact tractor rated at 39 hp. Manufactured from 2009 to 2010, it is powered by a 4-cylinder diesel liquid-cooled engine, which drives the four-wheel drive system via a hydrostatic transmission. The listed weight of the LS i3040 is 1261 kg, and it is designed for use on areas of up to 200 ac. Detailed specifications are provided below.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Weight
1261 kg
Catalogue coverage
Variants represented
2
Richest spec table
71 rows
Recorded power
39 hp
Recorded weight
1261 kg
Transmissions
12-speed synchro shuttle
Production years
2009-2010
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post ROPS.Reference
Variants
i3040shuttleReference
i3040HhydrostaticReference
Engine
Mitsubishi 1.8L 4-cyl dieselReference
Fuel tank31.8 LReference
Engine (gross)28.7 kWReference
Mitsubishi S4L2Reference
indirect injection dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke78 x 92 mmReference
Power (gross)28.7 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchro shuttleReference
Typesynchro shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)23.1 kWReference
Pump flow32.6 lpmReference
Total flow48.8 lpmReference
Steering flow16.3 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift820 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase166 cmReference
Weight1261 kgReference
Front tire7-16Reference
Rear tire12.4-24Reference
Weight244 kgReference
Standard tires (ag)Front: 7-16. Rear: 12.4-24Reference
Lawn/turf front25x8.5-14Reference
Lawn/turf rear41x14x20Reference
Industrial front25x8.5-14Reference
Industrial rear43x16-20Reference
Length298 cmReference
Width137 cmReference
Height (ROPS)235 cmReference
LS i3040 attachments
66" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Attachment overview
66" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
66" Mower deck
Typemid-mount LM3500Reference
Type3-bladeReference
Cutting width167 cmReference
Overall width205 cmReference
Cut height2 to 10 cmReference
LS LB2100 Backhoe
Backhoe typeLS LB2100 BackhoeReference
Digging depth227 cmReference
Reach from pivot317 cmReference
Loading height183 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1277 kgReference
Dipperstick force954 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
