Tractor · Unverified

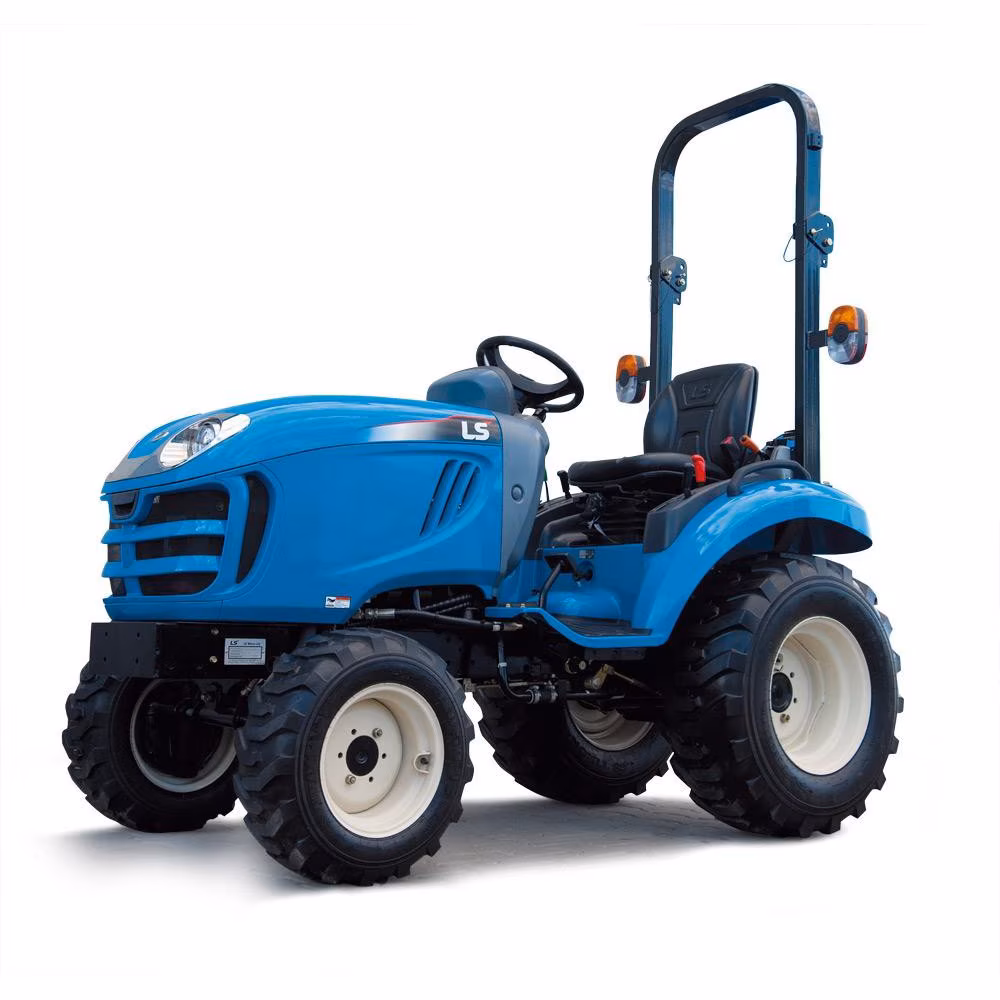

LS J27

Name: LS J27
Brand: LS

LS J27 — J SeriesCompact Utility tractor · 22 hp. Reference specifications; pending source verification.

The LS J27 is a tractor with a rated output of 22 hp, categorising it among the more compact options in its class. Fitted with a 3-cylinder diesel liquid-cooled engine, it features four-wheel drive and a hydrostatic transmission. The listed weight of the LS J27 is 830 kg, making it suitable for tasks involving approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

22 hp

Weight

830 kg

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

22 hp

Recorded weight

830 kg

Transmissions

6-speed gear

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLSReference

Compact Utility tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

ROPS.Reference

Engine

Mitsubishi 1.3L 3-cyl dieselReference

Fuel tank25.0 LReference

Engine20.1 kWReference

Mitsubishi S3L2Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Bore/Stroke78 x 92 mmReference

EmissionsInterim Tier 4Reference

Power20.1 kWReference

Fuel systemindirect injectionReference

Air cleanerdryReference

Rated RPM2700Reference

StarterelectricReference

Starter volts12Reference

Transmission

6-speed gearReference

hydrostaticReference

TypegearReference

Gears6 forward and 2 reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

PTO & Hydraulics

Gear PTO (claimed)16.5 kWReference

Hydro PTO (claimed)15.1 kWReference

Rear valves1Reference

Hydro Pump flow22.0 lpmReference

Gear Pump flow26.1 lpmReference

Hydro Total flow32.6 lpmReference

Gear Total flow30.3 lpmReference

Hydro Steering flow10.2 lpmReference

Gear Steering flow4.2 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift650 kgReference

Rear PTOtransmissionReference

Rear PTOindependentReference

Rear PTO Type540Reference

Mid PTO Type2000Reference

Dimensions

Wheelbase150 cmReference

Weight830 kgReference

Front tire6-12Reference

Rear tire9.5-16Reference

Ag front6-12Reference

Ag rear9.5-16Reference

Length261 cmReference

Width114 cmReference

Height (ROPS)215 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
