Tractor · 2014Unverified

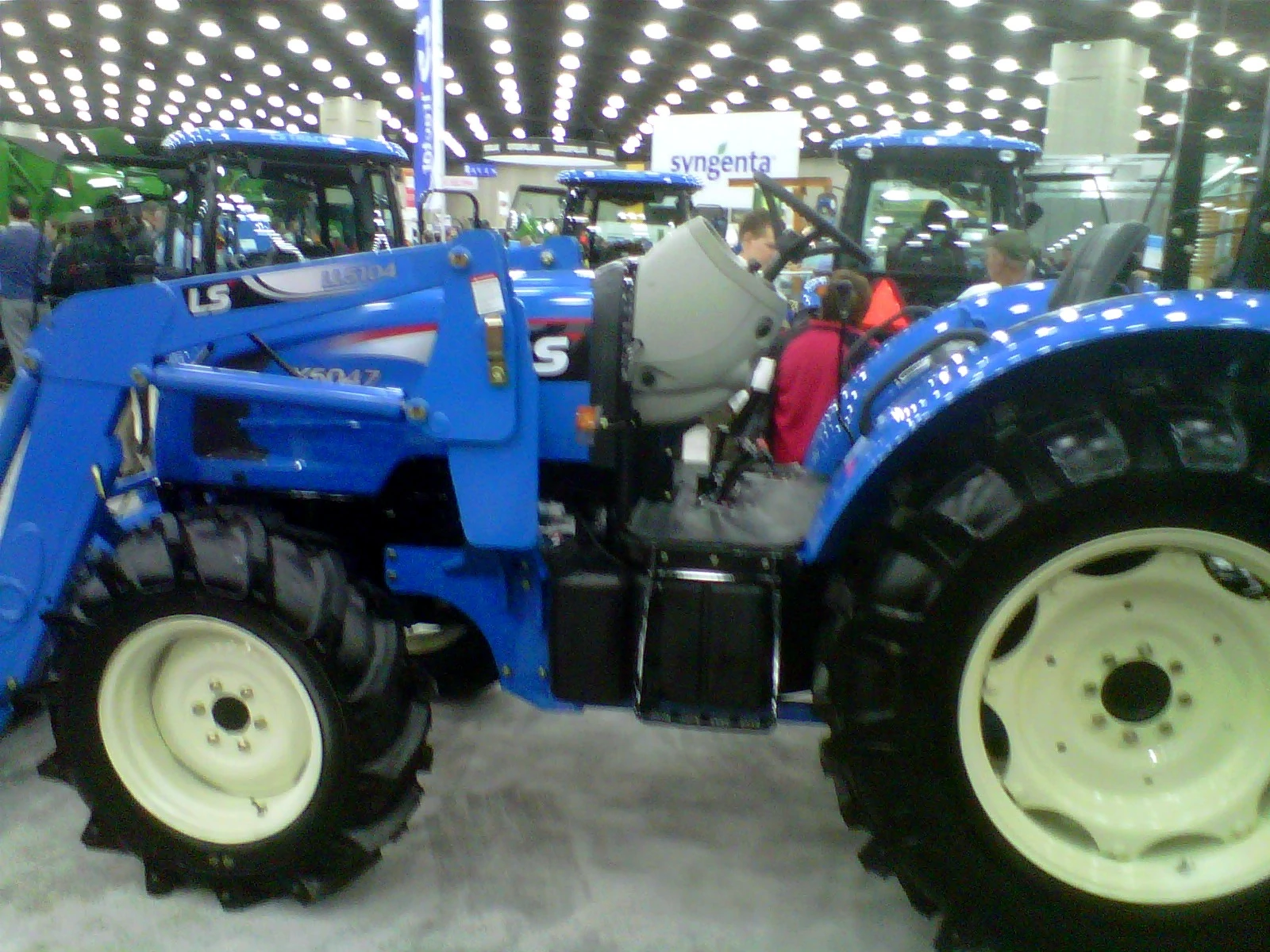

LS K5047
LS K5047 — K Series · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
1992 kg
Hover a source tag to verify
Overview
ManufacturerLSReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
Mitsibishi 2.5L 4-cyl dieselReference
Fuel tank84.8 LReference
Engine (gross)35.0 kWReference
Mitsibishi S4QLReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke88 x 103 mmReference
Power (gross)35.0 kWReference
Fuel systemindirect injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed sliding gearReference
Typesliding gearReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
Pump flow36.3 lpmReference
Total flow54.9 lpmReference
Steering flow18.5 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift1599 kgReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase207 cmReference
Weight1992 kgReference
Front tire11.2-20Reference
Rear tire14.9-30Reference
Standard tires (ag)Front: 11.2-20. Rear: 14.9-30Reference
Industrial front10.5x80-18Reference
Industrial rear18.4-24Reference
Length346 cmReference
Width177 cmReference
Height (ROPS)265 cmReference
LS K5047 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
