Tractor · 2014Unverified

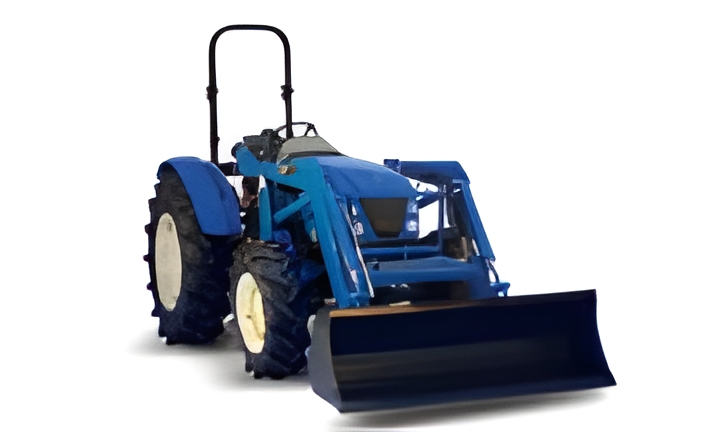

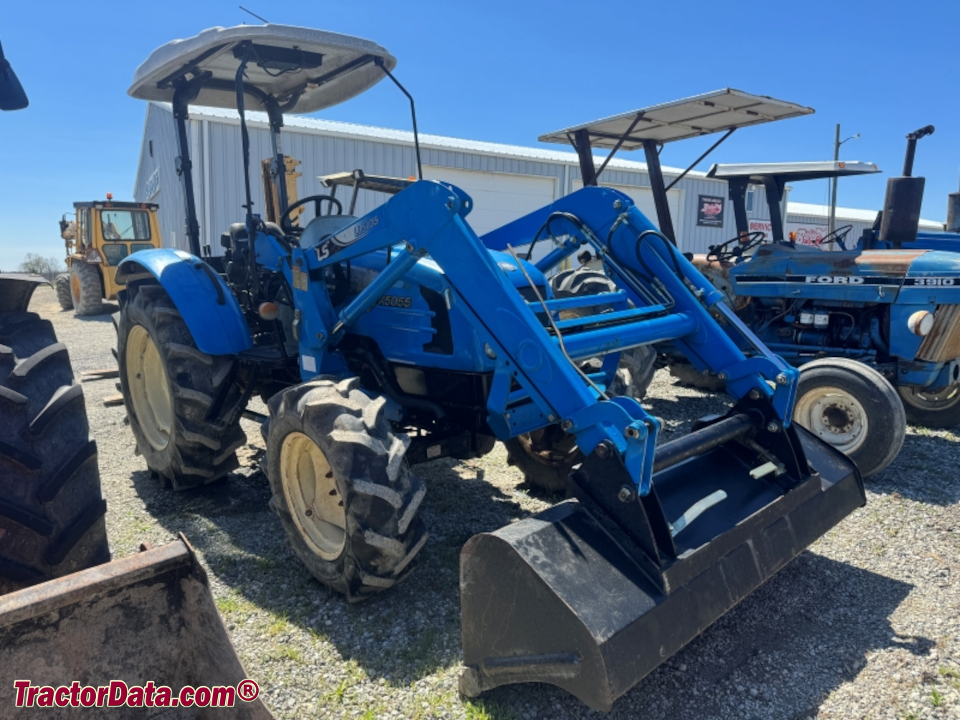

LS K5055
LS K5055 — K Series · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
4076 to 4453 pounds
Hover a source tag to verify
Overview
ManufacturerLSReference
Utility tractorReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
Mitsibishi 3.3L 4-cyl dieselReference
Fuel tank84.8 LReference
Engine (gross)41.0 kWReference
Mitsibishi S4SReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke94 x 120 mmReference
Power (gross)41.0 kWReference
Fuel systemindirect injectionReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed sliding gearReference
Typesliding gearReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)35.8 kWReference
Pump flow37.5 lpmReference
Total flow55.6 lpmReference
Steering flow18.2 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift1599 kgReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase207 cmReference
Wheelbase209 cmReference
Weight4076 to 4453 poundsReference
Front tire7.5-16Reference
Rear tire14.9-30Reference
Standard tires (ag)Front: 7.5-16. Rear: 14.9-30Reference
Length346 cmReference
Width167 cmReference
Width177 cmReference
Height (ROPS)265 cmReference
Weight1848 kgReference
Weight2019 kgReference
LS K5055 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
