Tractor · 2016Unverified
LS MT122
LS MT122 — MT1 Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
650 kg
Hover a source tag to verify
Overview
ManufacturerLSReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Yanmar 1.1L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine (gross)16.0 kWReference
Yanmar 3TNV76FReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke76 x 76 mmReference
EmissionsTier IVReference
Power (gross)16.0 kWReference
Fuel systemindirect injectionReference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)11.2 kWReference
Pump flow17.4 lpmReference
Total flow25.4 lpmReference
Steering flow7.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)439 kgReference
Rear lift (at 24"/610mm)330 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2500Reference
Dimensions
Wheelbase142 cmReference
Weight650 kgReference
Weight129 kgReference
Weight395 kgReference
Lawn/turf front18x8.5-10Reference
Lawn/turf rear26x12.0-12Reference
Industrial front18x8.5-10Reference
Industrial rear26x12.0-12Reference
Length246 cmReference
Width119 cmReference
Height (ROPS)220 cmReference

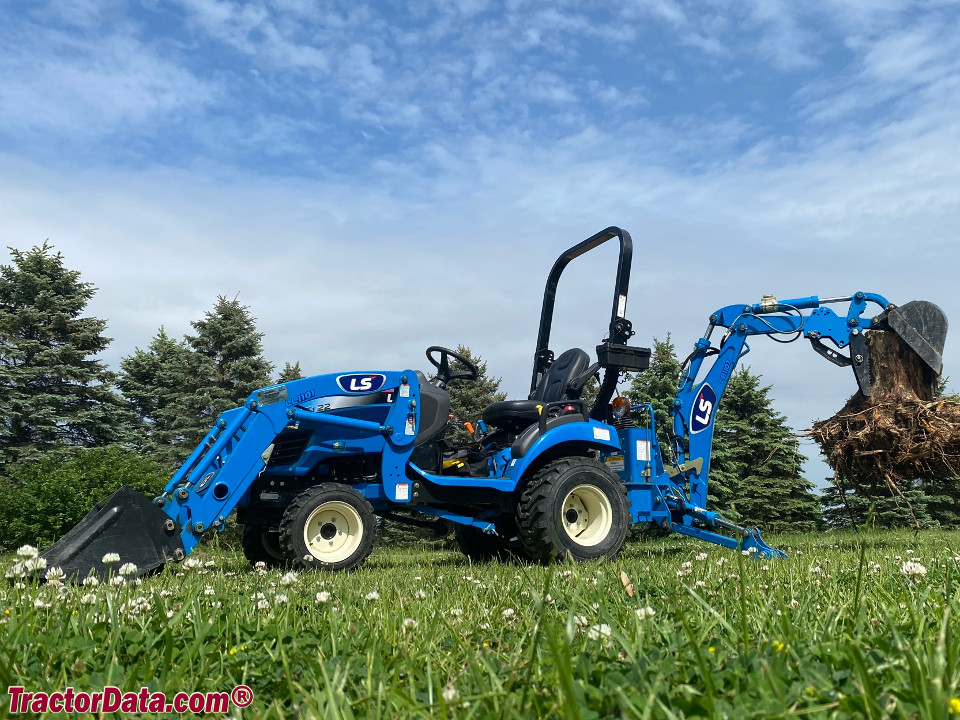

LS MT122 attachments
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Charging volts12Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
LS LL1100 loaderReference
LS LL1101 loaderReference
BackhoeReference

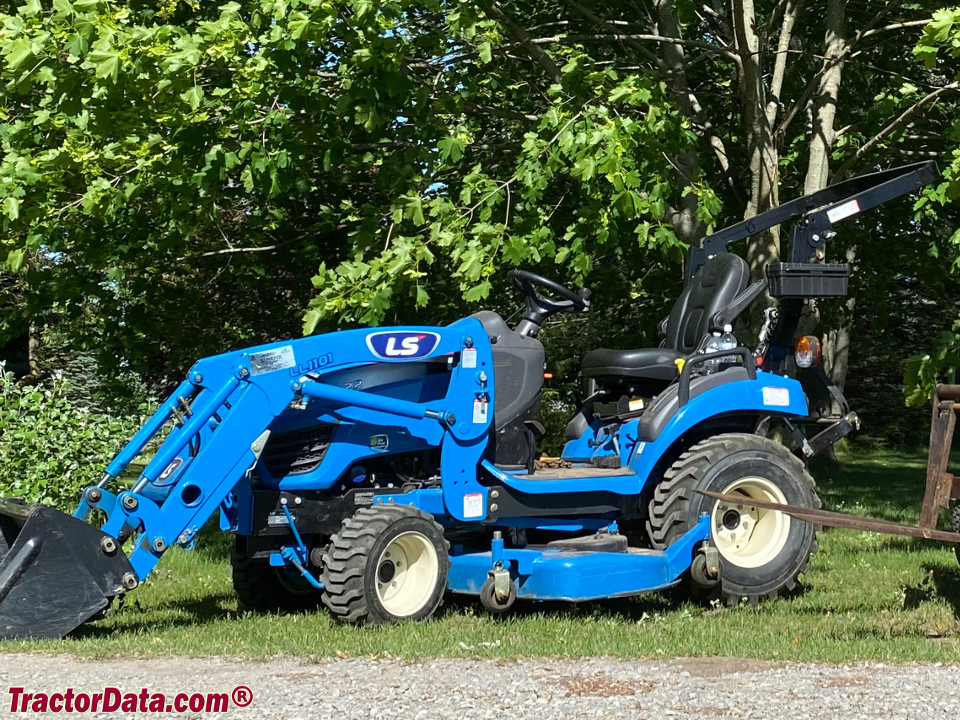

60" Mower deck
Typemid-mount LS LM1160Reference
Type3-bladeReference
Cutting width152 cmReference
Overall width192 cmReference
Cut height2 to 10 cmReference
LS LB1107 Backhoe
Backhoe typeLS LB1107 BackhoeReference
Transport height189 cmReference
Digging depth197 cmReference
Reach from pivot368 cmReference
Loading height151 cmReference
Bucket Rotation169.4°Reference
Swing Arc140°Reference
Bucket force951 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
