Tractor · 2019Unverified

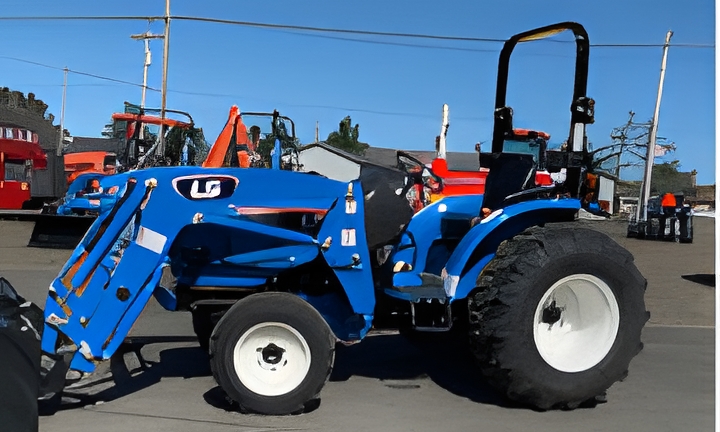

LS MT225E
LS MT225E — MT2E Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2434 to 2469 pounds
Hover a source tag to verify
Overview
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
MT225HEhydrostaticReference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine (gross)18.3 kWReference
Mitsubishi S3L2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke78 x 92 mmReference
EmissionsTier IVReference
Power (gross)18.3 kWReference
Fuel systemindirect injectionReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchro shuttleReference
hydrostaticReference
Typesynchro shuttleReference
Gears12 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Shuttle PTO (claimed)14.3 kWReference
Hydro PTO (claimed)12.8 kWReference
Valves0 to 2Reference
Pump flow29.9 lpmReference
Total flow47.3 lpmReference
Steering flow17.4 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)820 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase167 cmReference
Weight2434 to 2469 poundsReference
Front tire7-14Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference
Lawn/turf front25x8.5-14Reference
Lawn/turf rear41x14-20Reference
Industrial front25x8.5-14Reference
Industrial rear43x16-20Reference
Length299 cmReference
Width137 cmReference
Height (ROPS)223 cmReference
Shuttle Weight1104 kgReference
Hydro Weight1119 kgReference
LS MT225E attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Charging volts12Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
LS LB1106 Backhoe
Backhoe typeLS LB1106 BackhoeReference
Transport height196 cmReference
Digging depth193 cmReference
Reach from pivot287 cmReference
Loading height161 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1277 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
