Tractor · 2020Unverified

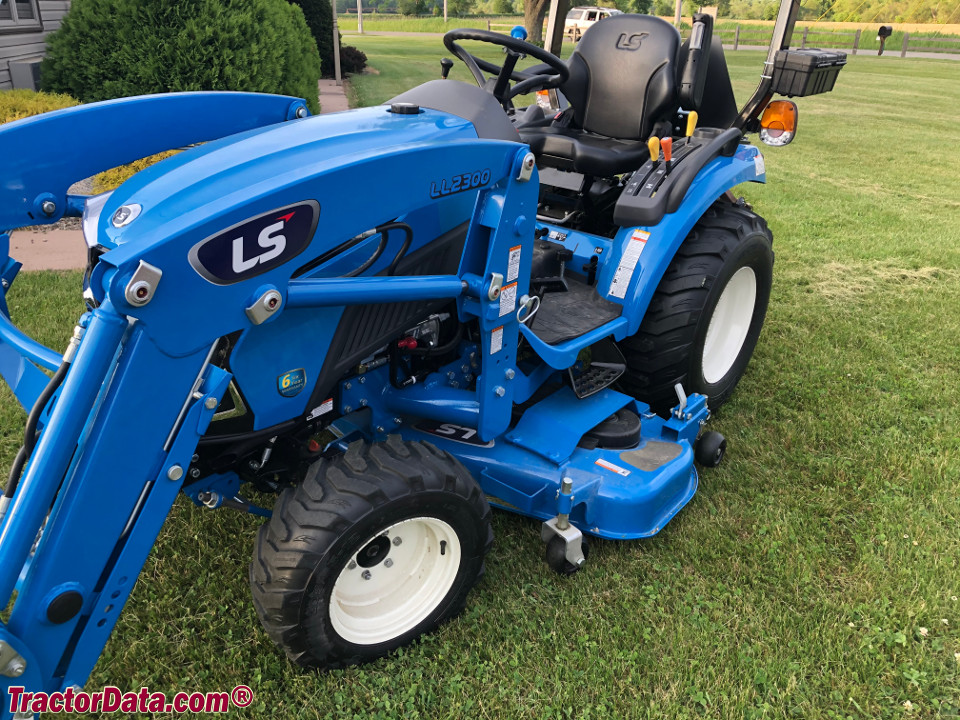

LS MT225S
LS MT225S — MT2 Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
800 kg
Hover a source tag to verify
Overview
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post folding ROPS.Reference
Engine
Yanmar 1.3L 3-cyl dieselReference
Fuel tank25.7 LReference
Engine (gross)18.4 kWReference
Yanmar 3TNV80FReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke80 x 84 mmReference
EmissionsTier IVReference
Power (gross)18.4 kWReference
Rated RPM2800Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)14.4 kWReference
Pump flow21.2 lpmReference
Steering flow14.0 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)860 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTO Type2500Reference
Dimensions
Wheelbase161 cmReference
Weight800 kgReference
Front tire7-12Reference
Rear tire11.2-16Reference
Weight166 kgReference
Standard tires (ag)Front: 7-12. Rear: 11.2-16Reference
Lawn/turf front22x8.5-12Reference
Lawn/turf rear31x15.5-15Reference
Industrial front23x8.5-12Reference
Industrial rear12-16.5Reference
Length284 cmReference
Width123 cmReference
Height (ROPS)219 cmReference
LS MT225S attachments
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount LS LM2360Reference
Type3-blade with hydraulic liftReference
Cutting width152 cmReference
Overall width192 cmReference
Cut height2 to 10 cmReference
LS LB1300 Backhoe
Backhoe typeLS LB1300 BackhoeReference
Transport height186 cmReference
Digging depth215 cmReference
Reach from pivot288 cmReference
Loading height164 cmReference
Bucket Rotation177°Reference
Swing Arc180°Reference
Bucket force1366 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
