Tractor · 2024Unverified

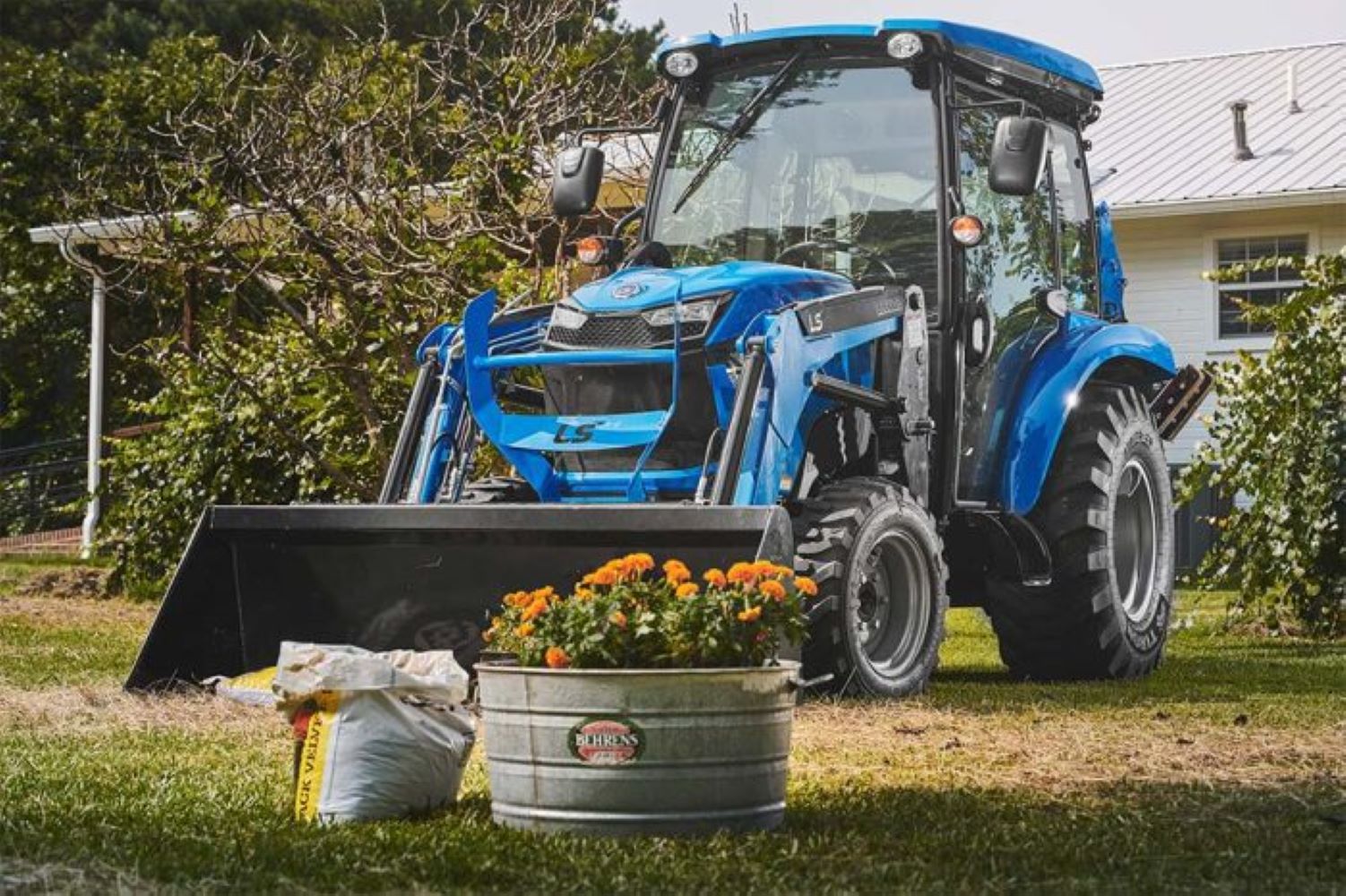

LS MT226HEC
LS MT226HEC — MT2E Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1637 kg
Hover a source tag to verify
Overview
ManufacturerLSReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
MT226EROPS shuttleReference
MT226EDROPS shuttle with transmission PTOReference
MT226HEROPS hydrostaticReference
MT226HECCab hydrostaticReference
Engine
Yanmar 1.6L 3-cyl dieselReference
Fuel tank43.1 LReference
Engine (gross)18.2 kWReference
Yanmar 3TNV88FReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.6 LReference
Bore/Stroke88 x 90 mmReference
Power (gross)18.2 kWReference
Fuel systemdirect injectionReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)14.2 kWReference
Typeopen centerReference
Pump flow23.1 lpmReference
Total flow40.5 lpmReference
Steering flow17.4 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)650 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase175 cmReference
Weight1637 kgReference
Front tire7-14Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf rear41x14.00-20Reference
Industrial front27x8.50-15Reference
Industrial rear43x16.00-20Reference
Length317 cmReference
Width167 cmReference
Height (cab)228 cmReference
LS MT226HEC attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Batteries12Reference
Battery volts1Reference
Attachment overview
Front-end loaderReference
BackhoeReference
LS LB3002 Backhoe
Backhoe typeLS LB3002 BackhoeReference
Transport height207 cmReference
Digging depth246 cmReference
Reach from pivot323 cmReference
Loading height193 cmReference
Bucket Rotation180°Reference
Swing Arc160°Reference
Bucket force1661 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
