Tractor · 2019Unverified

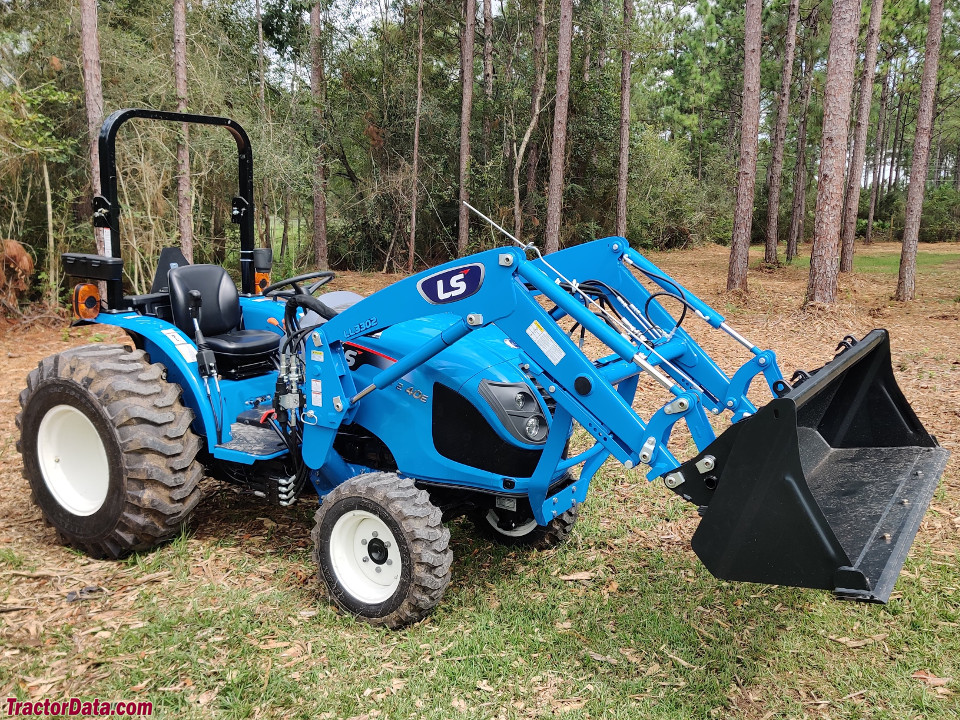

LS MT240E

Name: LS MT240E
Brand: LS

LS MT240E — MT2E Series · 40 hp. Reference specifications; pending source verification.

The LS MT240E is a compact tractor model with a rated output of 40 hp, making it suitable for smaller operations. Produced from 2019 to 2023, this model features a 3-cylinder turbocharged diesel liquid-cooled engine, powering four-wheel drive via a hydrostatic transmission. The listed weight ranges from 2881 to 2884 pounds, while its capabilities are generally suited to tasks involving up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

40 hp

Weight

2881 to 2884 pounds

Catalogue coverage

Variants represented

Richest spec table

72 rows

Recorded power

40 hp

Recorded weight

1306 kg

Transmissions

12-speed synchro shuttle

Production years

2019-2023

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLSReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Variants

MT240HEhydrostaticReference

Engine

LS 1.9L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine (gross)29.8 kWReference

LS L3C19-TReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.9 LReference

Bore/Stroke88 x 103 mmReference

EmissionsTier IVReference

Power (gross)29.8 kWReference

Fuel systemcommon rail direct injectionReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed synchro shuttleReference

hydrostaticReference

Typesynchro shuttleReference

Gears12 forward and reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

PTO (claimed)25.4 kWReference

Valves0 to 2Reference

Pump flow31.0 lpmReference

Total flow51.9 lpmReference

Steering flow20.8 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)820 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase175 cmReference

Weight2881 to 2884 poundsReference

Front tire7-14Reference

Rear tire11.2-24Reference

Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference

Lawn/turf front25x8.5-14Reference

Lawn/turf rear41x14-20Reference

Industrial front25x8.5-14Reference

Industrial rear43x16-20Reference

Length307 cmReference

Width137 cmReference

Width167 cmReference

Height (ROPS)223 cmReference

Shuttle Weight1306 kgReference

Hydro Weight1308 kgReference

LS MT240E attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps70Reference

Charging volts12Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

LS LB1105 Backhoe

Backhoe typeLS LB1105 BackhoeReference

Transport height196 cmReference

Digging depth193 cmReference

Reach from pivot287 cmReference

Loading height161 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1277 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
