Tractor · 2024Unverified

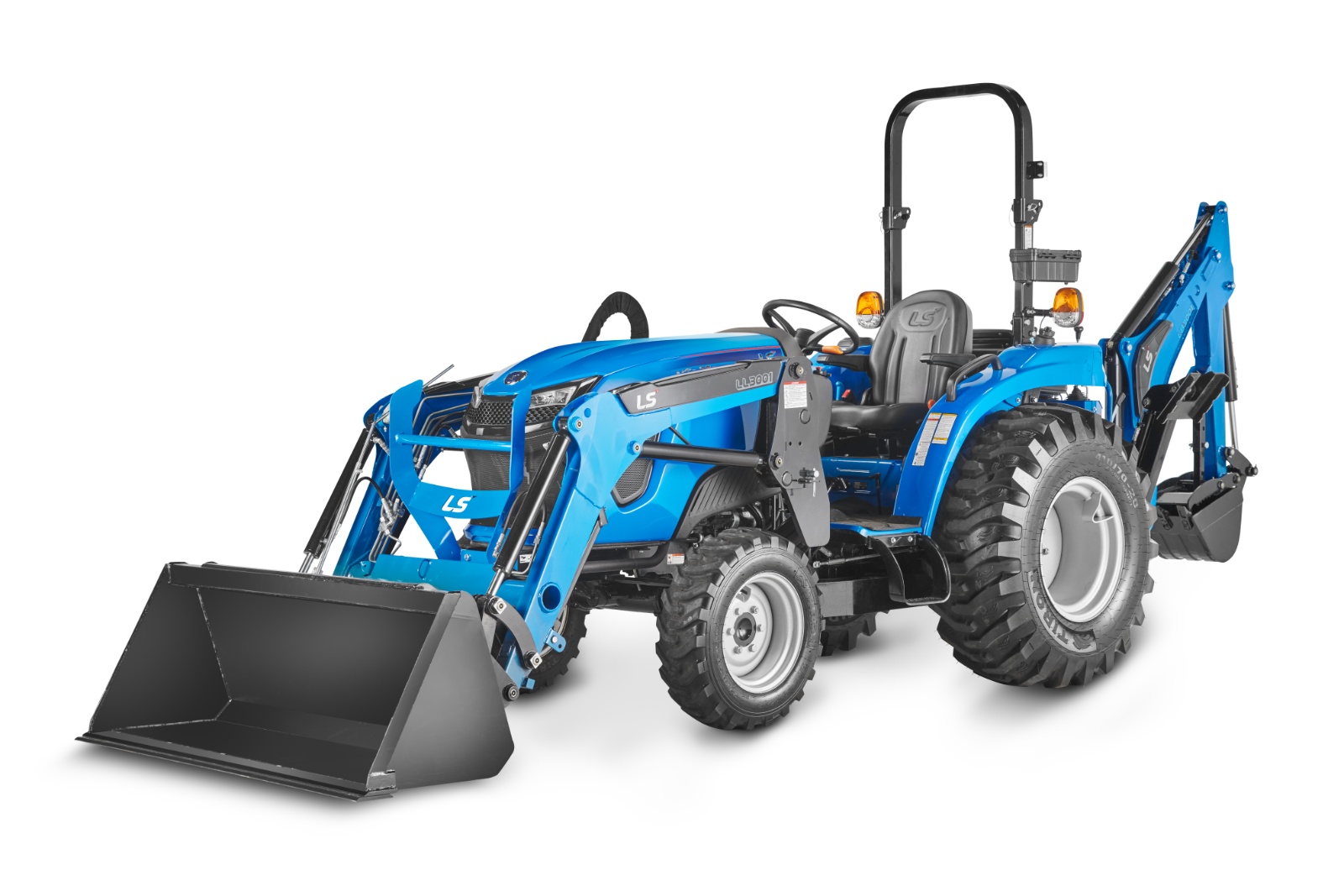

LS MT242E
LS MT242E — MT2E Series · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Weight
3250 to 3761 pounds
Hover a source tag to verify
Overview
ManufacturerLSReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Variants
MT242EEconomy ROPS shuttleReference
MT242HEEconomy ROPS hydrostaticReference
MT242HECEconomy cab hydrostaticReference
MT242HDeluxe ROPS hydrostaticReference
MT242HCdeluxe cab hydrostaticReference
Engine
Yanmar 2.2L 4-cyl dieselReference
Fuel tank40.1 LReference
ROPS Fuel tank-unknown-Reference
Cab Fuel tank43.1 LReference
Engine (gross)31.7 kWReference
Yanmar 4TNV88CReference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement2.2 LReference
Bore/Stroke88 x 90 mmReference
Power (gross)31.7 kWReference
Fuel systemdirect injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchro shuttleReference
hydrostaticReference
Typesynchro shuttleReference
Gears12 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)26.4 kWReference
Typeopen centerReference
Shuttle Pump flow28.0 lpmReference
Hydro Pump flow25.4 lpmReference
Shuttle Total flow46.9 lpmReference
Hydro Total flow44.3 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)650 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase187 cmReference
Weight3250 to 3761 poundsReference
Lawn/turf front25x8.50-14Reference
Lawn/turf rear41x14.00-20Reference
Industrial front27x8.50-15Reference
Industrial rear43x16.00-20Reference
Length317 cmReference
Width167 cmReference
Height (ROPS)241 cmReference
Height (cab)228 cmReference
ROPS shuttle1474 kgReference
ROPS hydro1494 kgReference
Cab hydro1705 kgReference
LS MT242E attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Batteries12Reference
Battery volts1Reference
Attachment overview
Front-end loaderReference
BackhoeReference
LS LB3002 Backhoe
Backhoe typeLS LB3002 BackhoeReference
Transport height207 cmReference
Digging depth246 cmReference
Reach from pivot323 cmReference
Loading height193 cmReference
Bucket Rotation180°Reference
Swing Arc160°Reference
Bucket force1661 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
