Tractor · 2018Unverified

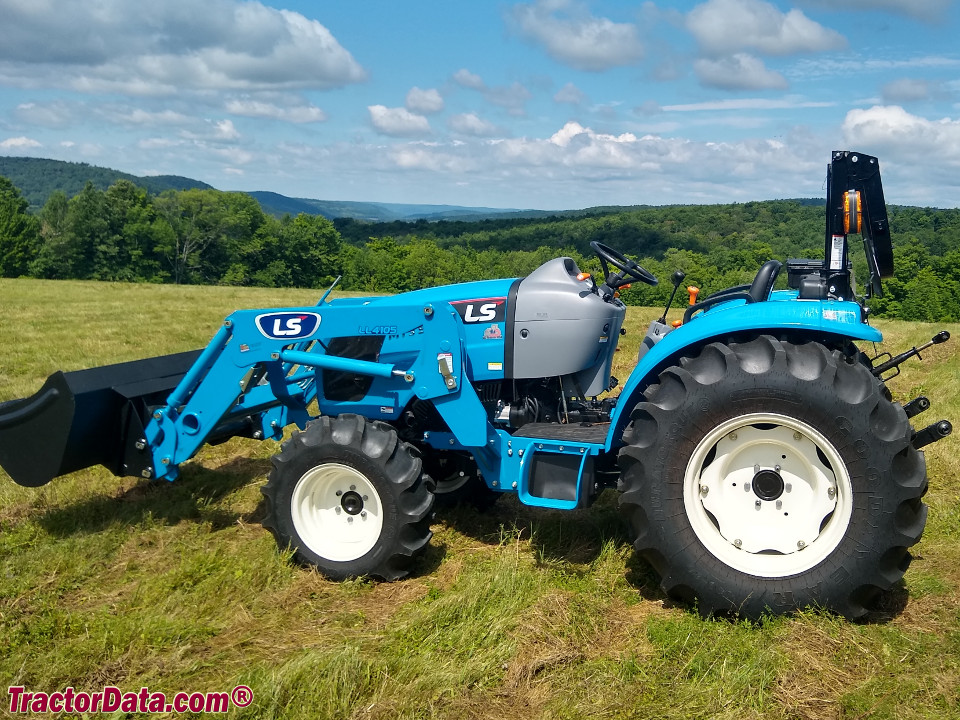

LS MT350E
LS MT350E — MT3E Series · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
1689 kg
Hover a source tag to verify
Overview
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
LS 1.9L 3-cyl dieselReference
Fuel tank51.9 LReference
Engine (gross)37.3 kWReference
LS L3C19-TReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke88 x 103 mmReference
EmissionsTier IVReference
Power (gross)37.3 kWReference
Fuel systemcommon rail direct injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchro shuttleReference
Typesynchro shuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
PTO (claimed)31.7 kWReference
Rear valves0 to 2Reference
Front valves2Reference
Pump flow31.0 lpmReference
Total flow49.2 lpmReference
Steering flow18.2 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1319 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase189 cmReference
Weight1689 kgReference
Front tire9.5-16Reference
Rear tire14.9-24Reference
Standard tires (ag)Front: 9.5-16. Rear: 14.9-24Reference
Optional tires (ag)Front: 7-14. Rear: 9.5-24Reference
Lawn/turf front29x12.50-15Reference
Lawn/turf rear44x18.00-20Reference
Industrial front10.0-16.5Reference
Industrial rear17.5L-24Reference
Length317 cmReference
Width172 cmReference
Height (ROPS)254 cmReference
LS MT350E attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
LS LB2106 Backhoe
Backhoe typeLS LB2106 BackhoeReference
Transport height212 cmReference
Digging depth227 cmReference
Reach from pivot318 cmReference
Loading height183 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1215 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
