Tractor · 2020Unverified

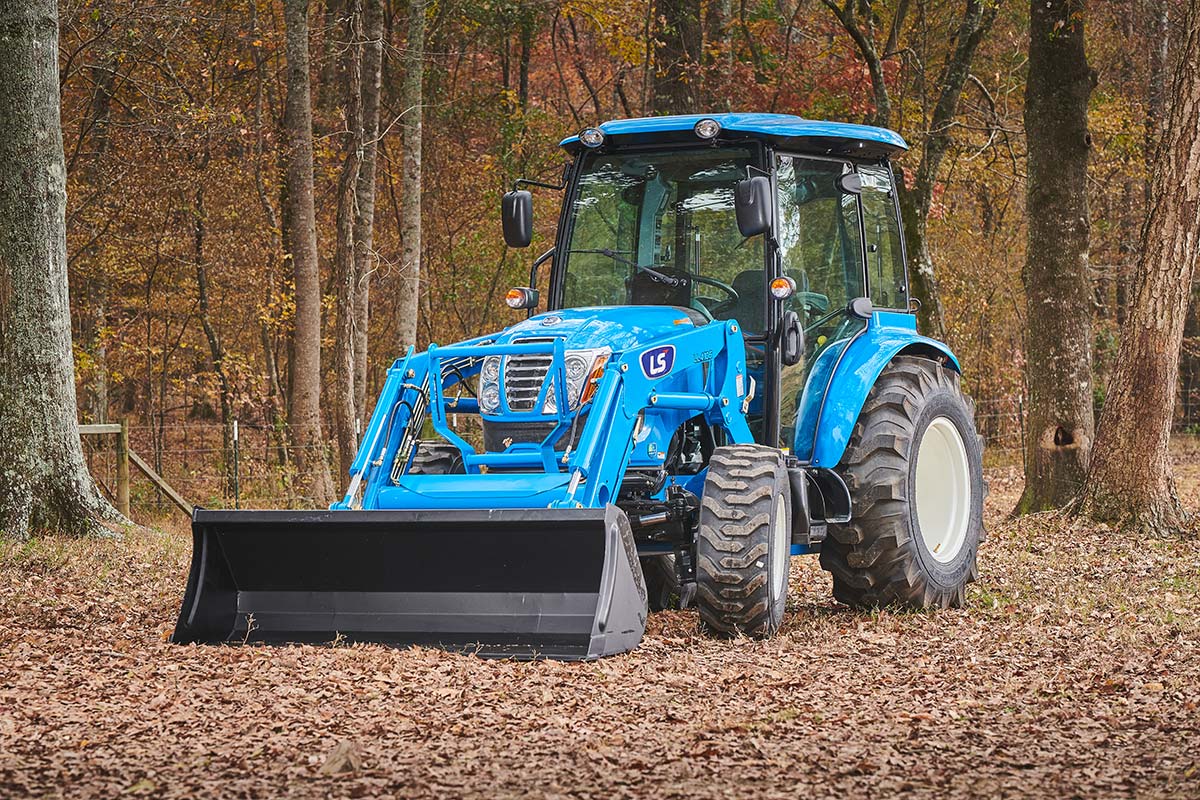

LS MT352

Name: LS MT352
Brand: LS

LS MT352 — MT3 Series · 52 hp. Reference specifications; pending source verification.

The LS MT352 is a tractor with a rated power of 52 hp, positioning it at the lighter end of its class. It was manufactured in 2020. The tractor is equipped with a 3-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. Its operating weight ranges from 3869 to 4446 pounds, accommodating operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

52 hp

Weight

3869 to 4446 pounds

Catalogue coverage

Variants represented

Richest spec table

96 rows

Recorded power

52 hp

Transmissions

16-speed synchro shuttle

Production years

2020-2020

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLSReference

Compact Utility tractorReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Variants

MT352ROPS shuttleReference

MT352CCab shuttleReference

MT352HROPS hydroReference

MT352HCCab hydroReference

Engine

LS Mtron 1.9L 3-cyl dieselReference

ROPS Fuel tank40.1 LReference

Cab Fuel tank46.9 LReference

Engine (gross)38.8 kWReference

LS Mtron L3C19-T8Reference

turbocharged dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.9 LReference

Bore/Stroke88 x 103 mmReference

EmissionsTier IVReference

Power (gross)38.8 kWReference

Fuel systemcommon rail direct injectionReference

Air cleanerdryReference

Compression17:1Reference

Rated RPM2600Reference

Idle RPM950-2750Reference

Torque174.0 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Oil capacity5.9 LReference

Transmission

16-speed synchro shuttleReference

hydrostaticReference

ROPS gear1754 kgReference

Cab gear1986 kgReference

Typesynchro shuttleReference

Gears16 forward and reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Gear PTO (claimed)33.0 kWReference

Hydro PTO (claimed)31.0 kWReference

Typeopen centerReference

Pressure170.0 barReference

Valves3Reference

Pump flow31.0 lpmReference

ROPS shuttle Total flow46.6 lpmReference

ROPS hydro Total flow54.1 lpmReference

Cab hydro Total flow56.8 lpmReference

Gear Steering flow15.5 lpmReference

ROPS hydro Steering flow23.5 lpmReference

Cab hydro Steering flow26.1 lpmReference

Steering press.142.2 barReference

Rear TypeIReference

Controlposition and draft controlReference

Rear lift (at ends)1250 kgReference

Rear lift (at 24"/610mm)1119 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2409Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Engine RPM2000@2562Reference

Dimensions

Wheelbase185 cmReference

Weight3869 to 4446 poundsReference

Front tire9.5-16Reference

Rear tire13.6-24Reference

Standard tires (ag)Front: 9.5-16. Rear: 13.6-24Reference

Lawn/turf front28x8.5-15Reference

Lawn/turf rear41x14-20Reference

Industrial front12-16.5Reference

Industrial rear17.5L-24Reference

Length362 cmReference

Width161 cmReference

Height (ROPS)243 cmReference

Height (cab)230 cmReference

ROPS hydro1784 kgReference

Cab hydro2016 kgReference

LS MT352 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps70Reference

Charging volts12Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

LS LB2105 Backhoe

Backhoe typeLS LB2105 BackhoeReference

Transport height212 cmReference

Digging depth227 cmReference

Reach from pivot318 cmReference

Loading height183 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1215 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
