Tractor · 2017Unverified
LS MT573
LS MT573 — MT5 Series · 73 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
73 hp
Weight
6620 to 6669 pounds
Hover a source tag to verify
Overview
ManufacturerLSReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Cab standard with air-conditioning.Reference
Variants
MT573Csync shuttleReference
MT573CPSpower shuttleReference
Engine
LS 2.5L 4-cyl dieselReference
Fuel tank99.9 LReference
Engine (gross)54.4 kWReference
Power shuttle Weight3025 kgReference
LS L4C25-TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke88 x 103 mmReference
EmissionsTier IVReference
Power (gross)54.4 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speed synchro shuttleReference
Typesynchro shuttleReference
Gears20 forward and reverseReference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
Rear valves3Reference
Front valves3Reference
Pump flow50.0 lpmReference
Total flow74.9 lpmReference
Steering flow25.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)3000 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Dimensions
Wheelbase214 cmReference
Weight6620 to 6669 poundsReference
Front tire11.2-24Reference
Rear tire16.9-30Reference
Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference
Length381 cmReference
Width188 cmReference
Height (cab)265 cmReference
Sync shuttle Weight3002 kgReference

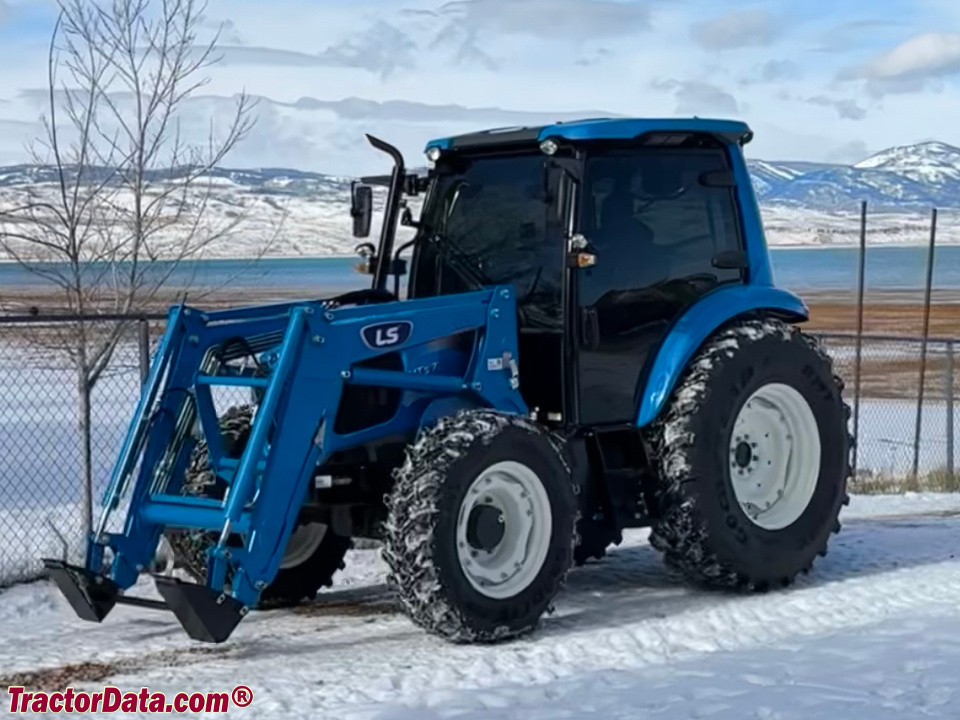

LS MT573 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
