Tractor · 2021Unverified
LS MT7101
LS MT7101 — MT7 Series · 101 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
101 hp
Weight
3499 kg
Hover a source tag to verify
Overview
ManufacturerLSReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Cab standard with air-conditioning.Reference
Engine
FPT 3.4L 4-cyl dieselReference
Fuel tank115.1 LReference
Engine (gross)75.0 kWReference
FPT F5GReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 110 mmReference
EmissionsTier IVReference
Power (gross)75.0 kWReference
Fuel systemcommon rail direct injectionReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
40-speed power shuttleReference
Typepower shuttleReference
Gears40 forward and reverseReference
PTO & Hydraulics
PTO (claimed)63.8 kWReference
Rear valves2Reference
Front valves3Reference
Pump flow59.4 lpmReference
Total flow84.0 lpmReference
Steering flow24.6 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift3800 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Dimensions
Wheelbase228 cmReference
Weight3499 kgReference
Front tire13.6-24Reference
Rear tire18.4-34Reference
Standard tires (ag)Front: 13.6-24. Rear: 18.4-34Reference
Industrial front340/70R28Reference
Industrial rear460/75R38Reference
Length386 cmReference
Width199 cmReference
Height (cab)267 cmReference

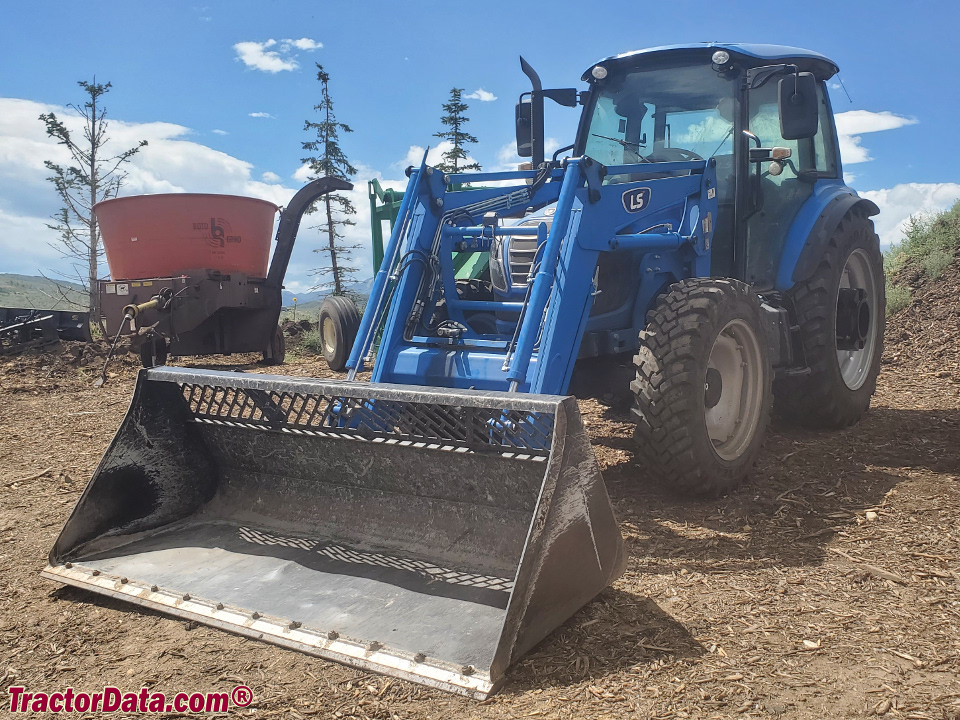

LS MT7101 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
