Tractor · 2009Unverified

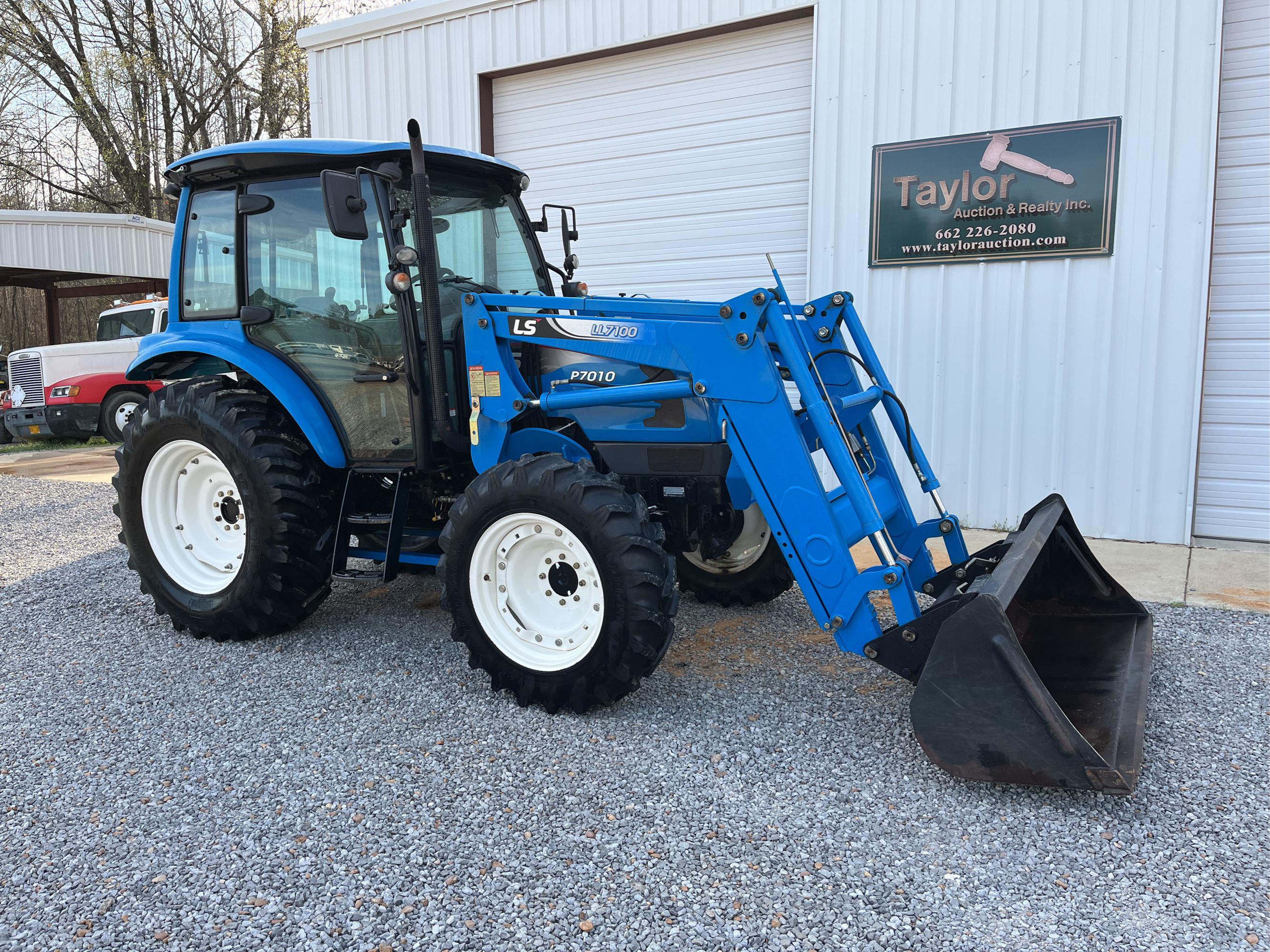

LS P7010

Name: LS P7010
Brand: LS

LS P7010 — P Series · 72 hp. Reference specifications; pending source verification.

The LS P7010 tractor model is rated at 72 hp, positioning it centrally within its class in terms of power output. Manufactured from 2009 to 2018, this model features a 4-cylinder turbocharged diesel liquid-cooled engine, which drives through four-wheel drive and a 20-speed gearbox. The listed weight of the LS P7010 is 3027 kg, and it is intended for use in jobs involving areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

72 hp

Weight

3027 kg

Catalogue coverage

Variants represented

Richest spec table

49 rows

Recorded power

72 hp

Recorded weight

3027 kg

Transmissions

20-speed synchro shuttle

Production years

2009-2018

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLSReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Iveco FPT 3.2L 4-cyl dieselReference

Fuel tank99.9 LReference

Engine (gross)53.7 kWReference

Iveco FPT F5CReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.2 LReference

Bore/Stroke99 x 104 mmReference

EmissionsInterim Tier 4Reference

Power (gross)53.7 kWReference

Fuel systemdirect injectionReference

Rated RPM2300Reference

StarterelectricReference

Starter volts12Reference

Transmission

20-speed synchro shuttleReference

Typesynchro shuttleReference

Gears20 forward and reverseReference

PTO & Hydraulics

PTO (claimed)47.0 kWReference

Rear valves3Reference

Pump flow45.4 lpmReference

Total flow71.9 lpmReference

Steering flow26.5 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift2800 kgReference

Rear PTOindependentReference

Rear PTO Type540/750/1000Reference

Dimensions

Wheelbase219 cmReference

Weight3027 kgReference

Front tire11.2-24Reference

Rear tire16.9-30Reference

Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference

Length399 cmReference

Width197 cmReference

Height (cab)259 cmReference

LS P7010 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA900Reference

Battery volts12Reference

Battery AH110Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
