Tractor · 2009Unverified

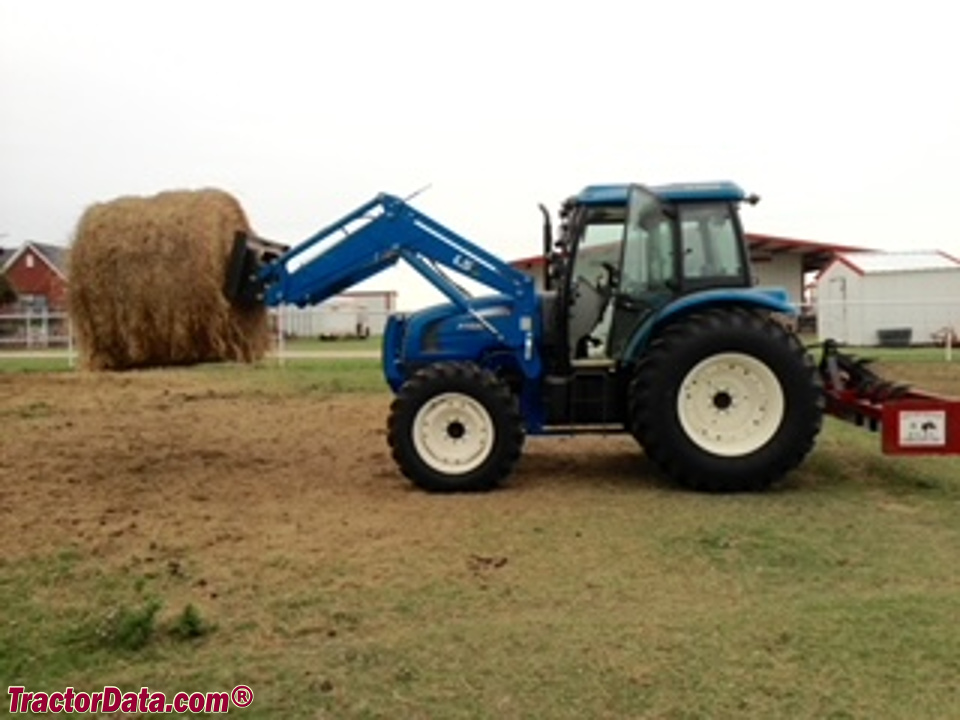

LS P7030
LS P7030 — P Series · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Weight
3050 kg
Hover a source tag to verify
Overview
ManufacturerLSReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
P7030Csynch shuttleReference
P7030CPSpower shuttleReference
Engine
Iveco FPT 3.2L 4-cyl dieselReference
Fuel tank99.9 LReference
Engine (gross)65.6 kWReference
Iveco FPT F5CReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.2 LReference
Bore/Stroke99 x 104 mmReference
EmissionsInterim Tier 4Reference
Power (gross)65.6 kWReference
Fuel systemdirect injectionReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speed synchro shuttleReference
40-speed power shuttleReference
Typesynchro shuttleReference
Gears20 forward and reverseReference
Typepower shuttleReference
Gears40 forward and 20 reverseReference
PTO & Hydraulics
PTO (claimed)57.4 kWReference
Rear valves3Reference
Pump flow45.4 lpmReference
Total flow71.9 lpmReference
Steering flow26.5 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2800 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Dimensions
Wheelbase219 cmReference
Weight3050 kgReference
Front tire12.4-24Reference
Rear tire18.3-30Reference
Standard tires (ag)Front: 12.4-24. Rear: 18.3-30Reference
Length399 cmReference
Width201 cmReference
Height (cab)259 cmReference
LS P7030 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
