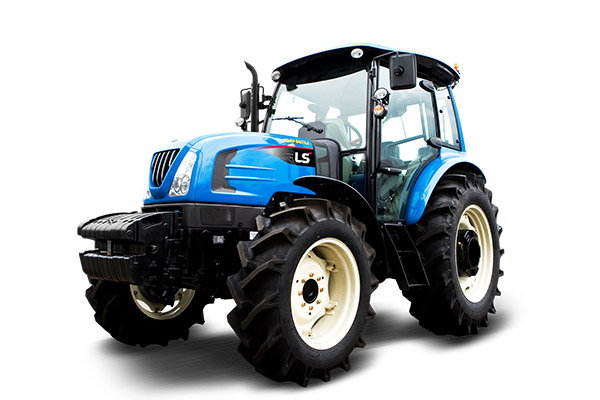

LS PS100
LS PS100 — PLUS SeriesUtility tractor · 83 hp. Reference specifications; pending source verification.
The LS PS100 is a tractor with a rated power output of 83 hp, a mid-range figure for its class. It is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, combined with four-wheel drive and a hydrostatic transmission. The tractor has a listed operating weight of 3402 kg and is suitable for operations on up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
83 hp
Weight
3402 kg
Catalogue coverage
Variants represented
2
Richest spec table
47 rows
Recorded power
83 hp
Recorded weight
3402 kg
Transmissions
20-speed synchronized shuttle
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLSReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Cab standard with air-conditioning.Reference
Engine
FPT 4.5L 4-cyl dieselReference
Fuel tank99.9 LReference
Engine70.8 kWReference
FPT NEFReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 3Reference
Power70.8 kWReference
Air cleanerdryReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speed synchronized shuttleReference
40-speed power shuttleReference
Typesynchronized shuttleReference
Gears20 forward and reverseReference
Typepower shuttleReference
Gears40 forward and reverseReference
PTO & Hydraulics
PTO (claimed)61.9 kWReference
Rear valves3Reference
Front valves2Reference
Pump flow56.0 lpmReference
Steering flow22.7 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2800 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Dimensions
Wheelbase228 cmReference
Weight3402 kgReference
Front tire12.4-24Reference
Rear tire16.9-34Reference
Ag front12.4-24Reference
Ag rear16.9-34Reference
Length399 cmReference
Width201 cmReference
Height (cab)262 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
