Tractor · Unverified

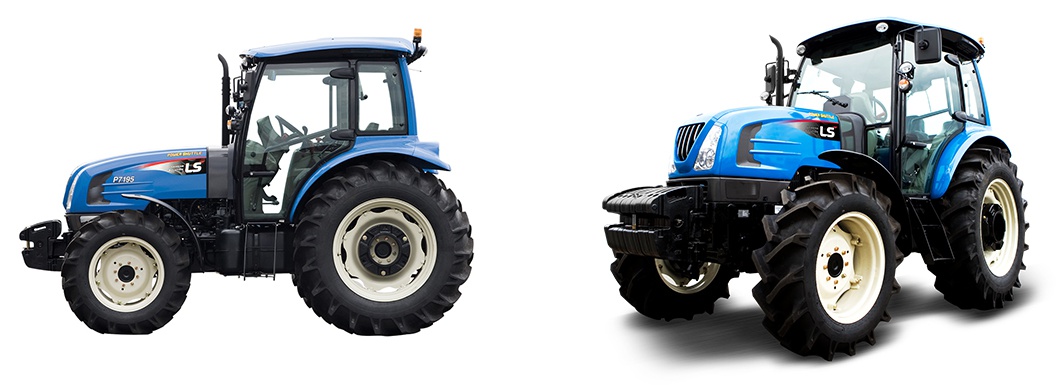

LS PS90
LS PS90 — PLUS SeriesUtility tractor · 77 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
77 hp
Weight
6411 to 7015 pounds
Hover a source tag to verify
Overview
ManufacturerLSReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
ROPS. Cab optional with air-conditioning.Reference
Engine
FPT 3.2L 4-cyl dieselReference
Fuel tank99.9 LReference
Engine64.9 kWReference
FPT F5CReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.2 LReference
Bore/Stroke99 x 104 mmReference
EmissionsTier 3Reference
Power64.9 kWReference
Air cleanerdryReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speed synchronized shuttleReference
40-speed power shuttleReference
Typesynchronized shuttleReference
Gears20 forward and reverseReference
Typepower shuttleReference
Gears40 forward and reverseReference
PTO & Hydraulics
PTO (claimed)57.4 kWReference
Rear valves3Reference
Front valves2Reference
ROPS Pump flow40.9 lpmReference
Cab Pump flow56.0 lpmReference
Steering flow22.7 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2800 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Dimensions
Wheelbase219 cmReference
Weight6411 to 7015 poundsReference
Front tire12.4-24Reference
Rear tire18.4-30Reference
Ag front12.4-24Reference
Ag rear18.4-30Reference
Length399 cmReference
Width201 cmReference
Height (ROPS)267 cmReference
Height (cab)262 cmReference
ROPS Weight2908 kgReference
Cab Weight3182 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
