Tractor · 2011Unverified

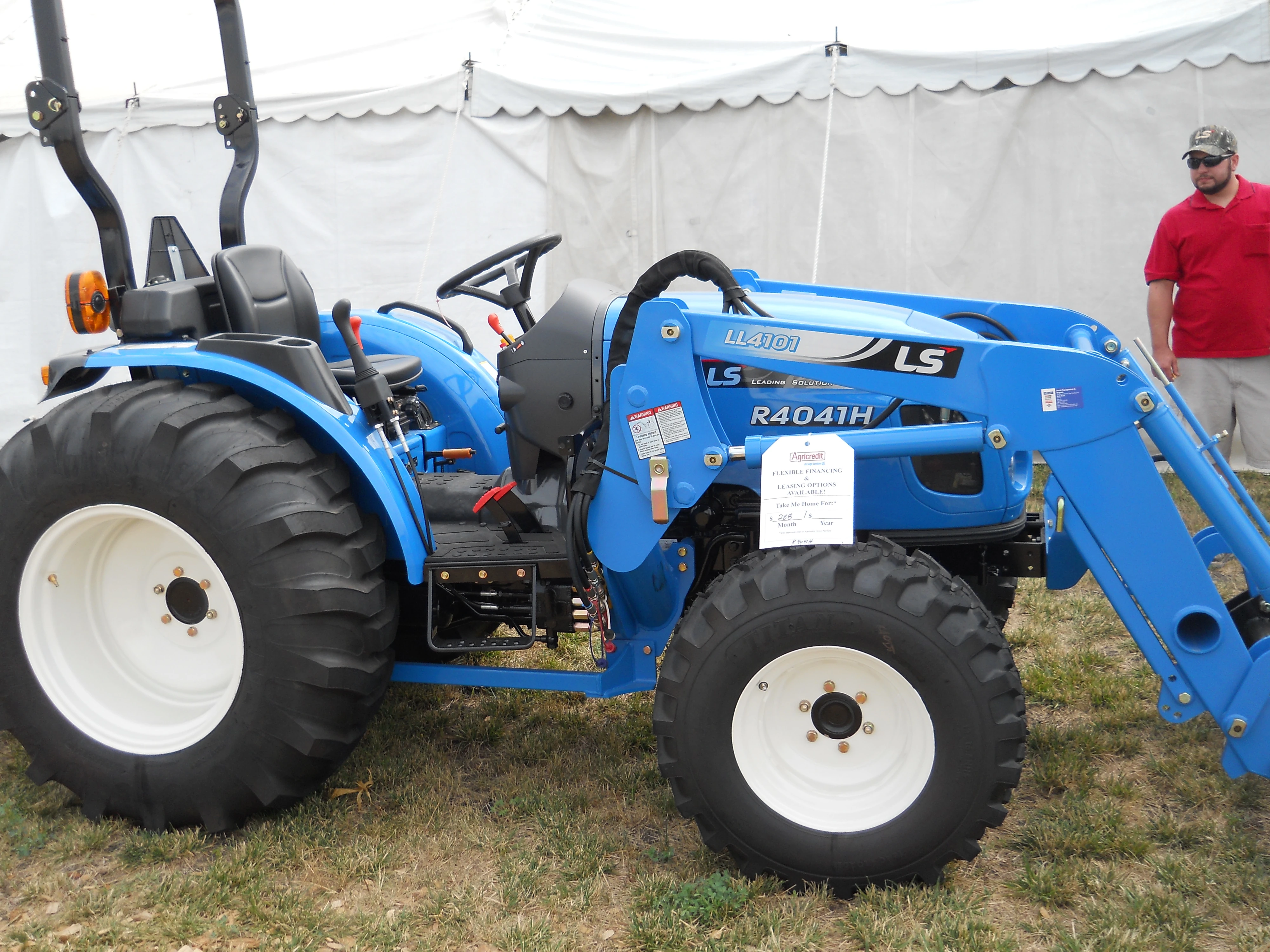

LS R4041

Name: LS R4041
Brand: LS

LS R4041 — R Series · 41 hp. Reference specifications; pending source verification.

The LS R4041 is a compact tractor with a maximum power output of 41 horsepower. Introduced in 2011, this model features a 4-cylinder diesel liquid-cooled engine, powering four-wheel drive with a hydrostatic transmission. The stated weight is 1729 kg, and it is designed for tasks requiring up to 200 acres of land.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

41 hp

Weight

1729 kg

Catalogue coverage

Variants represented

Richest spec table

60 rows

Recorded power

41 hp

Recorded weight

1729 kg

Transmissions

16-speed synchro shuttle

Production years

2011-2011

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLSReference

Compact Utility tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable ROPS.Reference

Engine

Mitsibishi 2.5L 4-cyl dieselReference

Fuel tank36.0 LReference

Engine (gross)30.6 kWReference

Mitsibishi S4QLReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.5 LReference

Bore/Stroke88 x 103 mmReference

Power (gross)30.6 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed synchro shuttleReference

Typesynchro shuttleReference

Gears16 forward and reverseReference

PTO & Hydraulics

PTO (claimed)26.1 kWReference

Pump flow31.0 lpmReference

Total flow46.6 lpmReference

Steering flow15.5 lpmReference

Rear TypeIReference

Controlposition and draft controlReference

Rear lift1249 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependent (optional)Reference

Mid PTO Type2000Reference

Dimensions

Wheelbase175 cmReference

Weight1729 kgReference

Front tire9.5-16Reference

Rear tire12.4-24Reference

Standard tires (ag)Front: 9.5-16. Rear: 12.4-24Reference

Lawn/turf front28x8.5-15Reference

Lawn/turf rear41x14-20Reference

Industrial front10x16.5Reference

Industrial rear43x16-20Reference

Length335 cmReference

Width141 cmReference

Height (ROPS)241 cmReference

LS R4041 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

LS LB2101 Backhoe

Backhoe typeLS LB2101 BackhoeReference

Digging depth227 cmReference

Reach from pivot317 cmReference

Loading height183 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1215 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
