Tractor · 2011Unverified

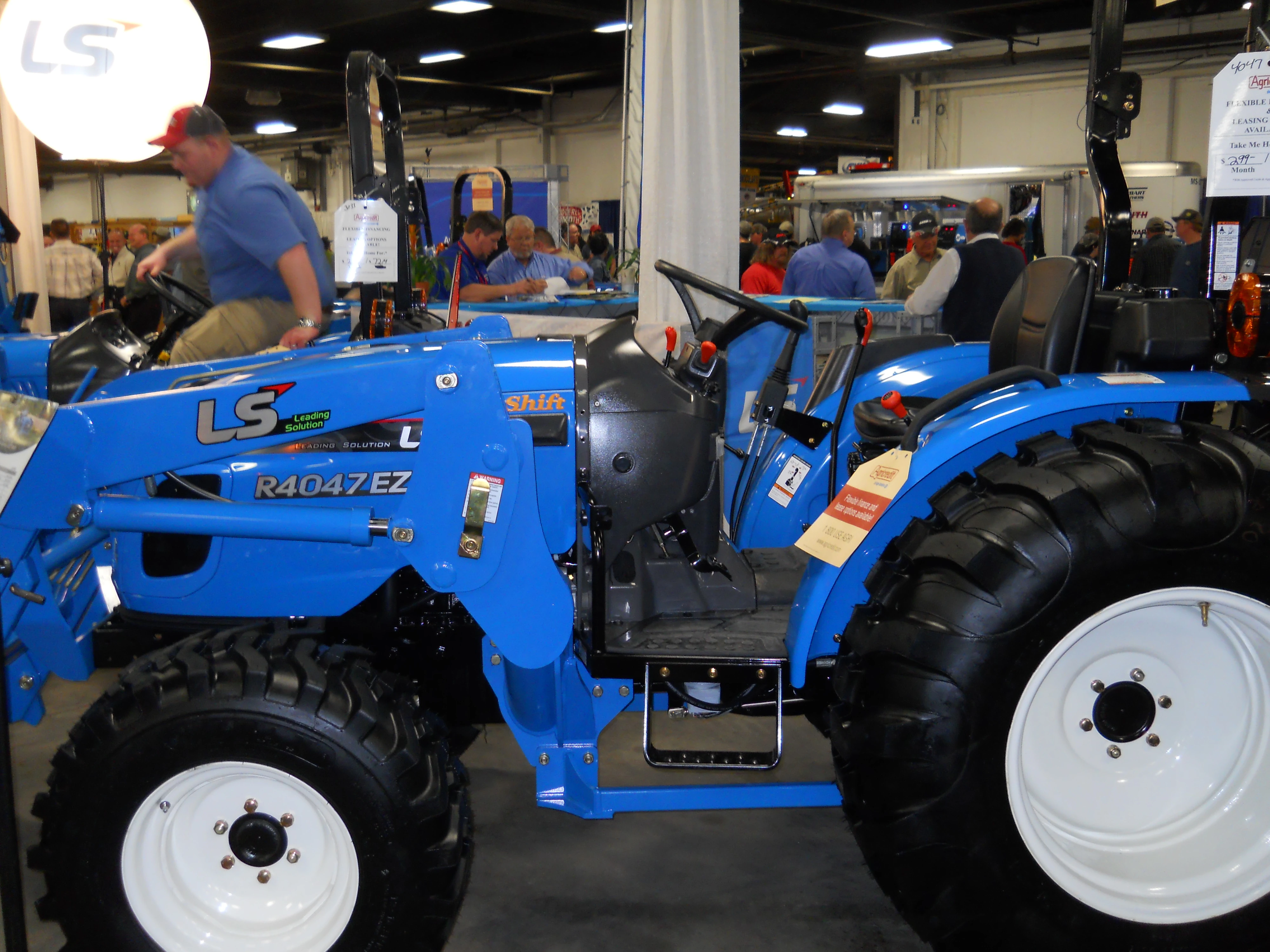

LS R4047
LS R4047 — R Series · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
1729 kg
Hover a source tag to verify
Overview
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
Mitsibishi 2.5L 4-cyl dieselReference
Fuel tank36.0 LReference
Engine (gross)35.0 kWReference
Mitsibishi S4QLReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke88 x 103 mmReference
Power (gross)35.0 kWReference
Fuel systemindirect injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchro shuttleReference
Typesynchro shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)30.6 kWReference
Pump flow31.0 lpmReference
Total flow46.6 lpmReference
Steering flow15.5 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift1249 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependent (optional)Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase175 cmReference
Weight1729 kgReference
Front tire9.5-16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 9.5-16. Rear: 13.6-24Reference
Lawn/turf front28x8.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front12x16.5Reference
Industrial rear17.5L-24Reference
Length335 cmReference
Width141 cmReference
Height (ROPS)241 cmReference
LS R4047 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
LS LB2101 Backhoe
Backhoe typeLS LB2101 BackhoeReference
Digging depth227 cmReference
Reach from pivot317 cmReference
Loading height183 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1215 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
