Tractor · Unverified

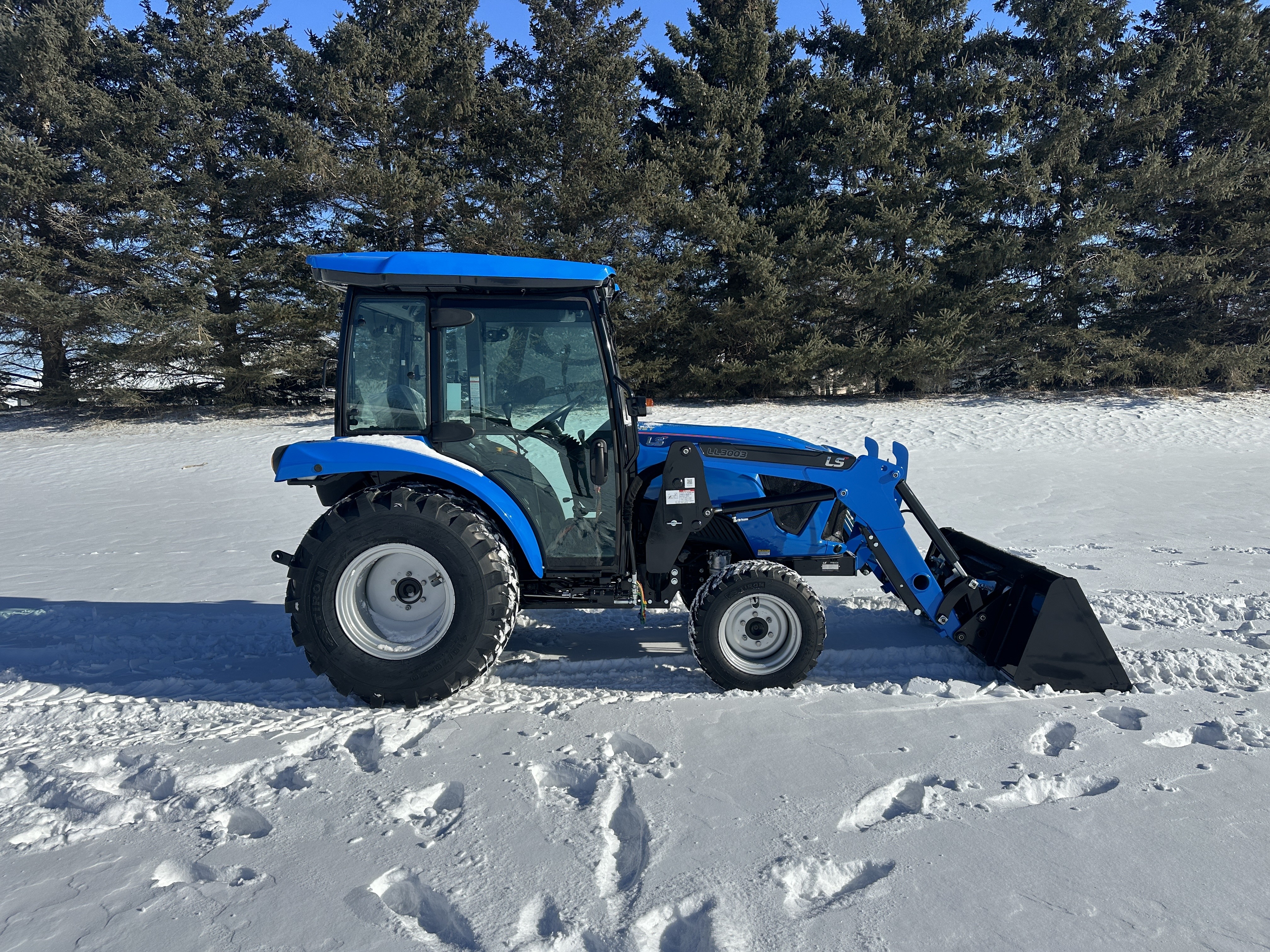

LS Rio R32
LS Rio R32 · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
1236 kg
Hover a source tag to verify
Overview
ManufacturerLSReference
Built in KoreaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
ROPSReference
Engine
Daedong 1.6L 3-cyl dieselReference
Fuel tank32.2 LReference
Engine25.4 kWReference
Daedong 3A165Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke87 x 92 mmReference
Power25.4 kWReference
Air cleanerDry Dual ElementReference
Rated RPM2700Reference
Transmission
12-speedReference
Transmissionsynchro shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
Valves0 to 2Reference
Pump flow29.9 lpmReference
Steering flow12.9 lpmReference
Rear TypeIReference
Rear lift1187 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Dimensions
Wheelbase166 cmReference
Weight1236 kgReference
Front tire7-16Reference
Rear tire12.4-24Reference
Ag front7-16Reference
Ag rear12.4-24Reference
Length298 cmReference
Height235 cmReference
Ground clearance33 cmReference
Electrical
Charging amps50Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
