Tractor · Unverified

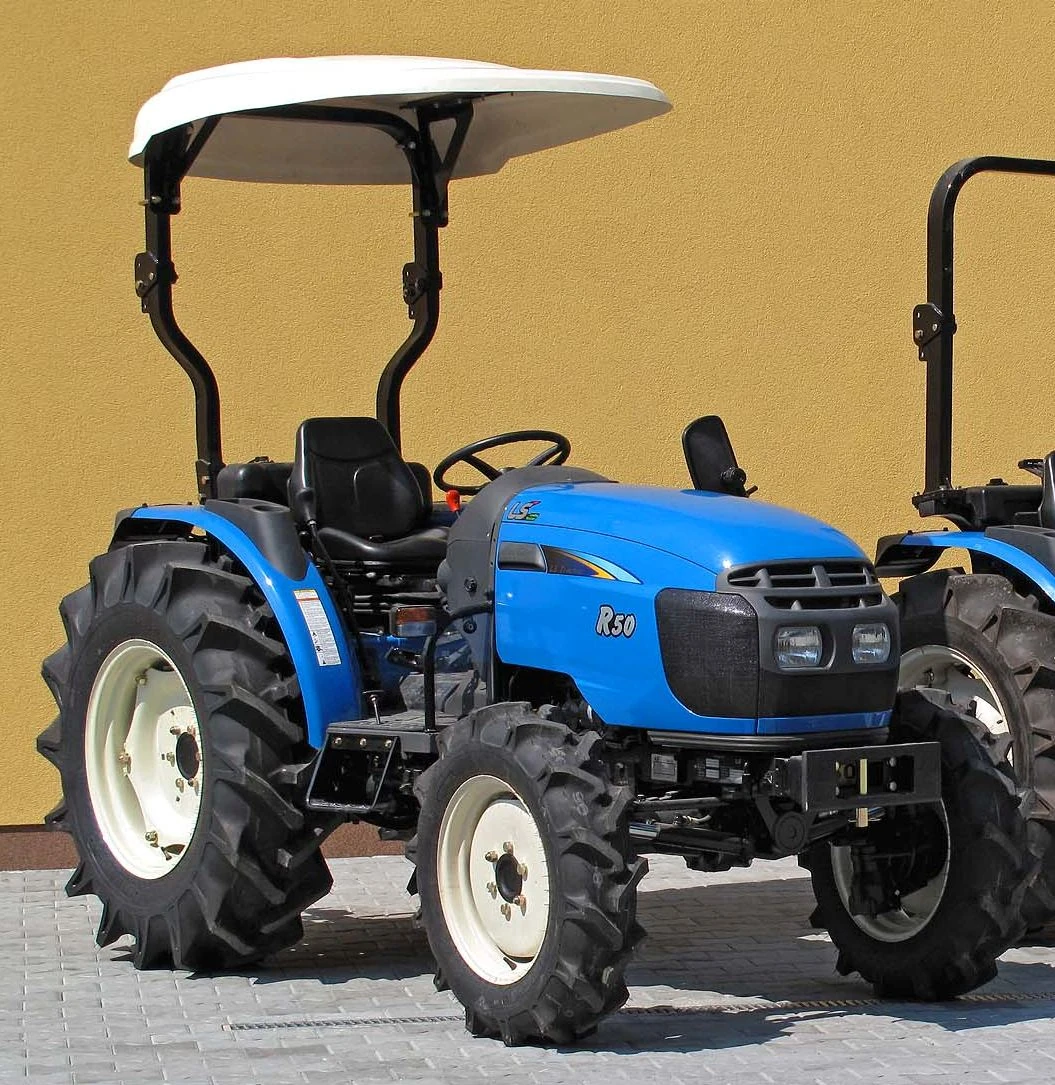

LS Rio R50
LS Rio R50 · 47 hp. Reference specifications; pending source verification.
The LS Rio R50 is a compact tractor, rated at 47 hp, featuring a 4-cylinder diesel liquid-cooled engine. This engine powers a four-wheel drive system with a hydrostatic transmission, and the tractor has a listed weight of 1625 kg. The LS Rio R50 is suited to tasks on areas of up to 200 acres. Its technical specifications include those for both the UK and US markets.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
1625 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
47 hp
Recorded weight
1625 kg
Transmissions
16-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLSReference
Built in KoreaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
ROPSReference
Engine
Mitsubishi 2.5L 4-cyl dieselReference
Fuel tank40.1 LReference
Engine35.0 kWReference
Mitsubishi S4QLReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke88 x 103 mmReference
Power35.0 kWReference
Air cleanerDry Dual ElementReference
Rated RPM2600Reference
Transmission
16-speedReference
Transmissionsynchro shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
Valves2Reference
Pump flow31.0 lpmReference
Steering flow15.5 lpmReference
Rear TypeIReference
Rear lift1250 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Mid PTOoptionalReference
Dimensions
Wheelbase175 cmReference
Weight1625 kgReference
Front tire8-18Reference
Rear tire13.6-24Reference
Ag front8-18Reference
Ag rear13.6-24Reference
Length319 cmReference
Height244 cmReference
Ground clearance38 cmReference
Electrical
Charging amps50Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
