Tractor · Unverified
LS U50

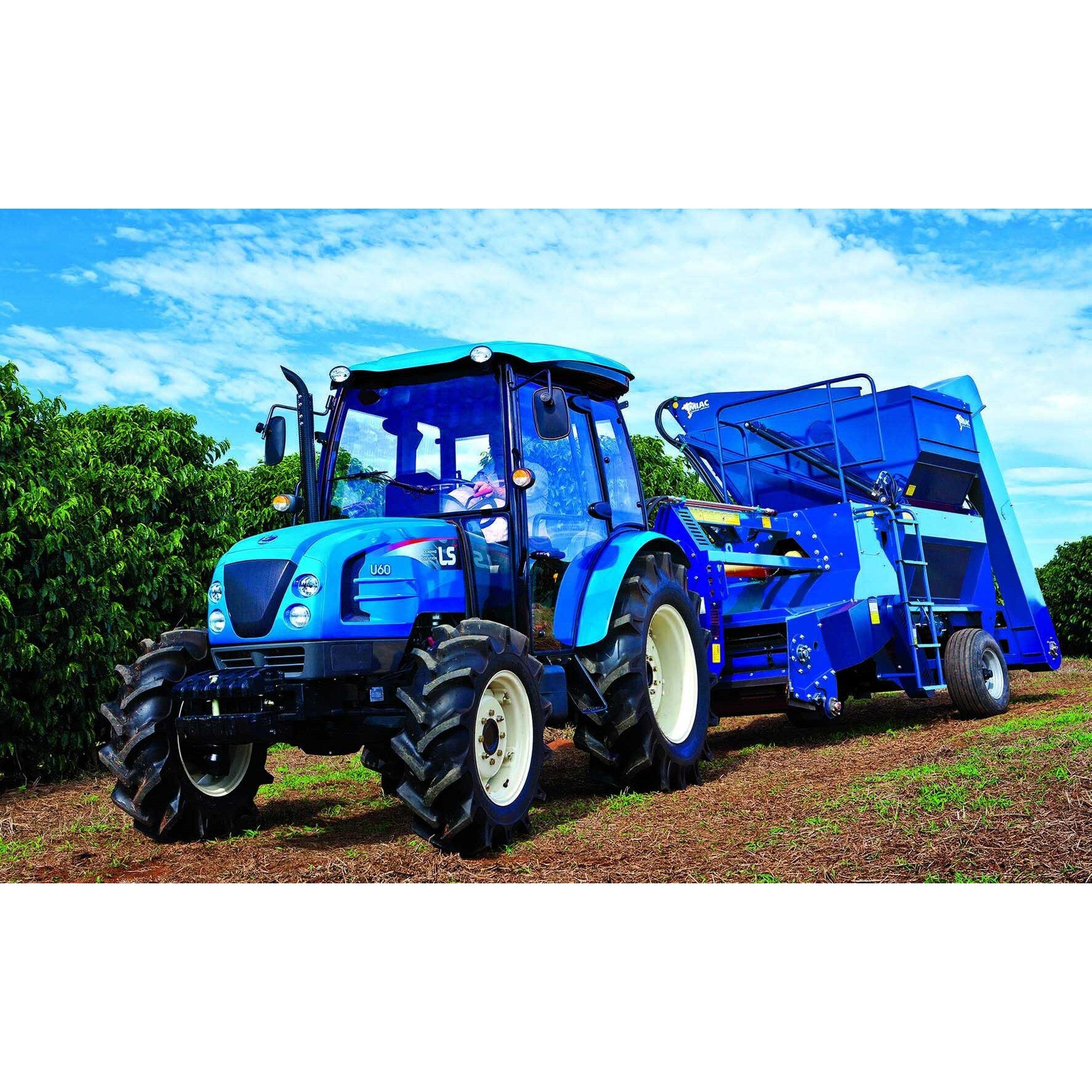

LS U50 — U SeriesUtility tractor · 41 hp. Reference specifications; pending source verification.
The LS U50 is a tractor model rated at approximately 41 hp, typically found at the lighter end of its class. Equipped with a 4-cylinder diesel liquid-cooled engine, it features four-wheel drive and a hydrostatic transmission. The tractor's operating weight ranges from 4303 to 4839 pounds, making it suitable for operations covering areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Weight
4303 to 4839 pounds
Catalogue coverage
Variants represented
2
Richest spec table
51 rows
Recorded power
41 hp
Recorded weight
1951 kg
Transmissions
16-speed synchronized shuttle
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLSReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
ROPS. Cab optional.Reference
Engine
LS 2.5L 4-cyl dieselReference
Fuel tank79.9 LReference
Engine35.0 kWReference
LS S4QLReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke88 x 103 mmReference
EmissionsTier 3Reference
Power35.0 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchronized shuttleReference
32-speed synchronized shuttle creeperReference
Typesynchronized shuttleReference
Gears16 forward and reverseReference
Typesynchronized shuttle creeperReference
Gears32 forward and 16 reverseReference
PTO & Hydraulics
PTO (claimed)30.8 kWReference
Rear valves2Reference
Front valves2Reference
Pump flow34.4 lpmReference
Total flow52.2 lpmReference
Steering flow17.8 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Dimensions
Wheelbase193 cmReference
Weight4303 to 4839 poundsReference
Front tire9.5-20Reference
Rear tire13.6-28Reference
Ag front9.5-20Reference
Ag rear13.6-28Reference
Length343 cmReference
Width166 cmReference
Height (ROPS)259 cmReference
Height (cab)240 cmReference
ROPS Weight1951 kgReference
Cab Weight2194 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
