Tractor · 2009Unverified

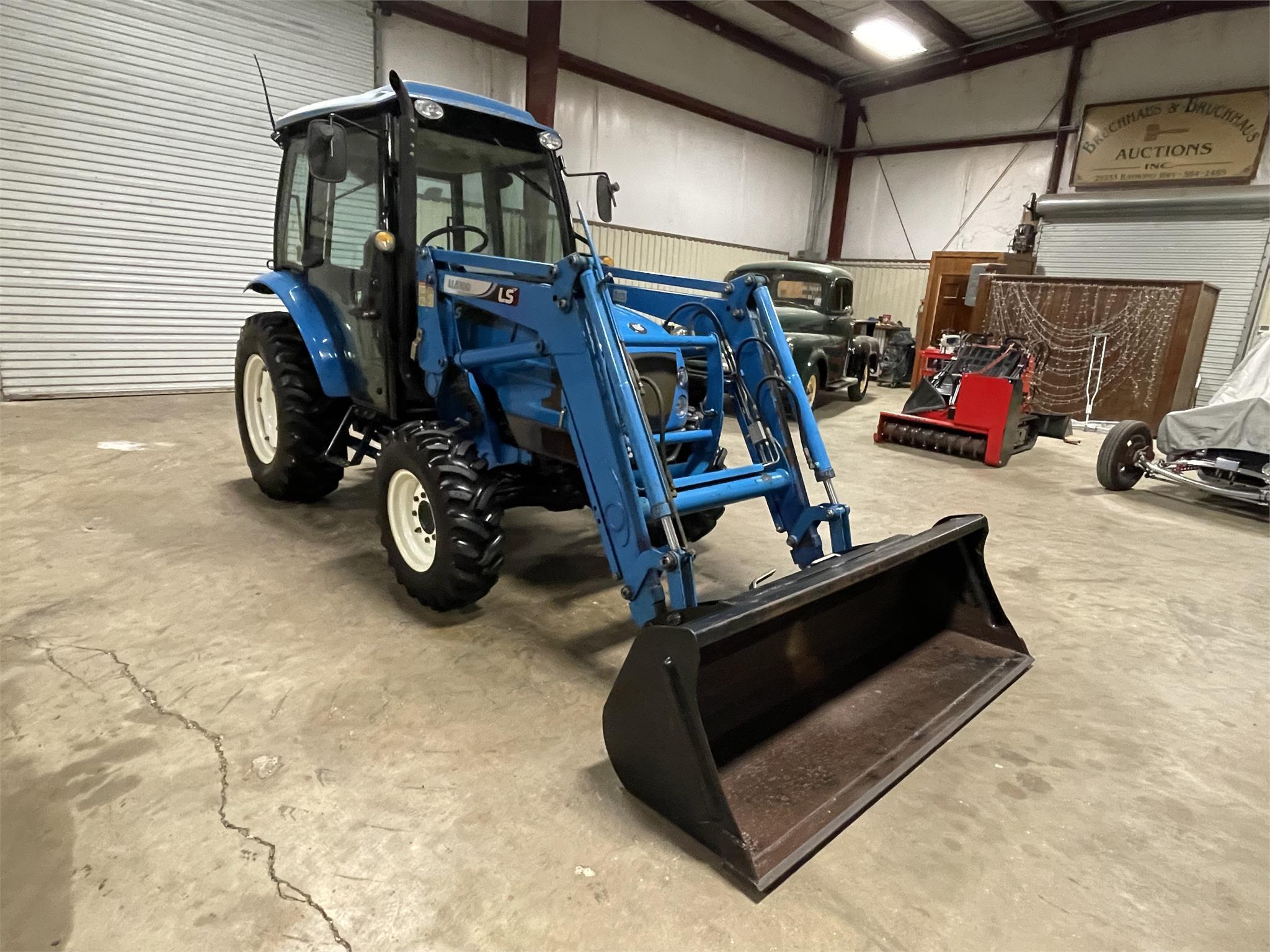

LS U5020
LS U5020 — U Series · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
4280 to 4700 pounds
Hover a source tag to verify
Overview
ManufacturerLSReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS. Cab optional with air-conditioning.Reference
Engine
Mitsibishi 2.5L 4-cyl dieselReference
Fuel tank60.2 LReference
Engine (gross)35.0 kWReference
Mitsibishi S4QLReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke88 x 103 mmReference
Power (gross)35.0 kWReference
Fuel systemindirect injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchro shuttleReference
Typesynchro shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
Pump flow36.3 lpmReference
Total flow54.9 lpmReference
Steering flow18.5 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift1850 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase193 cmReference
Weight4280 to 4700 poundsReference
Front tire9.5-16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 9.5-16. Rear: 13.6-24Reference
Lawn/turf front36x13.5-15Reference
Lawn/turf rear16.9x24Reference
Industrial front12x16.5Reference
Industrial rear17.5L-24Reference
Length343 cmReference
Width166 cmReference
Height (ROPS)259 cmReference
Height (cab)240 cmReference
Weight1941 kgReference
Weight2131 kgReference
LS U5020 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
LS LB3501 Backhoe
Backhoe typeLS LB3501 BackhoeReference
Digging depth261 cmReference
Reach from pivot360 cmReference
Loading height223 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1691 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
