Tractor · 2009Unverified

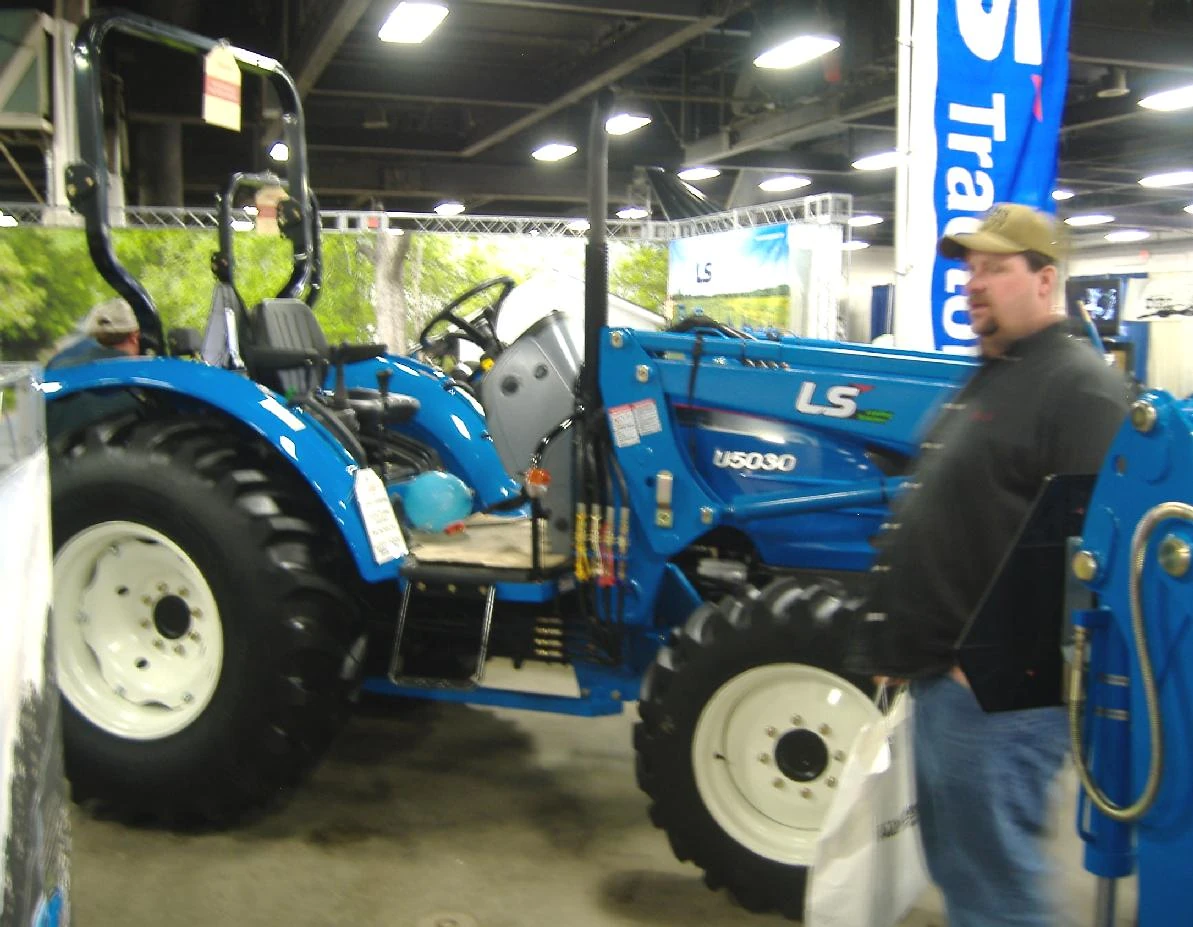

LS U5030
LS U5030 — U Series · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
4600 to 5000 pounds
Hover a source tag to verify
Overview
ManufacturerLSReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS. Cab optional with air-conditioning.Reference
Engine
Mitsibishi 3.3L 4-cyl dieselReference
Fuel tank60.2 LReference
Engine (gross)41.0 kWReference
Mitsibishi S4SReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke94 x 120 mmReference
Power (gross)41.0 kWReference
Fuel systemindirect injectionReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchro shuttleReference
Typesynchro shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)35.8 kWReference
Pump flow37.5 lpmReference
Total flow55.6 lpmReference
Steering flow18.2 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift1850 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase204 cmReference
Weight4600 to 5000 poundsReference
Front tire9.5-20Reference
Rear tire16.9-24Reference
Standard tires (ag)Front: 9.5-20. Rear: 16.9-24Reference
Industrial front10.5x80-18Reference
Industrial rear19.5L-24Reference
Length343 cmReference
Width169 cmReference
Height (ROPS)259 cmReference
Height (cab)240 cmReference
Weight2086 kgReference
Weight2268 kgReference
LS U5030 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
LS LB3502 Backhoe
Backhoe typeLS LB3502 BackhoeReference
Digging depth292 cmReference
Reach from pivot393 cmReference
Loading height241 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2509 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
