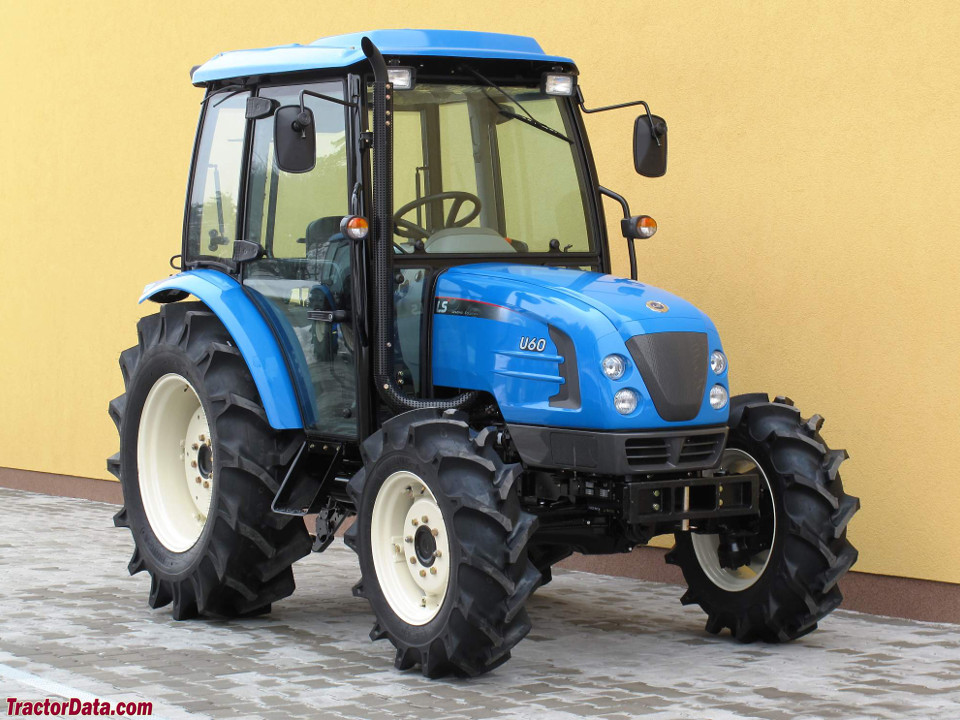

LS U60

LS U60 — U SeriesUtility tractor · 49 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
49 hp
Weight
4288 to 4850 pounds
Hover a source tag to verify

Overview

ManufacturerLSReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
ROPS. Cab optional.Reference

Engine

LS 2.5L 4-cyl dieselReference
Fuel tank79.9 LReference
Engine41.8 kWReference
LS S4QLTReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke88 x 103 mmReference
EmissionsTier 3Reference
Power41.8 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference

Transmission

16-speed synchronized shuttleReference
32-speed synchronized shuttle creeperReference
Typesynchronized shuttleReference
Gears16 forward and reverseReference
Typesynchronized shuttle creeperReference
Gears32 forward and 16 reverseReference

PTO & Hydraulics

PTO (claimed)36.8 kWReference
Rear valves2Reference
Front valves2Reference
Pump flow34.4 lpmReference
Total flow52.2 lpmReference
Steering flow17.8 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference

Dimensions

Wheelbase204 cmReference
Weight4288 to 4850 poundsReference
Front tire11.2-20Reference
Rear tire14.9-28Reference
Ag front11.2-20Reference
Ag rear14.9-28Reference
Length343 cmReference
Width166 cmReference
Height (ROPS)259 cmReference
Height (cab)242 cmReference
ROPS Weight1945 kgReference
Cab Weight2199 kgReference

Electrical

GroundnegativeReference
Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
