Tractor · 2016Unverified

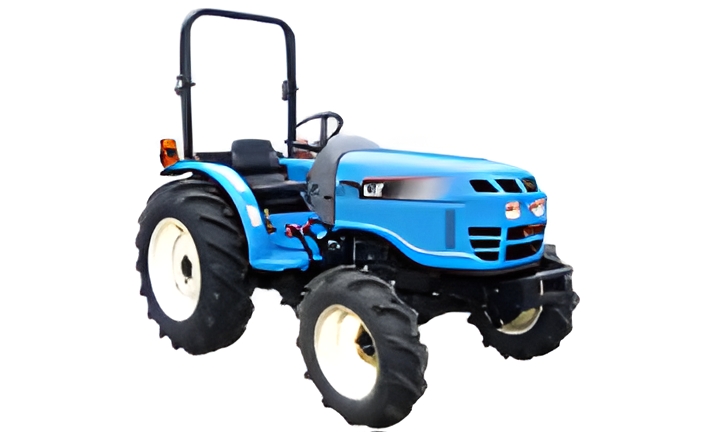

LS XG3025
LS XG3025 — XG Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1104 kg
Hover a source tag to verify
Overview
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine (gross)18.2 kWReference
Mitsubishi S3L2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke78 x 92 mmReference
Power (gross)18.2 kWReference
Compression22:1Reference
Rated RPM2500Reference
Torque76.3 NmReference
Torque RPM2000Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed sync shuttleReference
hydrostaticReference
Typesync shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
Four gears in three ranges with left-hand shuttle lever. Tractor must be stopped, and clutch used, to shift gears or range.Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)14.3 kWReference
Hydro PTO (claimed)12.8 kWReference
Typeopen centerReference
Pump flow29.9 lpmReference
Total flow47.3 lpmReference
Steering flow17.4 lpmReference
Rear TypeIReference
Rear lift (at ends)820 kgReference
Rear lift (at 24"/610mm)650 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2509Reference
Dimensions
Wheelbase167 cmReference
Weight1104 kgReference
Front tire7-14Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference
Lawn/turf front25x8.5-14Reference
Lawn/turf rear41x14-20Reference
Industrial front25x8.5-14Reference
Industrial rear43x16-20Reference
Length299 cmReference
Width137 cmReference
Height (ROPS)223 cmReference
Front tread111 to 120 cmReference
Rear tread109 to 132 cmReference
LS XG3025 attachments
front-end loaderReference
backhoeReference
XG3025 Serial Numbers
Location:Serial number plate on the right side of the tractor frame, above the front axle.Reference
Electrical
Charging amps50Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
LS LB1106 Backhoe
Backhoe typeLS LB1106 BackhoeReference
Transport height196 cmReference
Digging depth193 cmReference
Reach from pivot287 cmReference
Loading height162 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1277 kgReference
Speeds
With 11.2-24 R1 rear tires. Reverse speeds are 5% slower than forward.Reference
With 11.2-24 R1 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
