Tractor · 2015Unverified

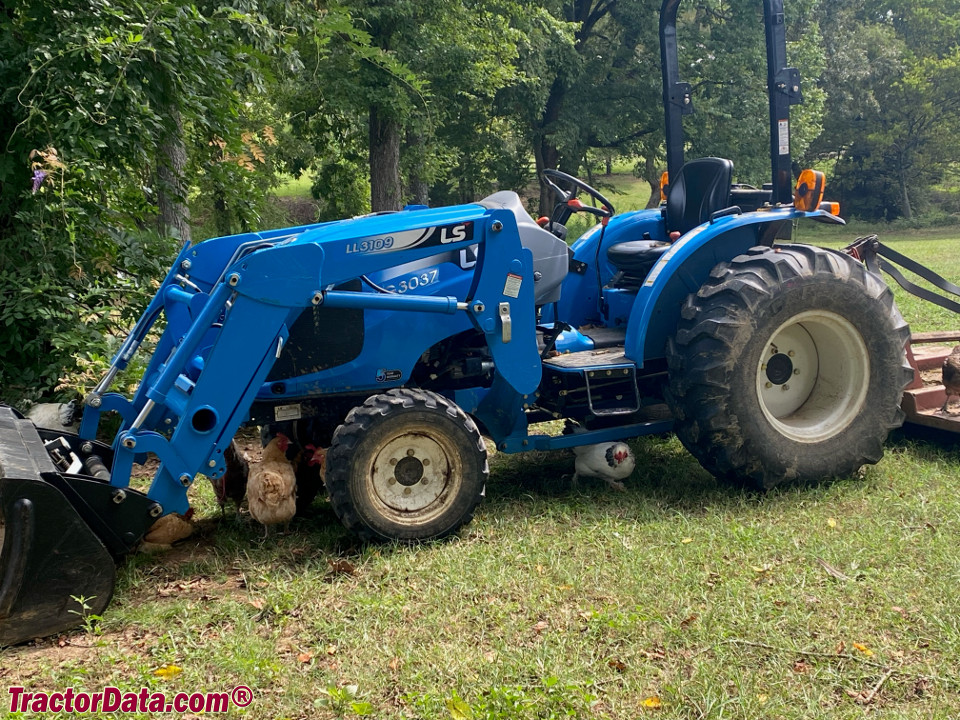

LS XG3037

Name: LS XG3037
Brand: LS

LS XG3037 — XG Series · 36 hp. Reference specifications; pending source verification.

The LS XG3037 is a tractor model with a rated power of 36 hp, positioning it at the lighter end of its class. It was produced from 2015 to 2018. This model features a 3-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. Its listed operating weight falls within the range of 2855 to 2882 pounds, and it is suitable for operations on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

36 hp

Weight

2855 to 2882 pounds

Catalogue coverage

Variants represented

Richest spec table

78 rows

Recorded power

36 hp

Recorded weight

1307 kg

Transmissions

12-speed sync shuttle

Production years

2015-2018

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLSReference

Compact Utility tractorReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Shibaura 1.5L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine (gross)27.0 kWReference

Shibaura N843TReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke84 x 90 mmReference

Power (gross)27.0 kWReference

Compression22.2:1Reference

Rated RPM2600Reference

Torque112.0 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed sync shuttleReference

hydrostaticReference

Gear Weight1307 kgReference

Typesync shuttleReference

Gears12 forward and reverseReference

Clutchdry discReference

Four gears in three ranges with left-hand shuttle lever. Tractor must be stopped, and clutch used, to shift gears or range.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Gear PTO (claimed)23.0 kWReference

Hydro PTO (claimed)21.6 kWReference

Typeopen centerReference

Pump flow31.0 lpmReference

Gear Total flow46.9 lpmReference

Hydro Total flow50.7 lpmReference

Gear Steering flow15.9 lpmReference

Hydro Steering flow19.7 lpmReference

Rear TypeIReference

Rear lift (at ends)820 kgReference

Rear lift (at 24"/610mm)650 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2509Reference

Dimensions

Wheelbase171 cmReference

Weight2855 to 2882 poundsReference

Front tire7-14Reference

Rear tire11.2-24Reference

Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference

Lawn/turf front25x8.5-14Reference

Lawn/turf rear41x14-20Reference

Industrial front25x8.5-14Reference

Industrial rear43x16-20Reference

Length312 cmReference

Width140 cmReference

Height (ROPS)226 cmReference

Hydro Weight1295 kgReference

Front tread111 to 120 cmReference

Rear tread109 to 132 cmReference

LS XG3037 attachments

front-end loaderReference

backhoeReference

Electrical

Charging amps85Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

LS LB1105 Backhoe

Backhoe typeLS LB1105 BackhoeReference

Transport height196 cmReference

Digging depth193 cmReference

Reach from pivot287 cmReference

Loading height161 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1277 kgReference

Speeds

With 11.2-24 R1 rear tires. Reverse speeds are 5% slower than forward.Reference

With 11.2-24 R1 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
