Tractor · 2016Unverified

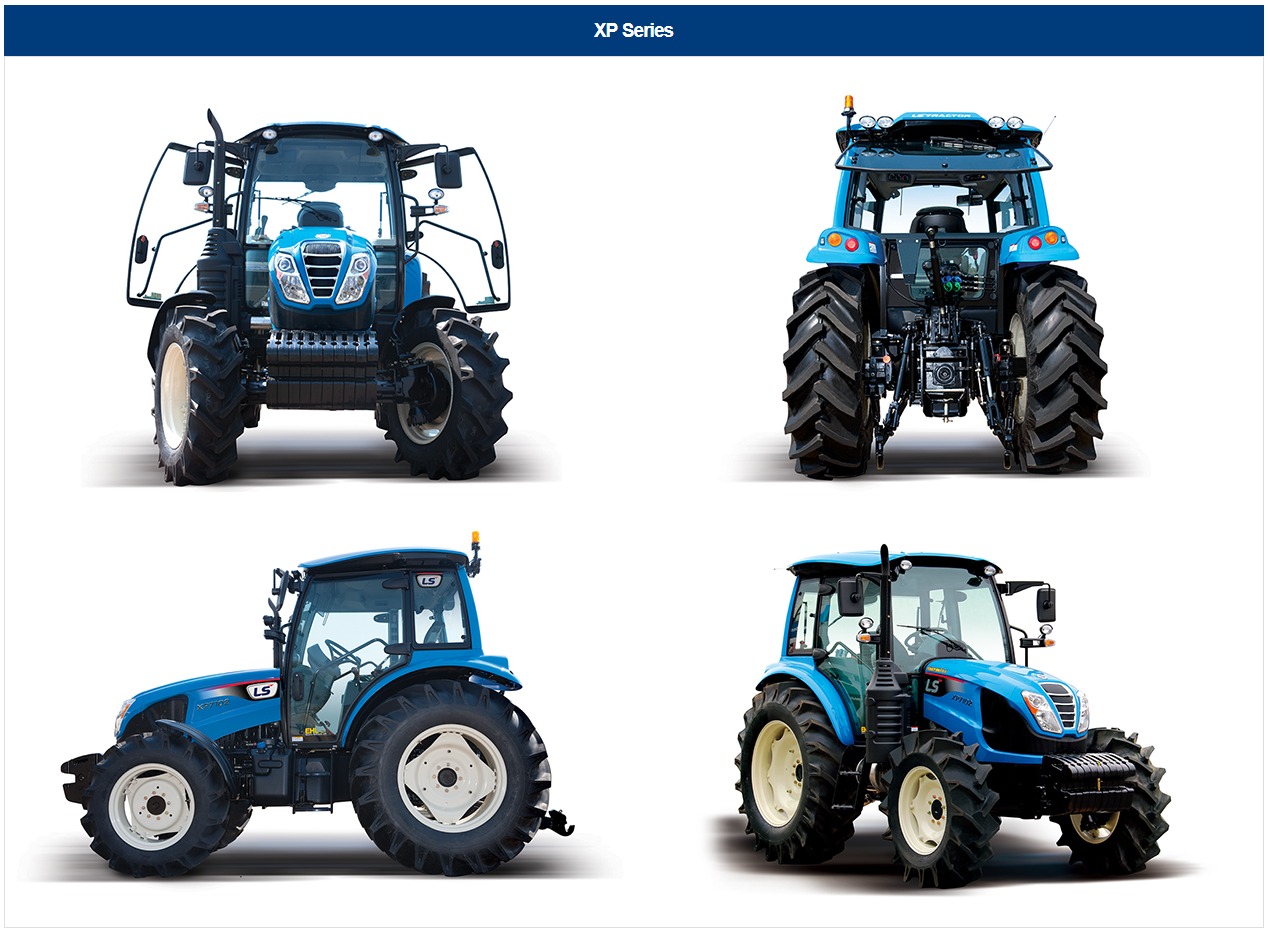

LS XP7086
LS XP7086 — XP Series · 73 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
73 hp
Weight
3370 kg
Hover a source tag to verify
Overview
ManufacturerLSReference
Utility tractorReference
Four-wheel driveReference
Cab standard.Reference
Engine
FPT 3.4L 4-cyl dieselReference
Fuel tank115.1 LReference
Engine64.1 kWReference
FPT F5GReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 110 mmReference
EmissionsTier 4Reference
Power64.1 kWReference
Fuel systemcommon rail direct injectionReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchro shuttleReference
40-speed power shuttleReference
Typesynchro shuttleReference
Gears12 forward and reverseReference
Typepower shuttleReference
Gears40 forward and reverseReference
PTO & Hydraulics
PTO (claimed)54.3 kWReference
Pump flow60.9 lpmReference
Rear TypeIIReference
Controlposition controlReference
Rear lift2800 kgReference
Rear lift3800 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000Reference
Dimensions
Wheelbase228 cmReference
Weight3370 kgReference
Front tire12.2-24Reference
Rear tire18.4-30Reference
Standard tires (ag)Front: 12.2-24. Rear: 18.4-30Reference
Length435 cmReference
Width200 cmReference
Clearance (front axle)50 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
