Tractor · 2016Unverified
LS XP7102

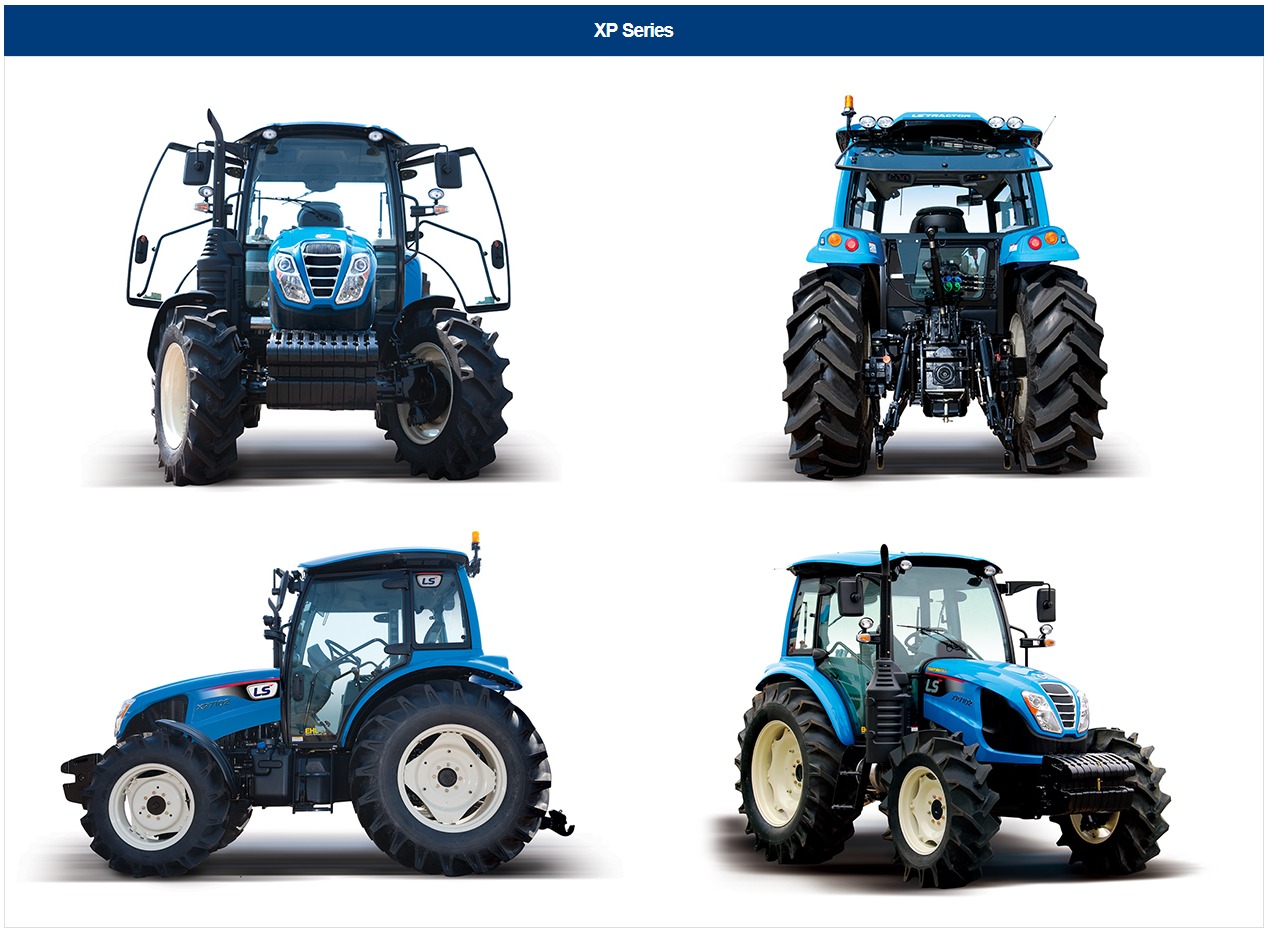

LS XP7102 — XP Series · 87 hp. Reference specifications; pending source verification.
The LS XP7102 is a tractor with a rated output of 87 hp, placing it in the middle of its class in terms of power. It was manufactured in 2016 and features a 4-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system via a 12-speed gearbox. The tractor's weight is 3519 kg. It is designed for use in areas up to approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Weight
3519 kg
Catalogue coverage
Variants represented
2
Richest spec table
43 rows
Recorded power
87 hp
Recorded weight
3519 kg
Transmissions
12-speed synchro shuttle
Production years
2016-2016
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerLSReference
Utility tractorReference
Four-wheel driveReference
Cab standard.Reference
Engine
3.4L 4-cyl dieselReference
Fuel tank115.1 LReference
Engine76.1 kWReference
F5GReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke99 x 110 mmReference
EmissionsTier 4Reference
Power76.1 kWReference
Fuel systemcommon rail direct injectionReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchro shuttleReference
40-speed power shuttleReference
Typesynchro shuttleReference
Gears12 forward and reverseReference
Typepower shuttleReference
Gears40 forward and reverseReference
PTO & Hydraulics
PTO (claimed)64.7 kWReference
Pump flow60.9 lpmReference
Rear TypeIIReference
Controlposition controlReference
Rear lift2800 kgReference
Rear lift3800 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000Reference
Dimensions
Wheelbase228 cmReference
Weight3519 kgReference
Front tire13.6-24Reference
Rear tire18.4-34Reference
Standard tires (ag)Front: 13.6-24. Rear: 18.4-34Reference
Length435 cmReference
Width199 cmReference
Clearance (front axle)50 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
