Tractor · 2013Unverified

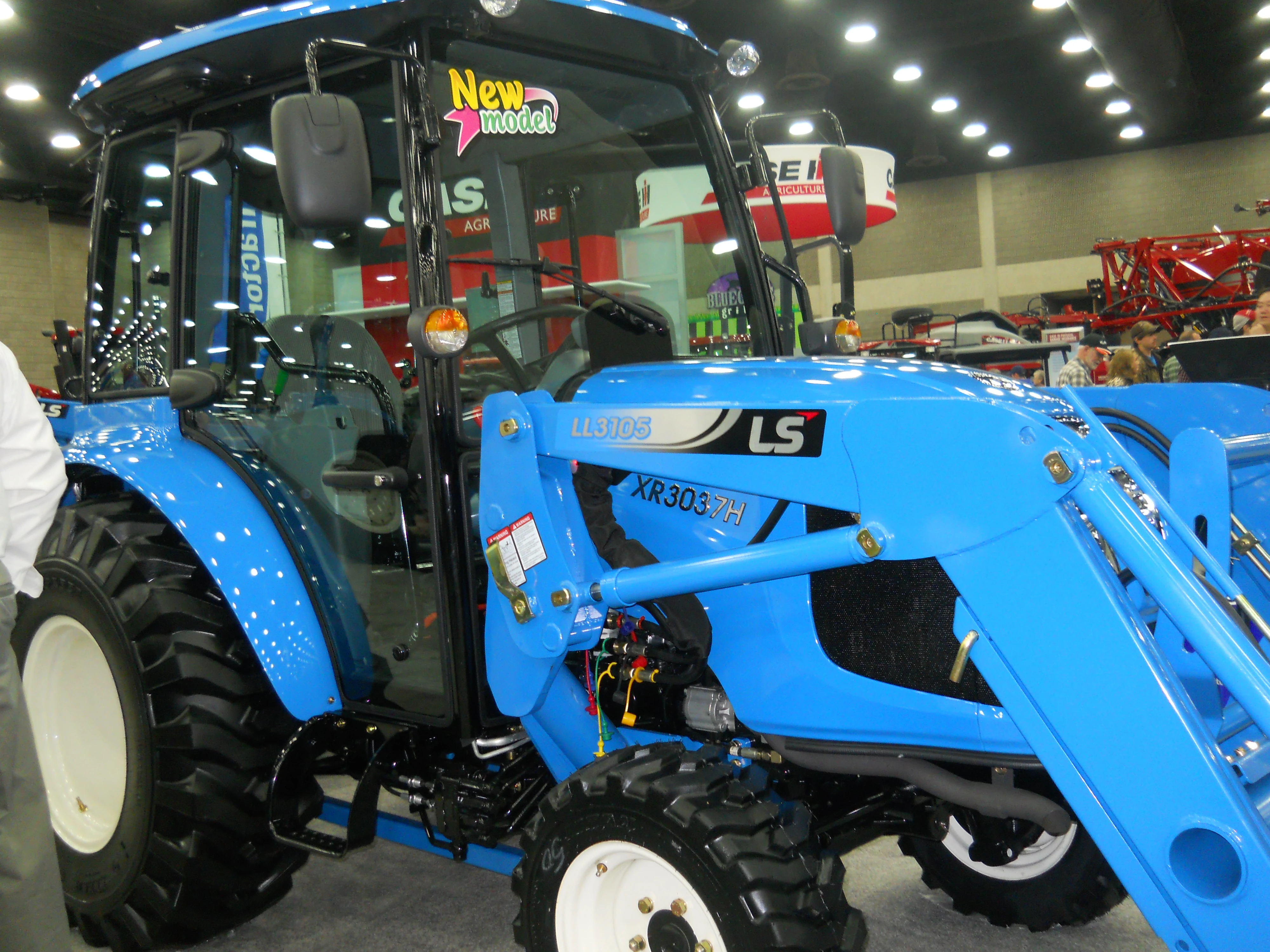

LS XR3037H
LS XR3037H — XR Series · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
3220 to 3590 pounds
Hover a source tag to verify
Overview
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS. Cab optional with air-conditioning.Reference
Engine
Shibarua 1.5L 3-cyl dieselReference
Fuel tank39.7 LReference
Fuel tank46.9 LReference
Engine (gross)27.0 kWReference
Shibarua N843T-FReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
EmissionsTier 4Reference
Emission controlexhaust-gas recirculation (EGR)Reference
Power (gross)27.0 kWReference
Fuel systemindirect injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)21.8 kWReference
Pump flow31.0 lpmReference
Total flow50.7 lpmReference
Steering flow19.7 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift820 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependent (optional)Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase167 cmReference
Weight3220 to 3590 poundsReference
Front tire7-14Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference
Lawn/turf front25x8.5-14Reference
Lawn/turf rear41x14-20Reference
Industrial front25x8.5-14Reference
Industrial rear43x16-20Reference
Length307 cmReference
Width152 cmReference
Height (ROPS)228 cmReference
Height (cab)220 cmReference
Weight1460 kgReference
Weight1628 kgReference
LS XR3037H attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps85Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
LS LB2103 Backhoe
Backhoe typeLS LB2103 BackhoeReference
Digging depth227 cmReference
Reach from pivot317 cmReference
Loading height183 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1215 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
