Tractor · 2015Unverified
LS XR3135
LS XR3135 — XR3100 Series · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
3219 to 3655 pounds
Hover a source tag to verify
Overview
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with available air-conditioning.Reference
Engine
LS 1.9L 3-cyl dieselReference
ROPS Fuel tank40.1 LReference
Cab Fuel tank46.9 LReference
Engine (gross)26.1 kWReference
LS L3C19-TReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke88 x 103 mmReference
EmissionsTier IVReference
Power (gross)26.1 kWReference
Fuel systemcommon rail direct injectionReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchronized shuttleReference
hydrostaticReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Hydro PTO (claimed)20.9 kWReference
Shuttle PTO (claimed)22.4 kWReference
Valves2Reference
Pump flow31.0 lpmReference
Shuttle Total flow46.6 lpmReference
Hydro Total flow51.9 lpmReference
Shuttle Steering flow15.5 lpmReference
Hydro Steering flow20.8 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)820 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase167 cmReference
Weight3219 to 3655 poundsReference
Front tire7-14Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference
Lawn/turf front25x8.5-14Reference
Lawn/turf rear41x14-20Reference
Industrial front25x8.5-14Reference
Industrial rear43x16-20Reference
Length315 cmReference
Width152 cmReference
Height (ROPS)236 cmReference
Height (cab)223 cmReference
ROPS Shuttle1460 kgReference
ROPS Hydro1490 kgReference
Cab Shuttle1627 kgReference
Cab Hydro1657 kgReference
LS XR3135 attachments

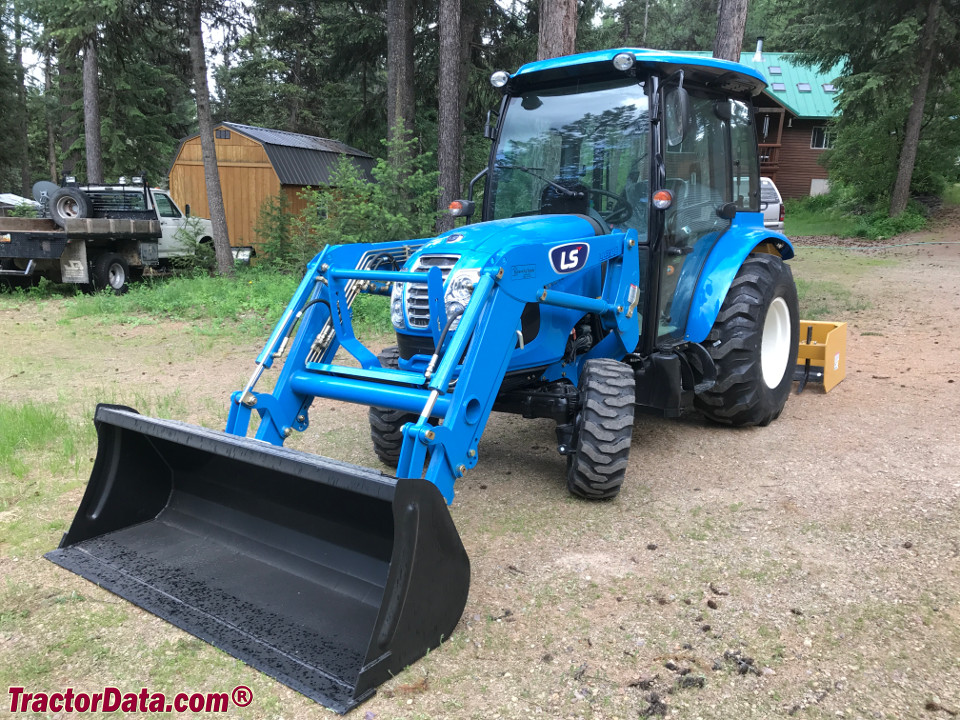

front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70Reference
Charging volts12Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference

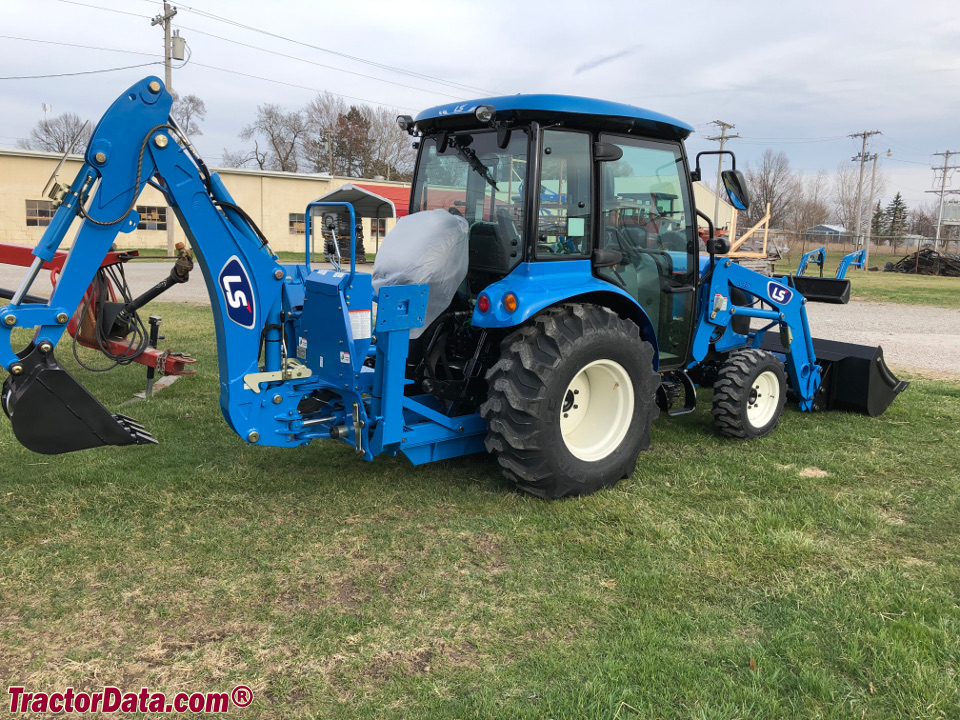

LS LB2104 Backhoe
Backhoe typeLS LB2104 BackhoeReference
Transport height212 cmReference
Digging depth228 cmReference
Reach from pivot318 cmReference
Loading height183 cmReference
Bucket Rotation1808°Reference
Swing Arc1808°Reference
Bucket force1212 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
