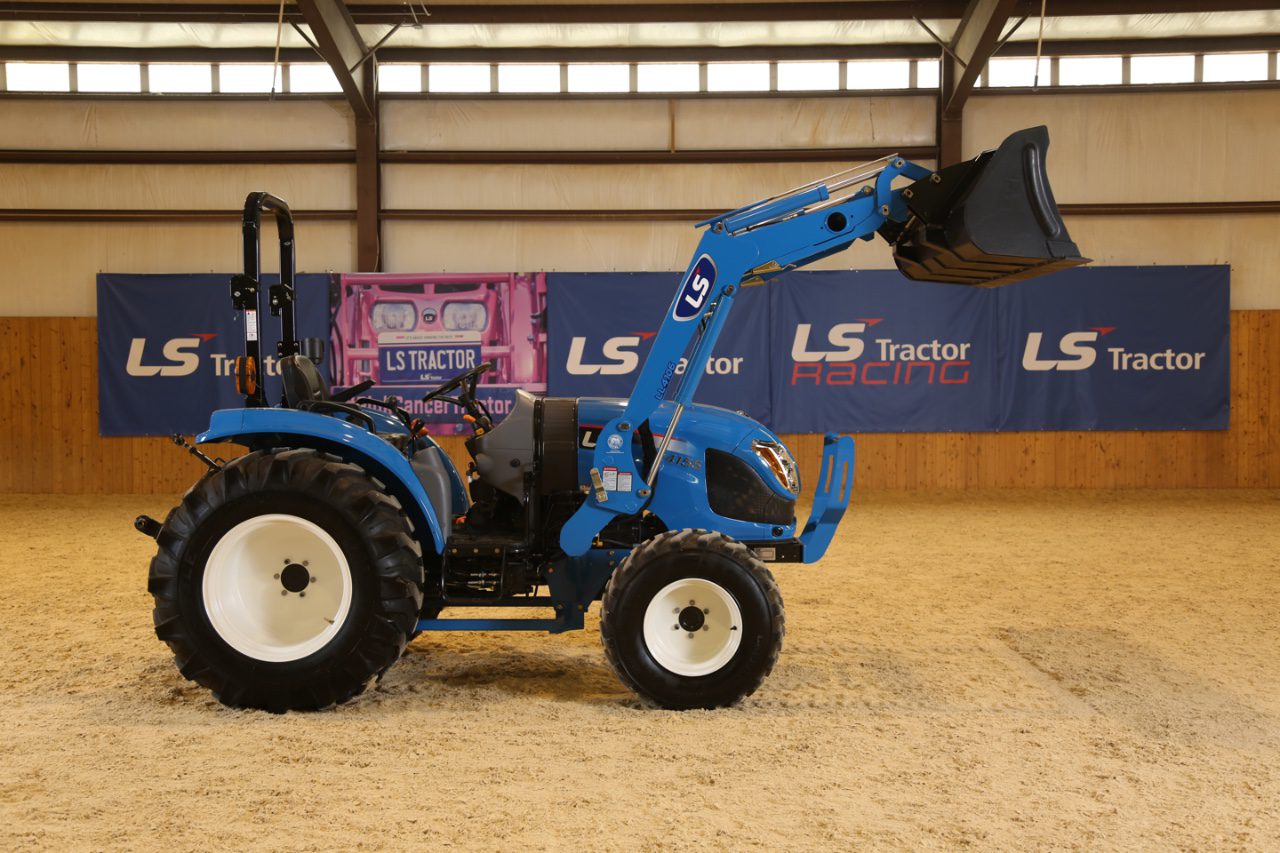

LS XR3140
LS XR3140 — XR3100 Series · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
1660 kg
Hover a source tag to verify
Overview
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
LS 1.9L 3-cyl dieselReference
Fuel tank46.9 LReference
Engine (gross)29.8 kWReference
LS L3C19-TReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke88 x 103 mmReference
EmissionsTier IVReference
Power (gross)29.8 kWReference
Fuel systemcommon rail direct injectionReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Valves2Reference
Pump flow31.0 lpmReference
Total flow51.9 lpmReference
Steering flow20.8 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)820 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase175 cmReference
Weight1660 kgReference
Front tire7-14Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 7-14. Rear: 11.2-24Reference
Lawn/turf front25x8.5-14Reference
Lawn/turf rear41x14-20Reference
Industrial front25x8.5-14Reference
Industrial rear43x16-20Reference
Length325 cmReference
Width157 cmReference
Height (cab)219 cmReference
LS XR3140 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70Reference
Charging volts12Reference
Battery volts12Reference
Attachment overview
LS LL3106 loaderReference
BackhoeReference
LS LB2104 Backhoe
Backhoe typeLS LB2104 BackhoeReference
Transport height212 cmReference
Digging depth228 cmReference
Reach from pivot318 cmReference
Loading height183 cmReference
Bucket Rotation1808°Reference
Swing Arc1808°Reference
Bucket force1212 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
