Tractor · 2013Unverified

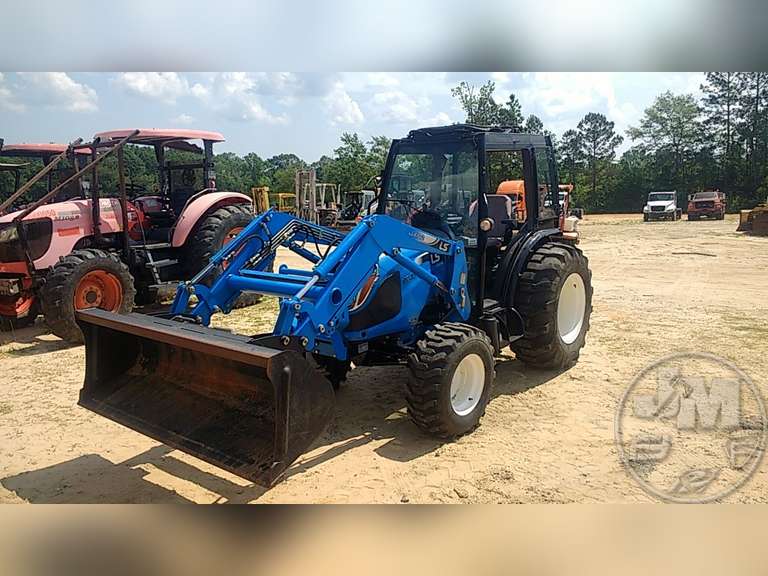

LS XR4040
LS XR4040 — XR Series · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
3870 to 4330 pounds
Hover a source tag to verify
Overview
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS. Cab optional with air-conditioning.Reference
Engine
Shibarua 2.2L 4-cyl dieselReference
Fuel tank39.7 LReference
Fuel tank46.9 LReference
Engine (gross)29.8 kWReference
Shibarua N844L-FReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
Power (gross)29.8 kWReference
Fuel systemindirect injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchro shuttleReference
Typesynchro shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)24.2 kWReference
Pump flow31.0 lpmReference
Total flow46.9 lpmReference
Steering flow15.9 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift1250 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependent (optional)Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase176 cmReference
Weight3870 to 4330 poundsReference
Front tire9.5-16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 9.5-16. Rear: 13.6-24Reference
Lawn/turf front28x8.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front12-16.5Reference
Industrial rear17.5L-24Reference
Length328 cmReference
Width158 cmReference
Height (ROPS)244 cmReference
Height (cab)231 cmReference
Weight1755 kgReference
Weight1964 kgReference
LS XR4040 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps85Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
LS LB2102 Backhoe
Backhoe typeLS LB2102 BackhoeReference
Digging depth227 cmReference
Reach from pivot317 cmReference
Loading height183 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1215 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
