Tractor · 2013Unverified

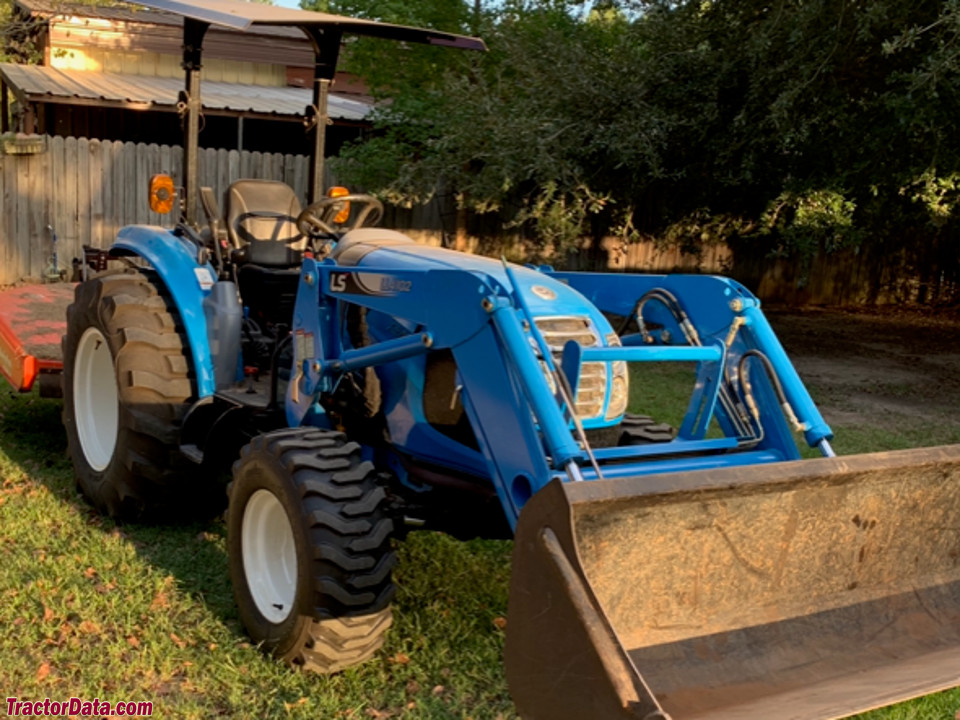

LS XR4046

Name: LS XR4046
Brand: LS

LS XR4046 — XR Series · 46 hp. Reference specifications; pending source verification.

The LS XR4046 is a tractor with a rated power of 46 hp, positioning it at the lighter end of its class. Manufactured between 2013 and 2018, the XR4046 features a 4-cylinder diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. Its operating weight ranges from 3870 to 4330 pounds. The tractor is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

46 hp

Weight

3870 to 4330 pounds

Catalogue coverage

Variants represented

Richest spec table

65 rows

Recorded power

46 hp

Recorded weight

1755 kg

Transmissions

16-speed synchro shuttle

Production years

2013-2018

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLSReference

Compact Utility tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable ROPS. Cab optional with air-conditioning.Reference

Engine

Shibarua 2.2L 4-cyl dieselReference

Fuel tank39.7 LReference

Fuel tank46.9 LReference

Engine (gross)34.3 kWReference

Shibarua N844L-FReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke84 x 100 mmReference

Power (gross)34.3 kWReference

Fuel systemindirect injectionReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed synchro shuttleReference

Typesynchro shuttleReference

Gears16 forward and reverseReference

PTO & Hydraulics

PTO (claimed)27.8 kWReference

Pump flow31.0 lpmReference

Total flow46.9 lpmReference

Steering flow15.9 lpmReference

Rear TypeIReference

Controlposition and draft controlReference

Rear lift1250 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependent (optional)Reference

Mid PTO Type2000Reference

Dimensions

Wheelbase176 cmReference

Weight3870 to 4330 poundsReference

Front tire9.5-16Reference

Rear tire13.6-24Reference

Standard tires (ag)Front: 9.5-16. Rear: 13.6-24Reference

Lawn/turf front28x8.5-15Reference

Lawn/turf rear41x14-20Reference

Industrial front12-16.5Reference

Industrial rear17.5L-24Reference

Length328 cmReference

Width158 cmReference

Height (ROPS)244 cmReference

Height (cab)231 cmReference

Weight1755 kgReference

Weight1964 kgReference

LS XR4046 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps85Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

LS LB2102 Backhoe

Backhoe typeLS LB2102 BackhoeReference

Digging depth227 cmReference

Reach from pivot317 cmReference

Loading height183 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1215 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
