Tractor · 2015Unverified

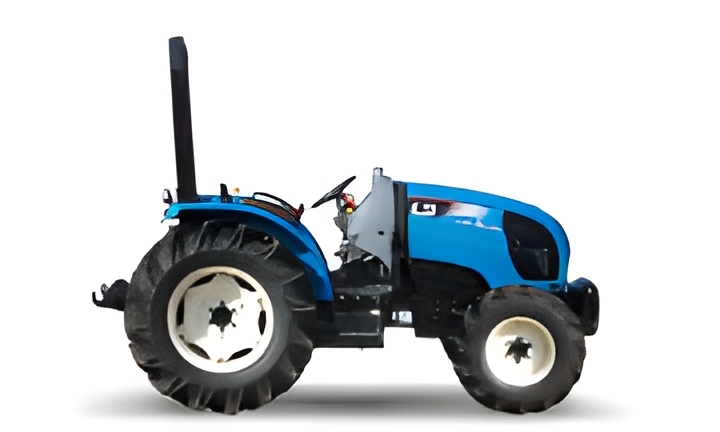

LS XR4140
LS XR4140 — XR4100 Series · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
3869 to 4446 pounds
Hover a source tag to verify
Overview
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with available air-conditioning.Reference
Engine
LS 1.9L 3-cyl dieselReference
ROPS Fuel tank40.1 LReference
Cab Fuel tank46.9 LReference
Engine (gross)29.8 kWReference
LS L3C19-TReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke88 x 103 mmReference
EmissionsTier IVReference
Power (gross)29.8 kWReference
Fuel systemcommon rail direct injectionReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchronized shuttleReference
hydrostaticReference
Typesynchronized shuttleReference
Gears16 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Hydro PTO (claimed)23.9 kWReference
Shuttle PTO (claimed)25.7 kWReference
Valves2Reference
Pump flow31.0 lpmReference
Shuttle Total flow46.6 lpmReference
Hydro Total flow51.9 lpmReference
Shuttle Steering flow15.5 lpmReference
Hydro Steering flow20.8 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)1249 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase185 cmReference
Weight3869 to 4446 poundsReference
Front tire9.5-16Reference
Rear tire13.6-24Reference
Standard tires (ag)Front: 9.5-16. Rear: 13.6-24Reference
Lawn/turf front28x8.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front12-16.5Reference
Industrial rear17.5L-24Reference
Length337 cmReference
Width158 cmReference
Height (ROPS)236 cmReference
Height (cab)233 cmReference
ROPS Shuttle1754 kgReference
ROPS Hydro1784 kgReference
Cab Shuttle1986 kgReference
Cab Hydro2016 kgReference

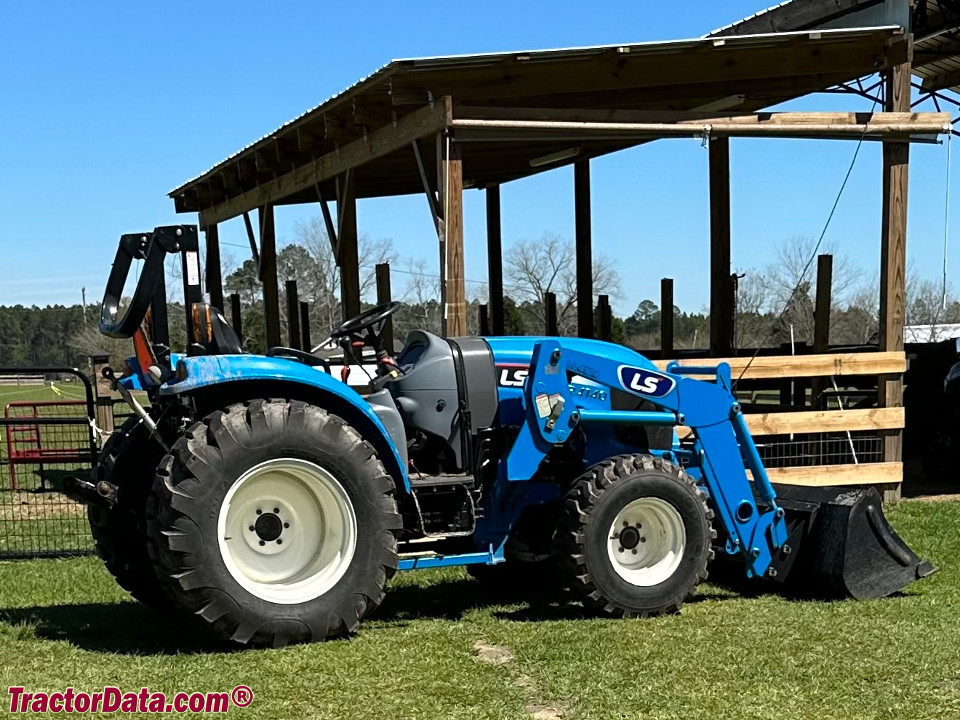

LS XR4140 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70Reference
Charging volts12Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
LS LB2105 Backhoe
Backhoe typeLS LB2105 BackhoeReference
Transport height212 cmReference
Digging depth228 cmReference
Reach from pivot318 cmReference
Loading height183 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1212 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
