Tractor · 2015Unverified

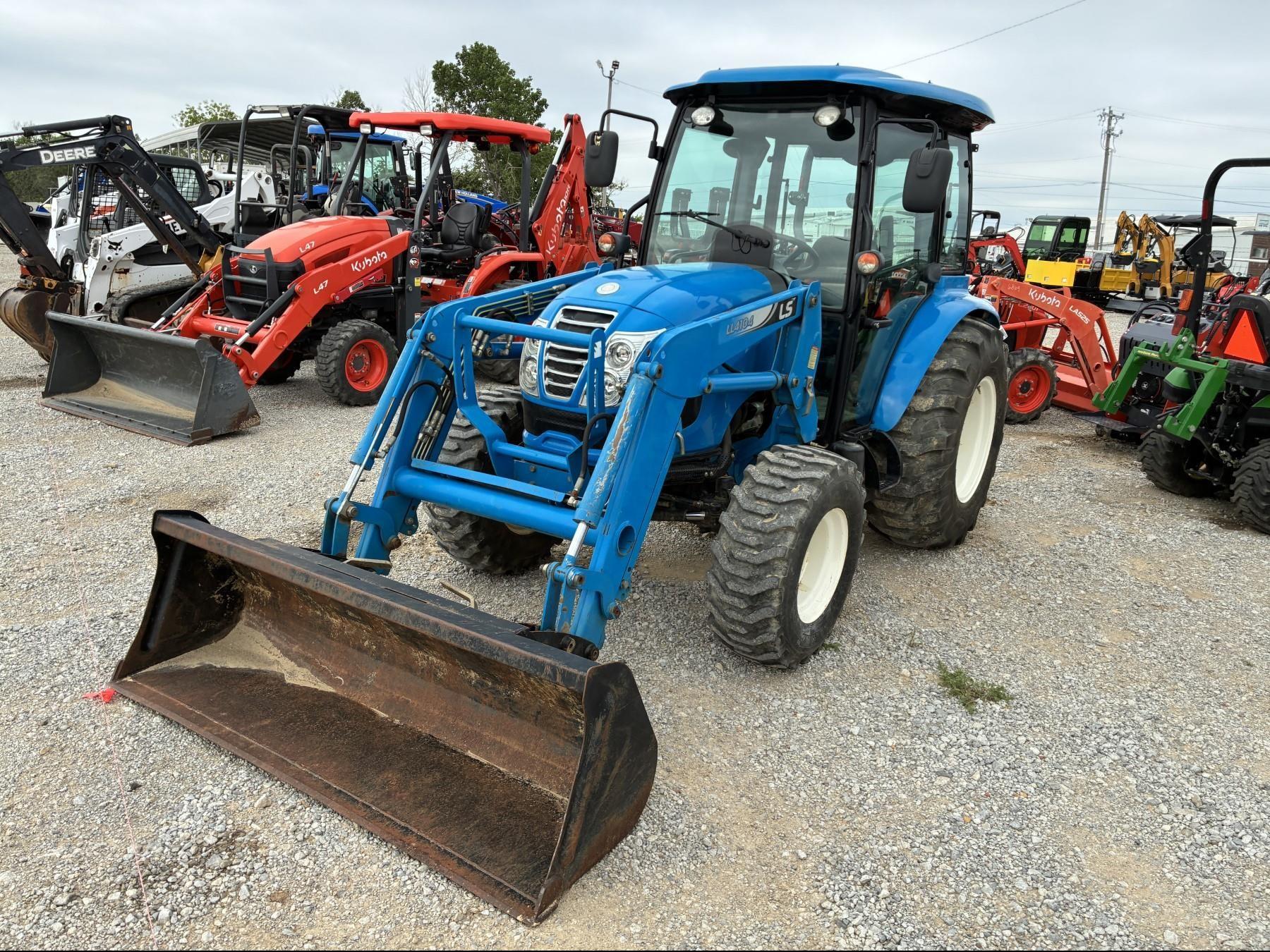

LS XR4150

Name: LS XR4150
Brand: LS

LS XR4150 — XR4100 Series · 50 hp. Reference specifications; pending source verification.

The LS XR4150 is a tractor with a rated power of 50 hp, positioning it at the lighter end of its class. The XR4150 was manufactured from 2015 to 2020. It features a 3-cylinder turbocharged diesel liquid-cooled engine paired with four-wheel drive and a hydrostatic transmission. The operating weight of the LS XR4150 is listed as 3869 to 4446 pounds, with an estimated capacity for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

50 hp

Weight

3869 to 4446 pounds

Catalogue coverage

Variants represented

Richest spec table

78 rows

Recorded power

50 hp

Transmissions

16-speed synchronized shuttle

Production years

2015-2020

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLSReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with available air-conditioning.Reference

Engine

LS 1.9L 3-cyl dieselReference

ROPS Fuel tank40.1 LReference

Cab Fuel tank46.9 LReference

Engine (gross)37.3 kWReference

LS L3C19-TReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.9 LReference

Bore/Stroke88 x 103 mmReference

EmissionsTier IVReference

Power (gross)37.3 kWReference

Fuel systemcommon rail direct injectionReference

Air cleanerdryReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed synchronized shuttleReference

hydrostaticReference

Typesynchronized shuttleReference

Gears16 forward and reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Hydro PTO (claimed)29.8 kWReference

Shuttle PTO (claimed)32.1 kWReference

Valves2Reference

Pump flow31.0 lpmReference

Shuttle Total flow46.6 lpmReference

Hydro Total flow51.9 lpmReference

Shuttle Steering flow15.5 lpmReference

Hydro Steering flow20.8 lpmReference

Rear TypeIReference

Controlposition and draft controlReference

Rear lift (at ends)1249 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTO Type2000Reference

Dimensions

Wheelbase185 cmReference

Weight3869 to 4446 poundsReference

Front tire9.5-16Reference

Rear tire13.6-24Reference

Standard tires (ag)Front: 9.5-16. Rear: 13.6-24Reference

Lawn/turf front28x8.5-15Reference

Lawn/turf rear41x14-20Reference

Industrial front12-16.5Reference

Industrial rear17.5L-24Reference

Length337 cmReference

Width158 cmReference

Height (ROPS)236 cmReference

Height (cab)233 cmReference

ROPS Shuttle1754 kgReference

ROPS Hydro1784 kgReference

Cab Shuttle1986 kgReference

Cab Hydro2016 kgReference

LS XR4150 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps70Reference

Charging volts12Reference

Battery volts12Reference

Attachment overview

LS LL4104 loaderReference

LS LL4106 loaderReference

BackhoeReference

LS LB2105 Backhoe

Backhoe typeLS LB2105 BackhoeReference

Transport height212 cmReference

Digging depth228 cmReference

Reach from pivot318 cmReference

Loading height183 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1212 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
