Tractor · Unverified

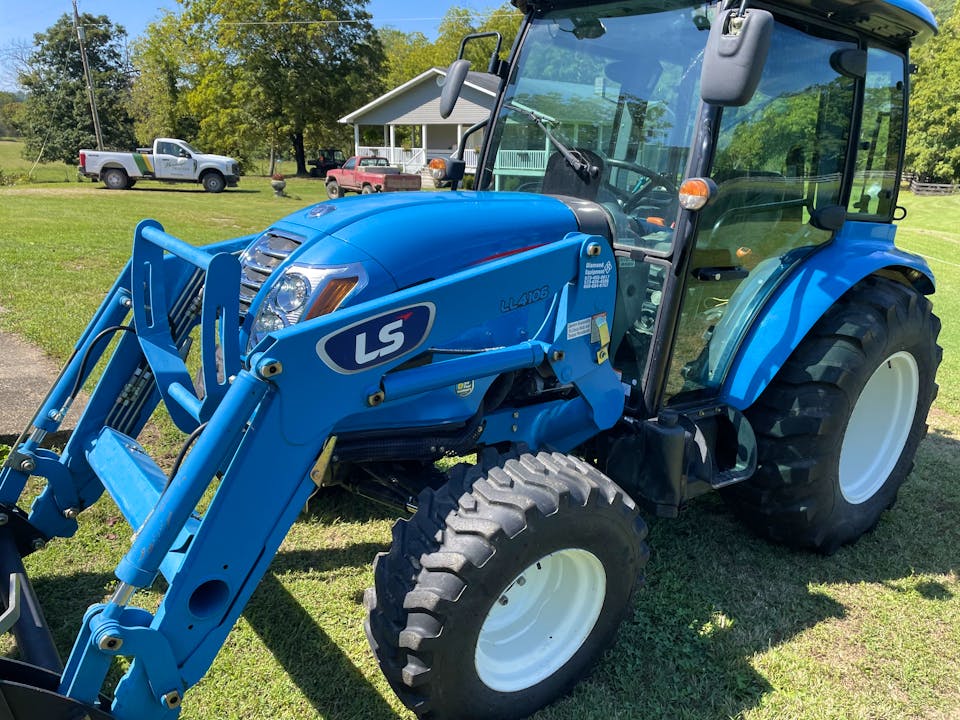

LS XR45
LS XR45 — XR SeriesCompact Utility tractor · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1928 kg
Hover a source tag to verify
Overview
ManufacturerLSReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Cab standard.Reference
Engine
LS 2.5L 4-cyl dieselReference
Fuel tank46.9 LReference
Engine32.1 kWReference
LS S4QLReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke88 x 103 mmReference
EmissionsTier 3Reference
Power32.1 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchronized shuttleReference
hydrostaticReference
Typesynchronized shuttleReference
Gears16 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)26.2 kWReference
Hydro PTO (claimed)24.9 kWReference
Rear valves1 or 2Reference
Front valves2Reference
Pump flow31.0 lpmReference
Gear Total flow46.9 lpmReference
Hydro Total flow51.9 lpmReference
Gear Steering flow15.9 lpmReference
Hydro Steering flow20.8 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift1250 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Dimensions
Wheelbase168 cmReference
Weight1928 kgReference
Front tire7-14Reference
Rear tire11.2-24Reference
Ag front7-14Reference
Ag rear11.2-24Reference
Length308 cmReference
Width152 cmReference
Height (cab)221 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
