Tractor · Unverified

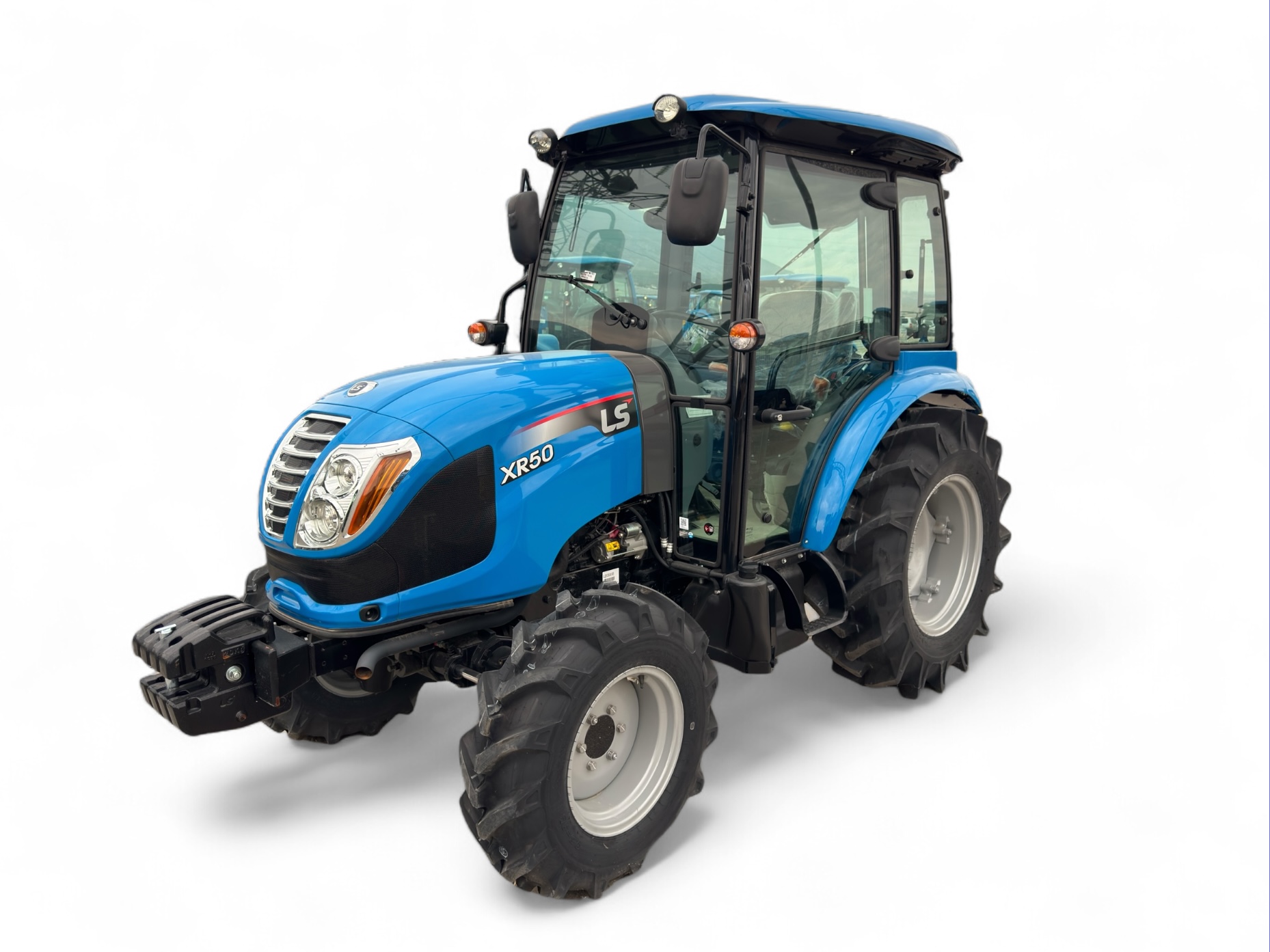

LS XR50

Name: LS XR50
Brand: LS

LS XR50 — XR SeriesCompact Utility tractor · 38 hp. Reference specifications; pending source verification.

The LS XR50 is a tractor with a rated power output of 38 hp, positioned towards the lower end of its class. It is equipped with a 4-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. Its operating weight is listed at 1965 kg, making it suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

38 hp

Weight

1965 kg

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

38 hp

Recorded weight

1965 kg

Transmissions

16-speed synchronized shuttle

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerLSReference

Compact Utility tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Cab standard.Reference

Engine

LS 2.5L 4-cyl dieselReference

Fuel tank46.9 LReference

Engine35.0 kWReference

LS S4QLReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.5 LReference

Bore/Stroke88 x 103 mmReference

EmissionsTier 3Reference

Power35.0 kWReference

Fuel systemindirect injectionReference

Air cleanerdryReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed synchronized shuttleReference

hydrostaticReference

Typesynchronized shuttleReference

Gears16 forward and reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

Gear PTO (claimed)28.6 kWReference

Hydro PTO (claimed)27.1 kWReference

Rear valves1 or 2Reference

Front valves2Reference

Pump flow31.0 lpmReference

Gear Total flow46.9 lpmReference

Hydro Total flow51.9 lpmReference

Gear Steering flow15.9 lpmReference

Hydro Steering flow20.8 lpmReference

Rear TypeIReference

Controlposition and draft controlReference

Rear lift1250 kgReference

Rear PTOindependentReference

Rear PTO Type540/750/1000Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Dimensions

Wheelbase176 cmReference

Weight1965 kgReference

Front tire9.15-16Reference

Rear tire13.6-24Reference

Ag front9.15-16Reference

Ag rear13.6-24Reference

Length328 cmReference

Width158 cmReference

Height (cab)231 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
