Tractor · 2013Unverified
LS XU5055
LS XU5055 — XU Series · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
4674 to 5121 pounds
Hover a source tag to verify
Overview
ManufacturerLSReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS. Cab optional with air-conditioning.Reference
Engine
Shibarua 2.2L 4-cyl dieselReference
Fuel tank59.8 LReference
Fuel tank20.1 LReference
Engine (gross)41.0 kWReference
Shibarua N4LDI-TAReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
EmissionsTier 4Reference
Emission controlexhaust-gas recirculation (EGR)Reference
Power (gross)41.0 kWReference
Fuel systemcommon rail direct injectionReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchro shuttleReference
Typesynchro shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)34.7 kWReference
Pump flow39.7 lpmReference
Total flow59.8 lpmReference
Steering flow20.1 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift1850 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase203 cmReference
Weight4674 to 5121 poundsReference
Front tire9.5-20Reference
Rear tire16.9-24Reference
Standard tires (ag)Front: 9.5-20. Rear: 16.9-24Reference
Lawn/turf front36x13.5-15Reference
Lawn/turf rear16.9-24Reference
Industrial front10.5/80-18Reference
Industrial rear19.5L-24Reference
Length359 cmReference
Width170 cmReference
Height (ROPS)261 cmReference
Height (cab)255 cmReference
Weight2120 kgReference
Weight2322 kgReference
LS XU5055 attachments

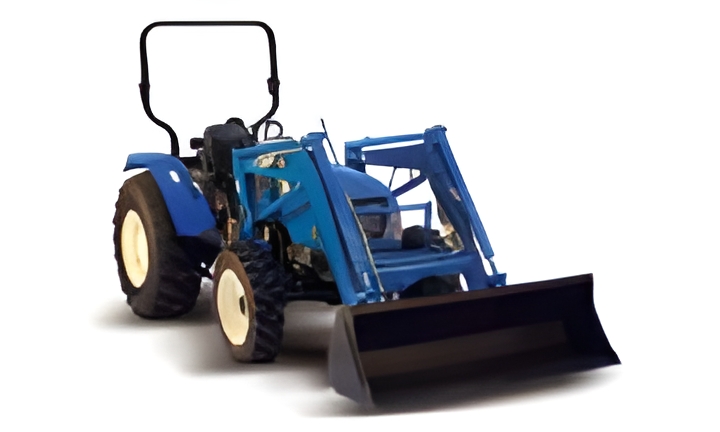

front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
LS LB3101 Backhoe
Backhoe typeLS LB3101 BackhoeReference
Digging depth239 cmReference
Reach from pivot345 cmReference
Loading height203 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1700 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
