Tractor · Unverified

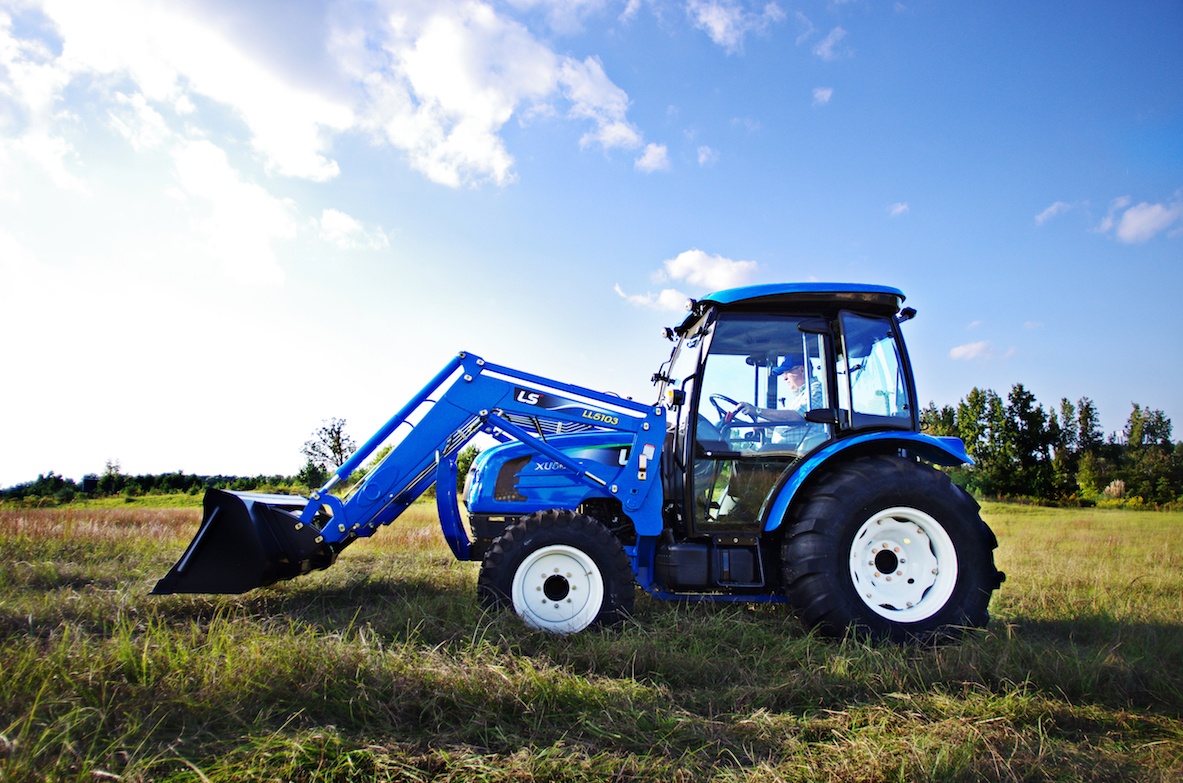

LS XU55
LS XU55 — XU SeriesUtility tractor · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
4674 to 5121 pounds
Hover a source tag to verify
Overview
ManufacturerLSReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
ROPS. Cab optional with air-conditioning.Reference
Engine
Shibaura 2.2L 4-cyl dieselReference
Fuel tank79.9 LReference
Engine41.0 kWReference
Shibaura N4LDI-TA-41Reference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
EmissionsTier 4Reference
Emission controlcooled exhaust-gas recirculation (EGR)Reference
Power41.0 kWReference
Fuel systemcommon rail direct injectionReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)34.7 kWReference
Rear valves2Reference
Front valves2Reference
Pump flow39.7 lpmReference
Total flow59.4 lpmReference
Steering flow19.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift1850 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Dimensions
Wheelbase203 cmReference
Weight4674 to 5121 poundsReference
Front tire11.2-20Reference
Rear tire14.9-30Reference
Ag front11.2-20Reference
Ag rear14.9-30Reference
Length359 cmReference
Width169 cmReference
Height (ROPS)261 cmReference
Height (cab)255 cmReference
ROPS Weight2120 kgReference
Cab Weight2322 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
