Tractor · 1962Unverified
M-R-S A-100
M-R-S A-100 — Model year 1962-19631964-19641965-19761977-1980 · 120 hp. Reference specifications; pending source verification.

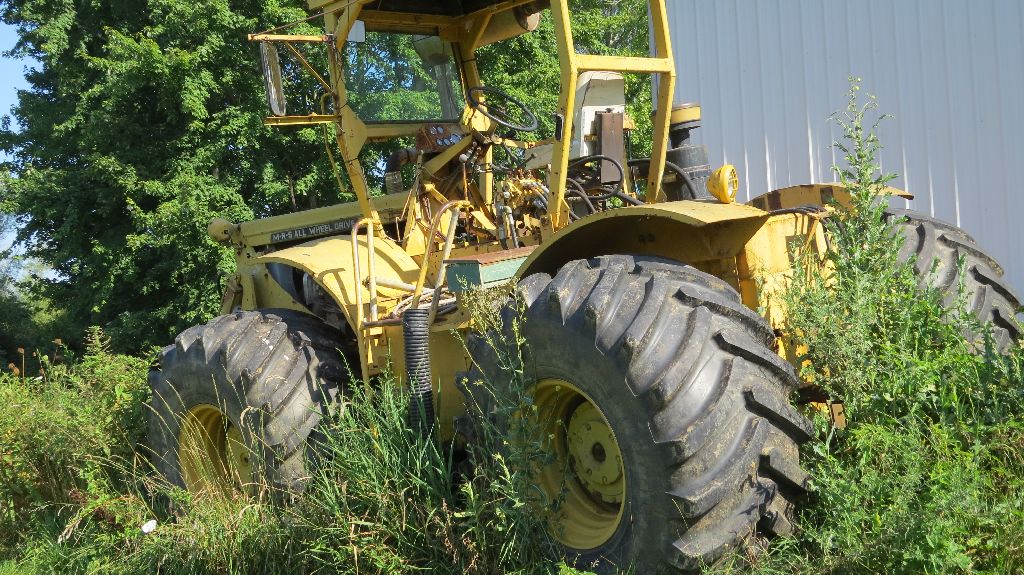

The M-R-S A-100 is a tractor with a rated power of 120 hp, placing it at the more powerful end of its class. This model was manufactured from 1962 to 1980 and features a 6-cylinder diesel liquid-cooled engine, coupled with four-wheel drive. Suitable for operations covering areas of 200–800 acres, this tractor is characterised by its engine and drivetrain specifications.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Catalogue coverage
Variants represented
2
Richest spec table
25 rows
Recorded power
120 hp
Production years
1962-1980
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerM-R-SReference
Four-wheel Drive (4WD) tractorReference
Built in Flora, Mississippi, USAReference
Drive4x4 4WDReference
Power four-wheel steeringReference
Open operator station.Reference
Engine
Cummins 7.6L 6-cyl dieselReference
Drawbar (claimed)89.5 kWReference
Cummins C-175-CIReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.6 LReference
Bore/Stroke113 x 127 mmReference
Rated RPM2500Reference
Starter typeelectricReference
Dimensions
Wheelbase254 cmReference
Front tire23.1x26Reference
Rear tire23.1x26Reference
Ag front23.1x26Reference
Ag rear23.1x26Reference
Height297 cmReference
Ground clearance44 cmReference
Front tread224 cmReference
Rear tread224 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
