Tractor · 1964Unverified
M-R-S A-110

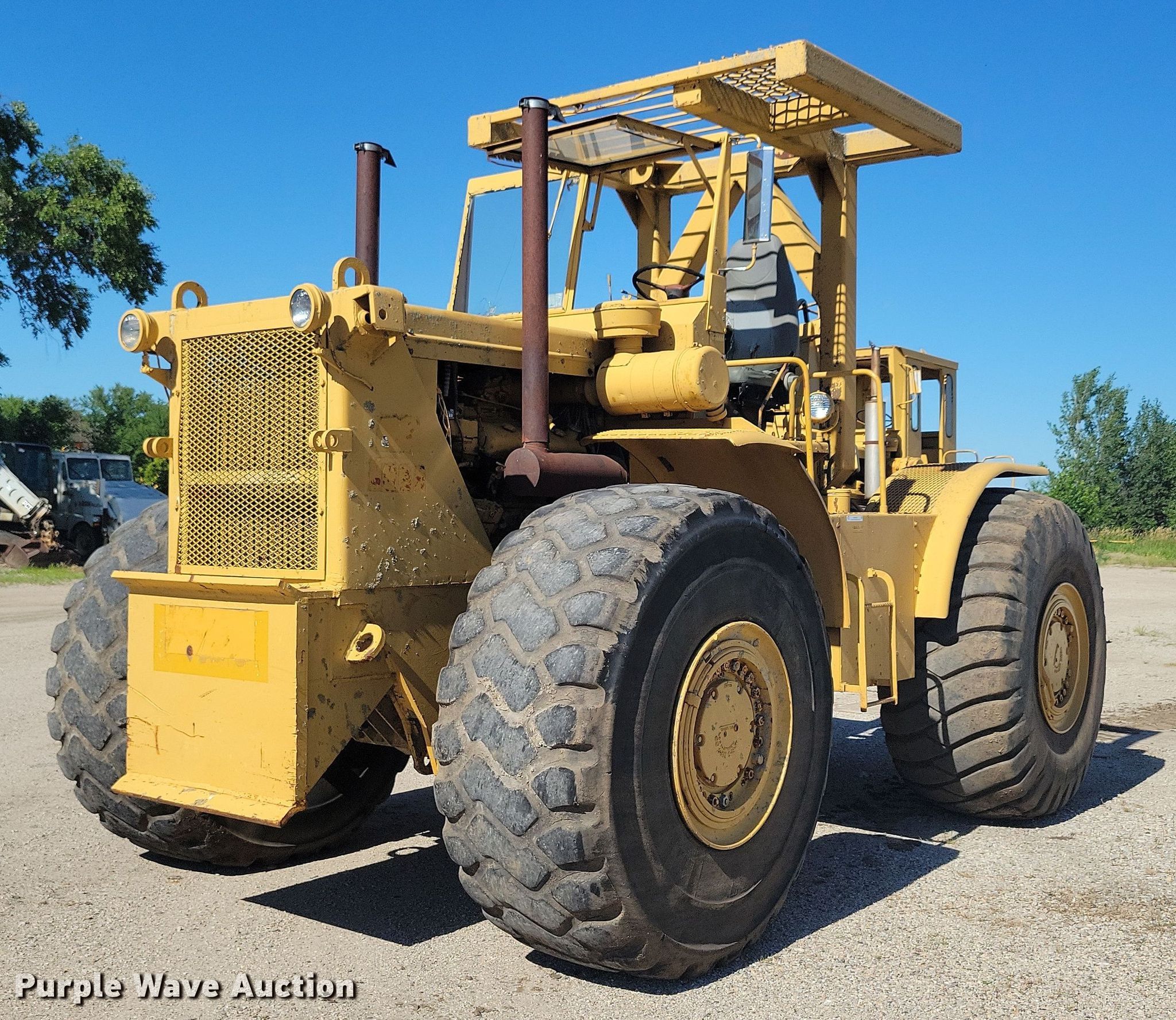

M-R-S A-110 — Four-wheel Drive (4WD) tractor. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
17690 kg
Hover a source tag to verify
Overview
ManufacturerM-R-SReference
Four-wheel Drive (4WD) tractorReference
Built in Flora, Mississippi, USAReference
Drive4x4 4WDReference
Power four-wheel steeringReference
Open operator station.Reference
Engine
International Harvester 9.4L 8-cyl dieselReference
International Harvester UDVT-573Reference
dieselReference
8-cylinderReference
liquid-cooledReference
Displacement9.4 LReference
Bore/Stroke114 x 114 mmReference
Starter typeelectricReference
Transmission
9-speedReference
Gears9 forward and 2 reverseReference
Dimensions
Wheelbase299 cmReference
Weight17690 kgReference
Front tire24.5x32Reference
Rear tire24.5x32Reference
Ag front24.5x32Reference
Ag rear24.5x32Reference
Height302 cmReference
Front tread228 cmReference
Rear tread228 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
