Tractor · 2024Unverified

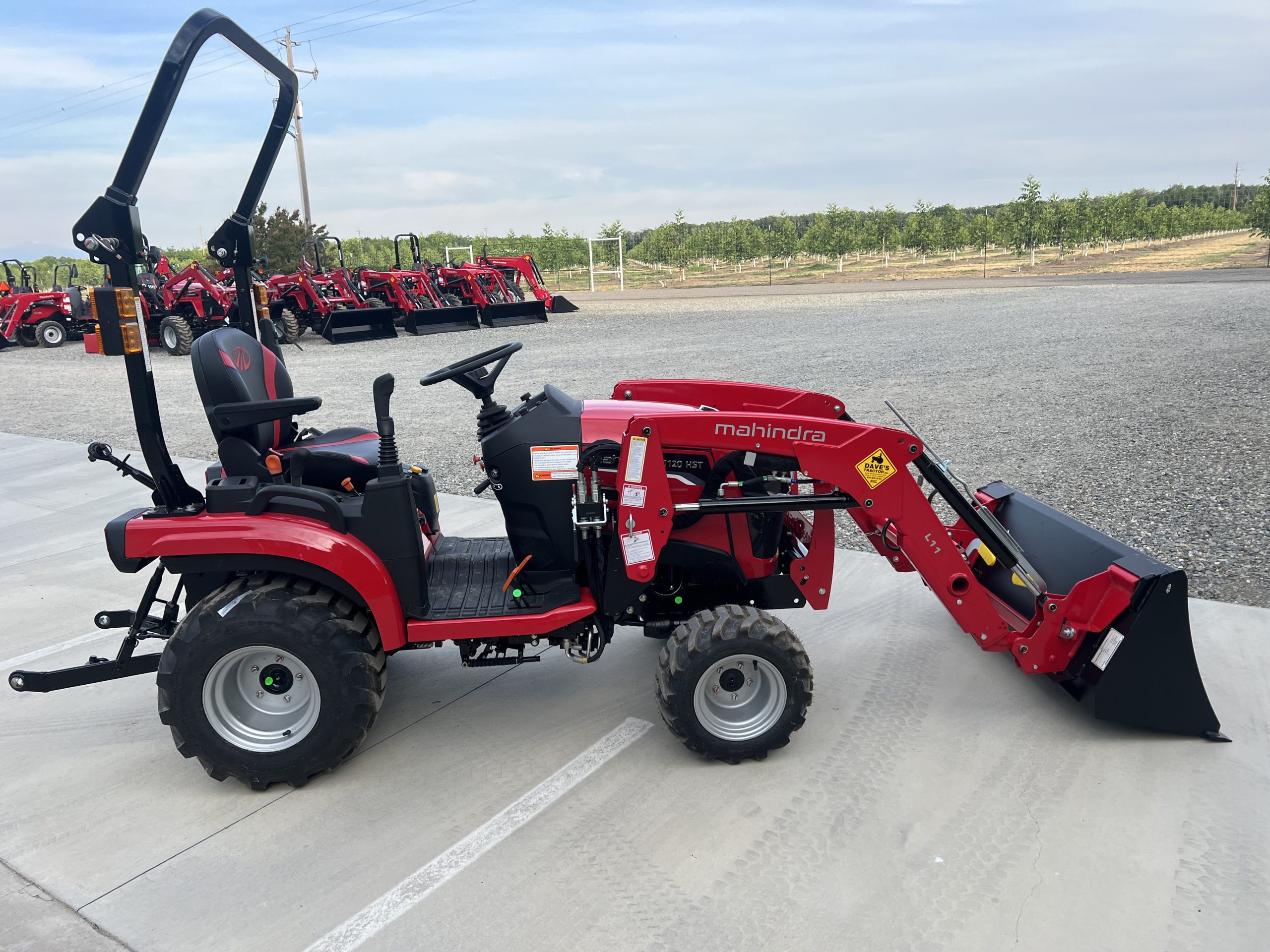

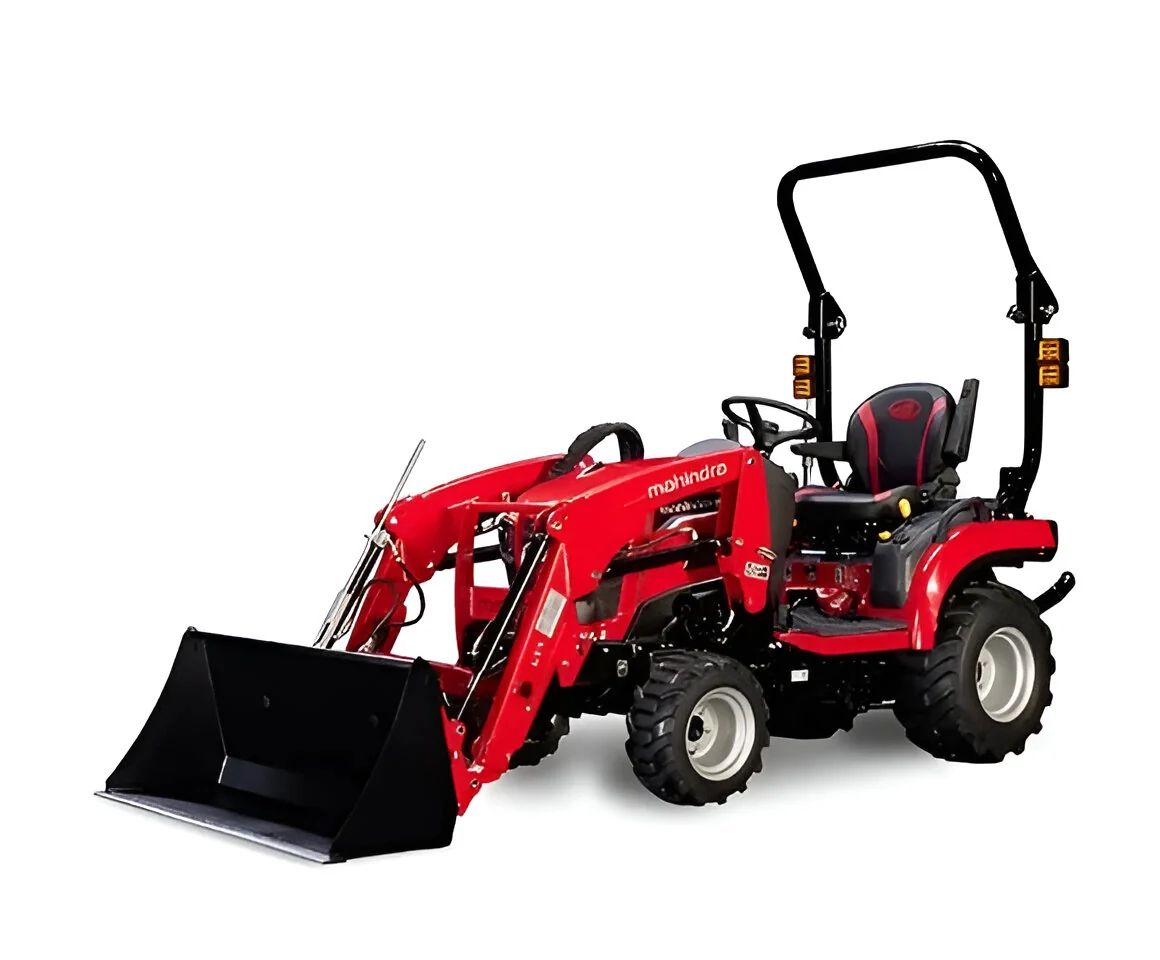

Mahindra 1120
Mahindra 1120 — Sub-Compact Utility tractor · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
1620 to 1962 pounds
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post folding ROPS. Cab optional with heater.Reference
Engine
Mitsubishi 1.1L 3-cyl dieselReference
Fuel tank25.0 LReference
Engine15.0 kWReference
Mitsubishi MLV3E3Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.1 LReference
Bore/Stroke76 x 81 mmReference
Power15.0 kWReference
Fuel systemindirect injectionReference
Rated RPM2900Reference
Torque64.0 NmReference
Torque RPM2200Reference
Firing order1-3-2Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)10.4 kWReference
Typeopen centerReference
Rear valves2Reference
Pump flow28.8 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)349 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2837Reference
Mid PTOindependentReference
Engine RPM2500@2837Reference
Dimensions
Wheelbase139 cmReference
Weight1620 to 1962 poundsReference
Weight149 kgReference
Weight321 kgReference
Lawn/turf front18x8.5-10Reference
Lawn/turf rear26x12-12Reference
Industrial front18x8.5-10Reference
Industrial rear26x12-12Reference
Length255 cmReference
Width117 cmReference
Height (ROPS)219 cmReference
Height (cab)204 cmReference
ROPS Weight734 kgReference
Cab Weight889 kgReference
Ground clearance17 cmReference
Mahindra 1120 attachments
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery CCA650Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount Mahindra M1160Reference
Type3-bladeReference
Cutting width152 cmReference
Cut height2 to 10 cmReference
Mahindra B11 Backhoe
Backhoe typeMahindra B11 BackhoeReference
Digging depth193 cmReference
2-Foot flat digging depth190 cmReference
Bucket force1045 kgReference
Dipperstick force704 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
